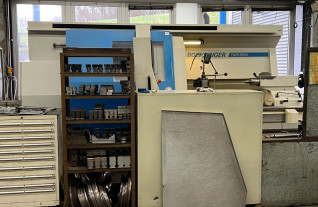

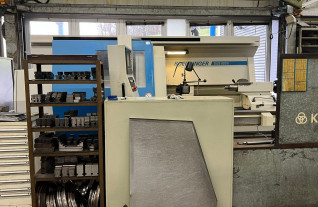

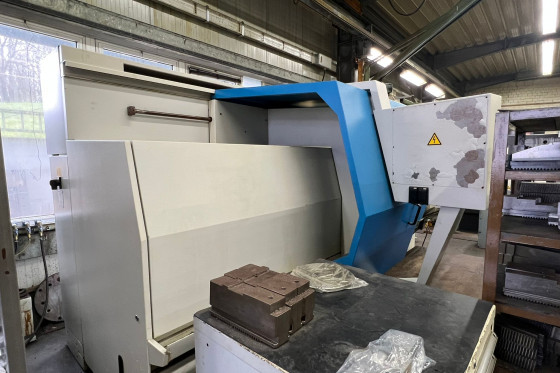

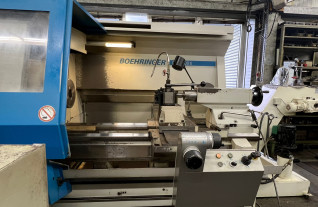

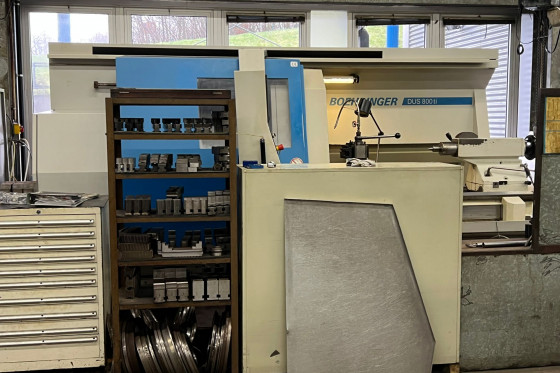

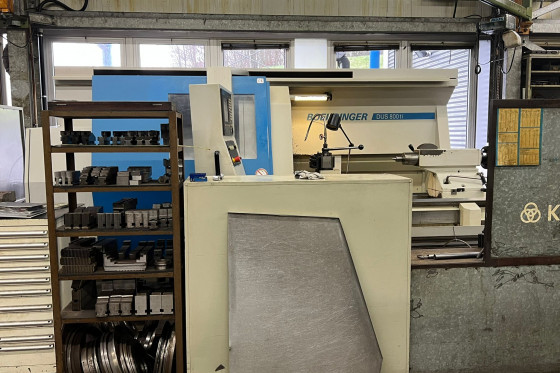

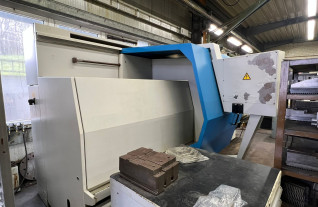

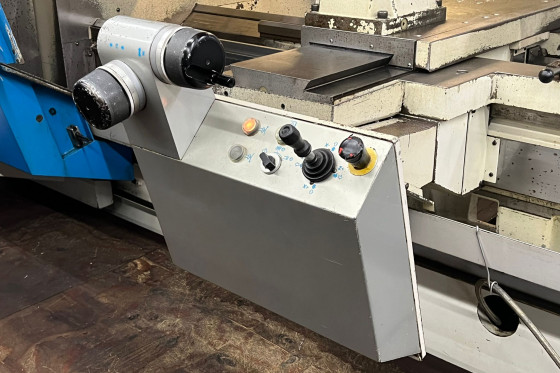

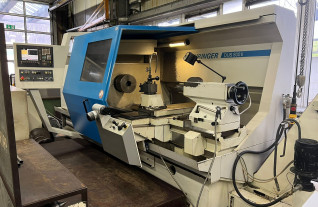

Centre lathe VDF BOEHRINGER - DUS 800 Ti
CNC Lathe Ø 820 x 1250 mm MACH-ID 6962| Make: | VDF BOEHRINGER |
| Type: | DUS 800 Ti |
| Year: | 2006 |

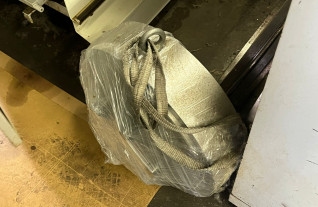

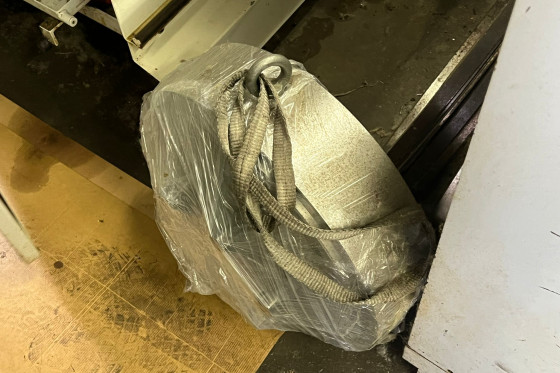

- 3 chuck 315 mm
- 3 chuck 500 mm
- Boring bar holder
- Parat tool system with 4 inserts
- One off last "Made in Goppingen" machine
- Chip conveyor
- New price EUR 152.500
Specifications
DBC Turning Length
1250 mm
49.213 inch
Swing over bed Ø
820 mm
32.283 inch
Swing over cross slide Ø
515 mm
20.276 inch
Spindle bore
128 mm
5.039 inch

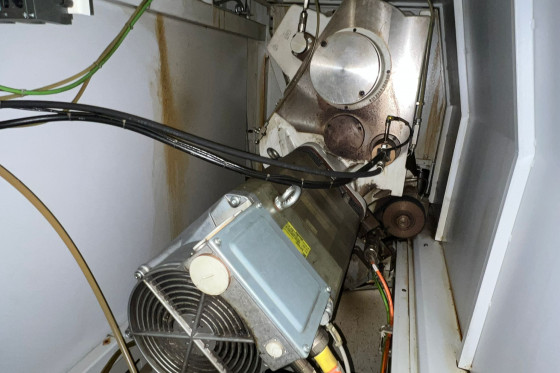

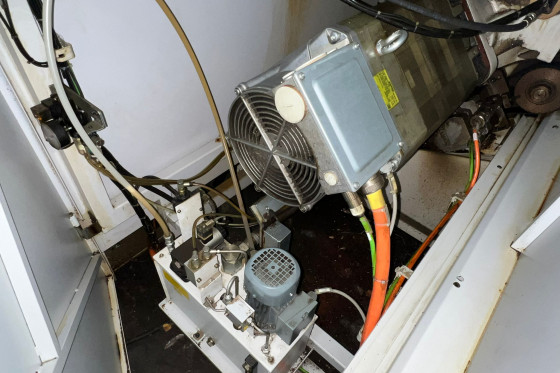

Spindle power
46 kW
46 kW

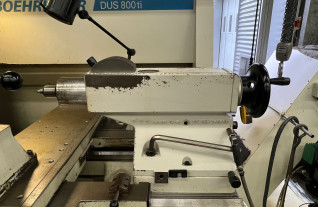

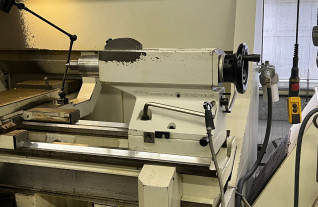

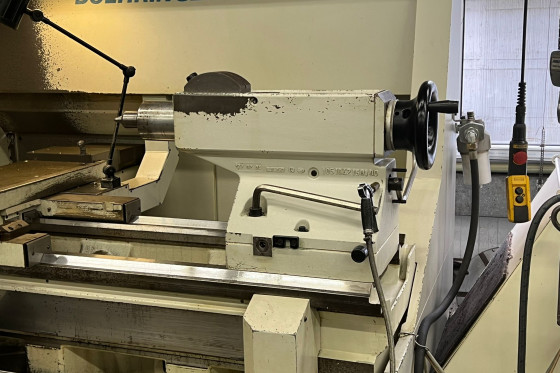

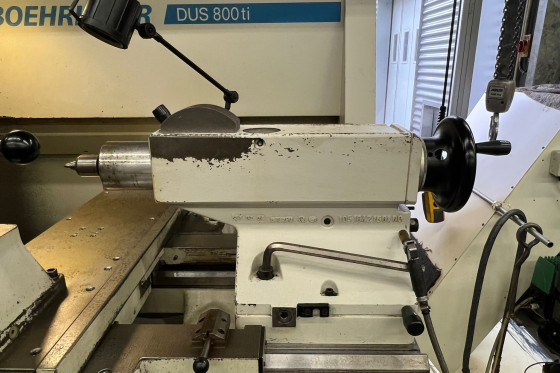

Tailstock spindle Ø
125 Ø
125 Ø
Stroke pinole
280 mm
11.024 inch
Spindle taper
6 Mk
6 Mk
Speeds / ranges
1600 Rpm
1600 Rpm
Feed rate X-Axis
12500 mm/min.
12500 mm/min.
Feed rate Z-Axis
20000 mm/min.
20000 mm/min.
Dimensions (Estimate)
Length
5000 mm
196.85 inch
Width
2755 mm
108.464 inch
Height
2285 mm
89.96 inch
Weight
8000 kg
17645 lbs
