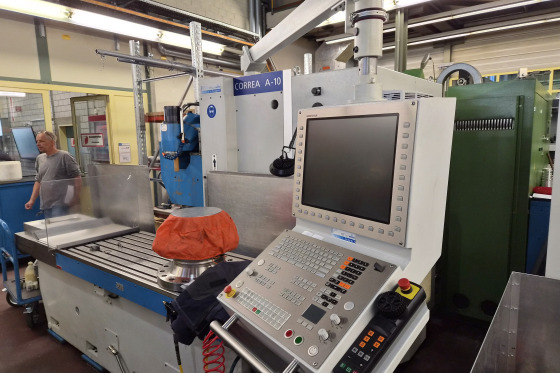

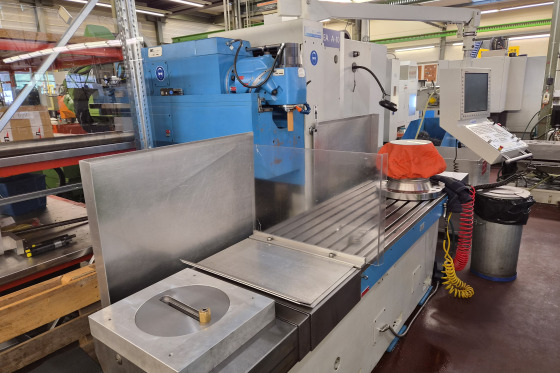

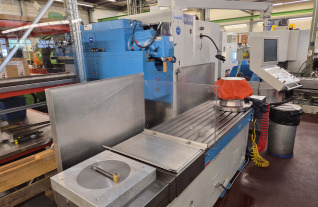

CNC Bed-Type Milling Machine CORREA - A-10
MACH-ID 9785| Make: | CORREA |
| Type: | A-10 |
| Control: | HeidenHain iTNC 530 |
| Year: | 2013 |

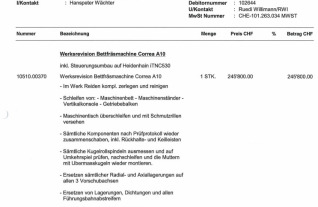

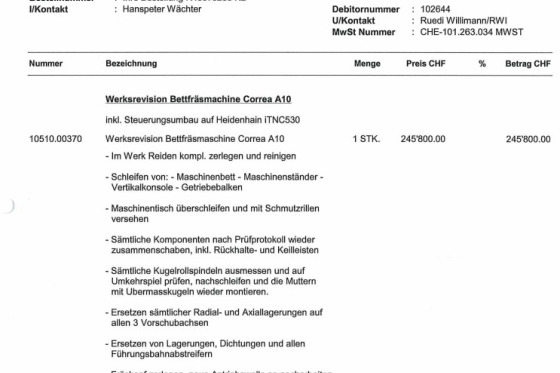

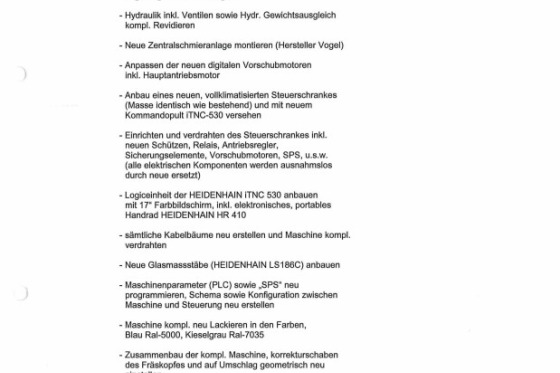

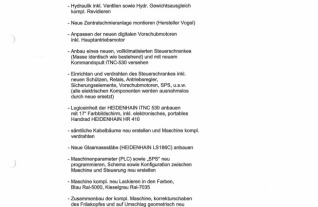

- 2013 Overhauled by REIDEN SWISS
- New regrinded
- New iTNC530
- New Hr410 Handwheel
- New CE-Safety
- New Milling head gears and bearing
- New LS186C Glas scales
- New Blum TC60 3D taster

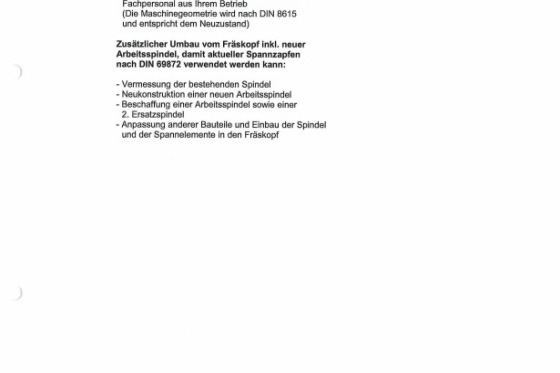

- Geomtrical DIN 8615 !
- Overhauling cost CHF 250k
Specifications
X-Axis
1300 mm
51.181 inch
Y-Axis
630 mm
24.803 inch
Z-Axis
630 mm
24.803 inch
Table Length
1700 mm
66.929 inch
Table Width
630 mm
24.803 inch
Table load
3000
3000
Power on spindle
16 kW
16 kW
Spindle speeds
3150 Rpm
3150 Rpm
Spindle Taper
50 ISO/Bt/Mk
50 ISO/Bt/Mk
Feed rate X-Axis
8000 mm/min.
8000 mm/min.
Feed rate Y-Axis
8000 mm/min.
8000 mm/min.
Feed rate Z-Axis
8000 mm/min.
8000 mm/min.
Dimensions (Estimate)
Length
4700 mm
185.039 inch
Width
2300 mm
90.551 inch
Height
2300 mm
90.551 inch
Weight
6000 kg
13233.7 lbs
