This machine is sold

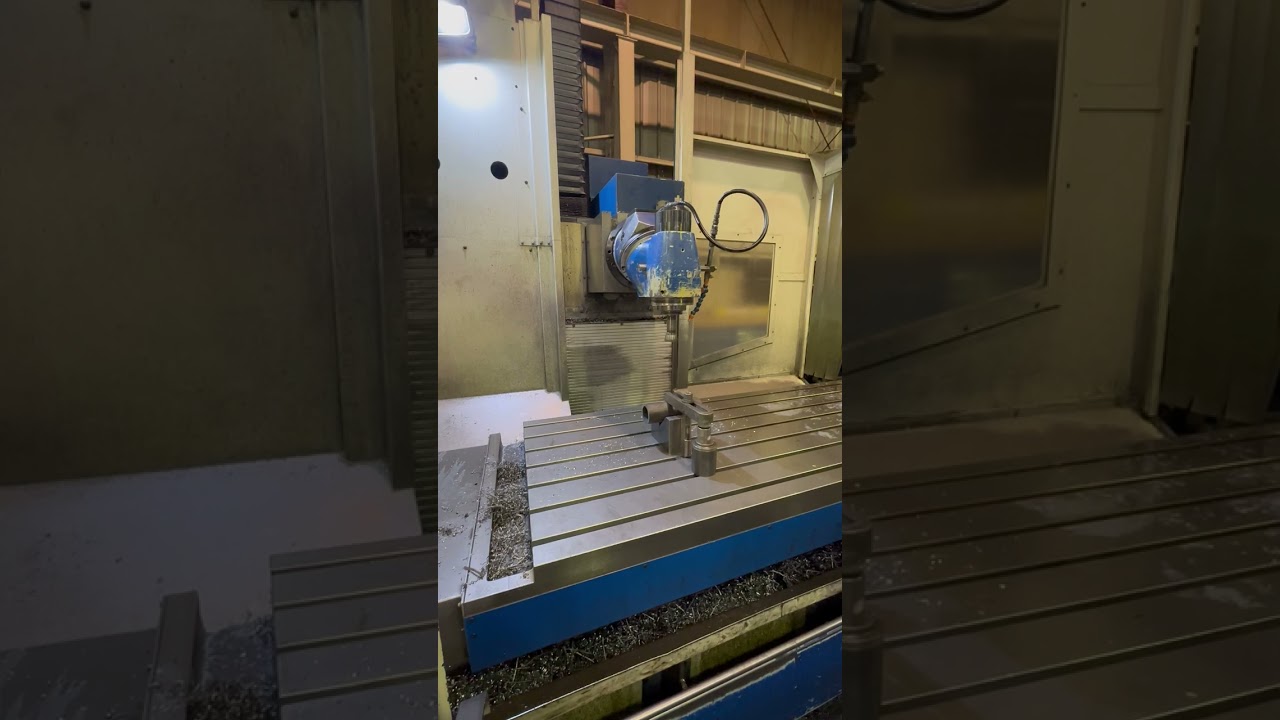

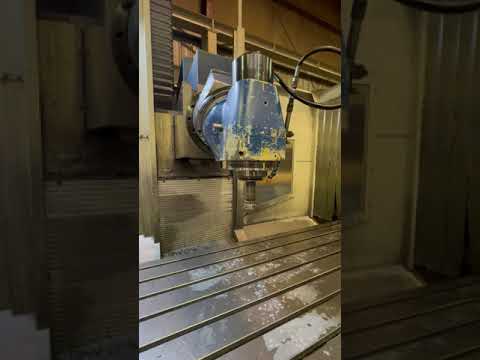

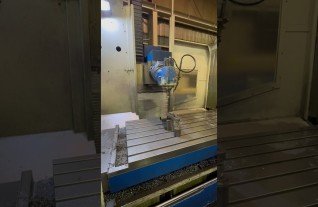

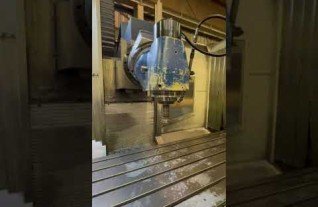

CNC Bed-Type Milling Machine MTE - BF 4200
MACH-ID 7499| Make: | MTE |
| Type: | BF 4200 |
| Control: | HeidenHain iTNC530 |
| Year: | 2008 |

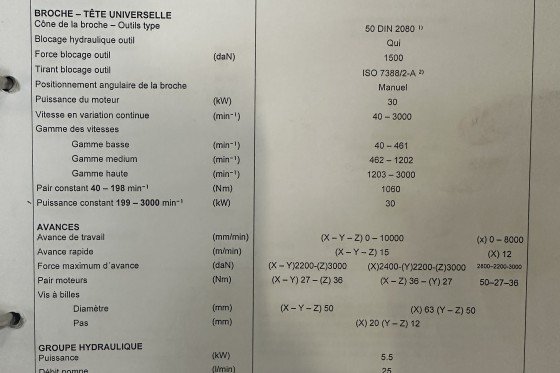

Specifications
X-Axis
4000 mm
157.48 inch
Y-Axis
1000 mm
39.37 inch
Z-Axis
1500 mm
59.055 inch
Table Length
4200 mm
165.354 inch
Table Width
1000 mm
39.37 inch
Table load
13000
13000
Power on spindle
30 kW
30 kW
Spindle speeds
3000 Rpm
3000 Rpm
Spindle Taper
50 ISO/Bt/Mk
50 ISO/Bt/Mk
Feed rate X-Axis
10000 mm/min.
10000 mm/min.
Feed rate Y-Axis
10000 mm/min.
10000 mm/min.
Feed rate Z-Axis
10000 mm/min.
10000 mm/min.
Millinghead auto-index
2.5 x 2.5 °
2.5 x 2.5 °
Working hours
14385 H
14385 H
Dimensions (Estimate)
Length
10000 mm
393.7 inch
Width
4100 mm
161.417 inch
Height
3450 mm
135.827 inch

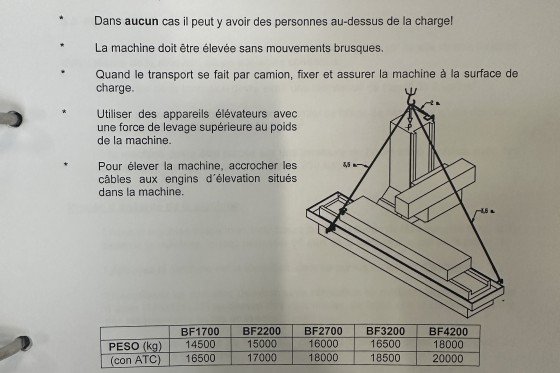

Weight
18000 kg
39701.2 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
