This machine is sold

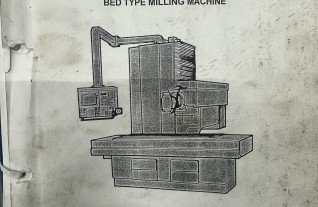

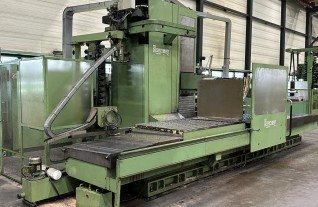

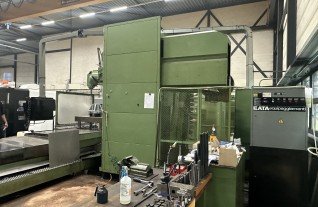

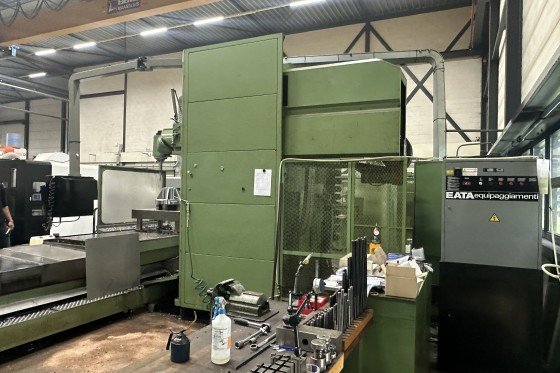

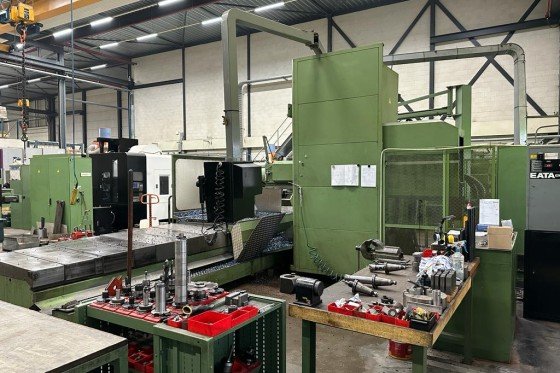

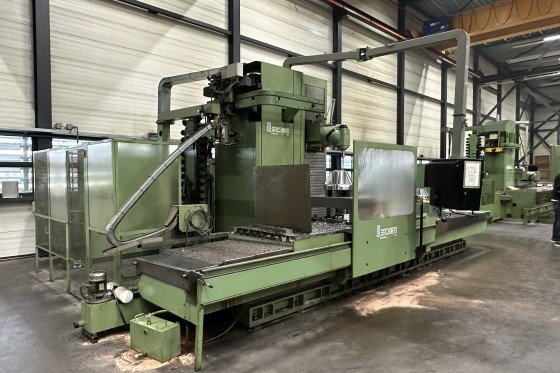

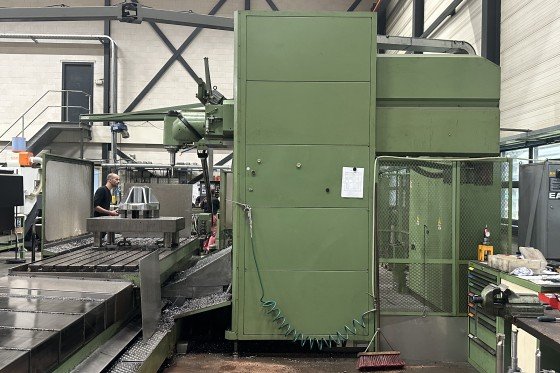

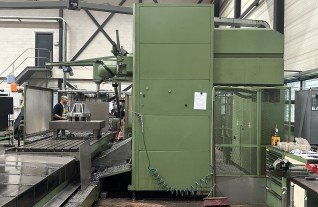

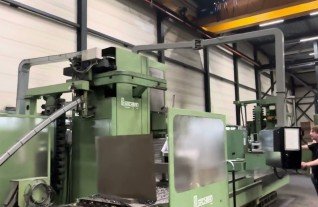

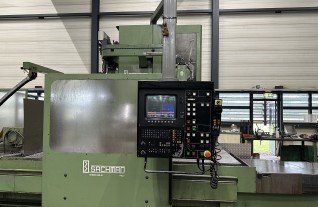

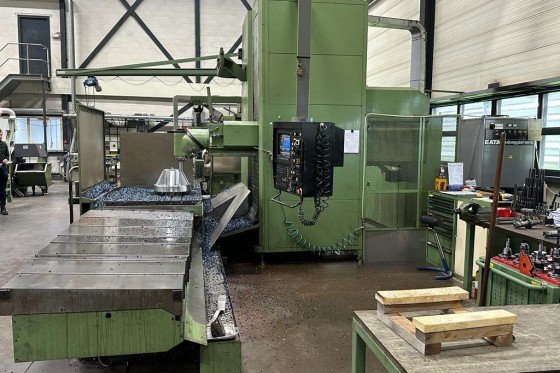

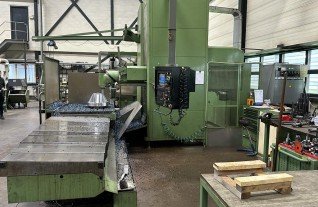

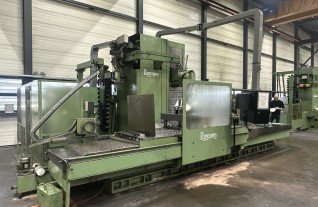

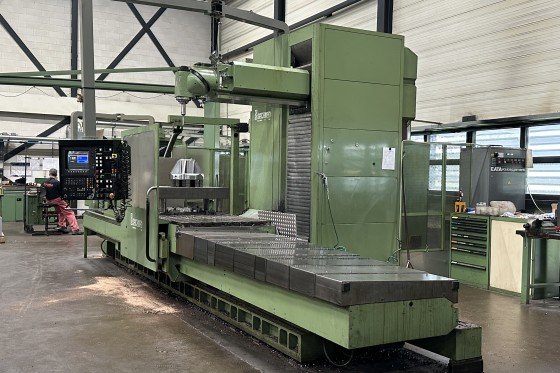

CNC Bed-Type Milling Machine Sachman - BS 110

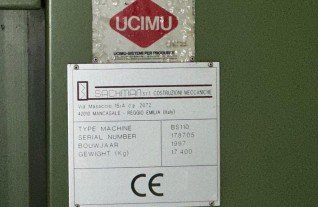

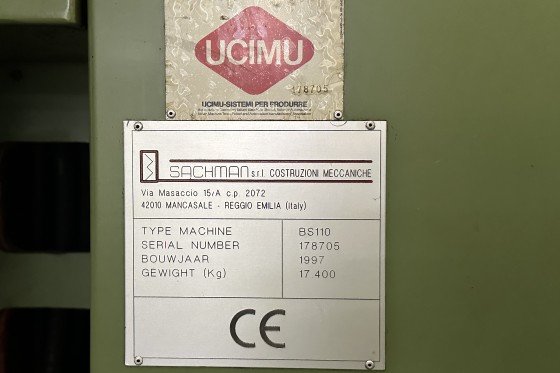

MACH-ID 7645| Make: | Sachman |
| Type: | BS 110 |

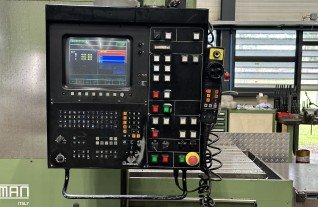

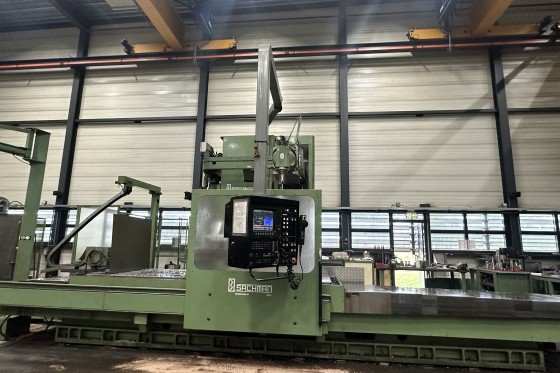

| Control: | HeidenHain TNC 426 |
| Year: | 1998 |

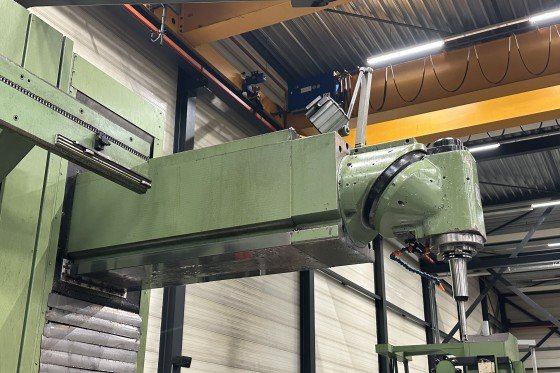

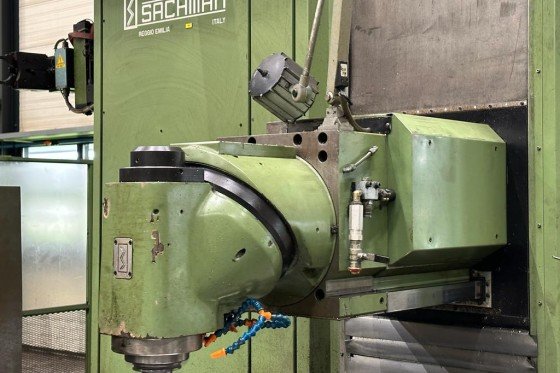

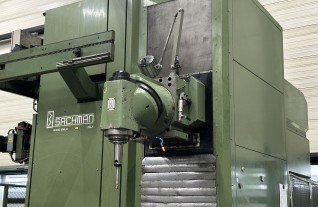

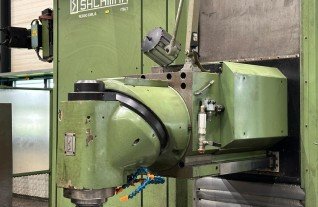

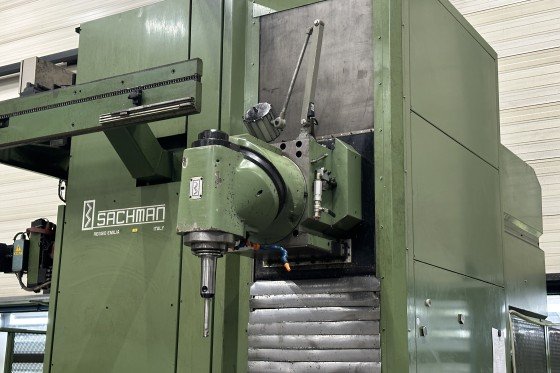

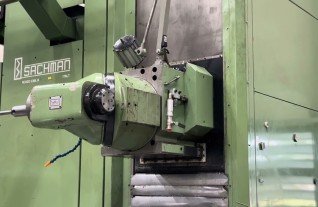

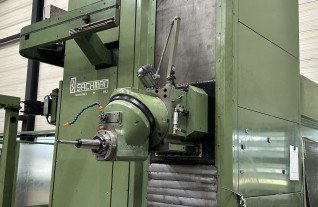

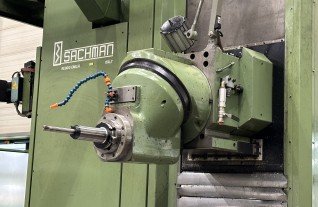

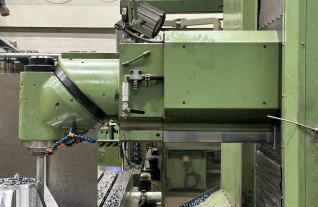

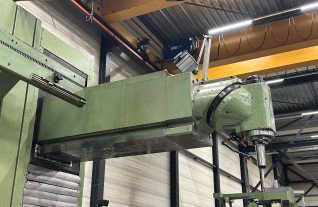

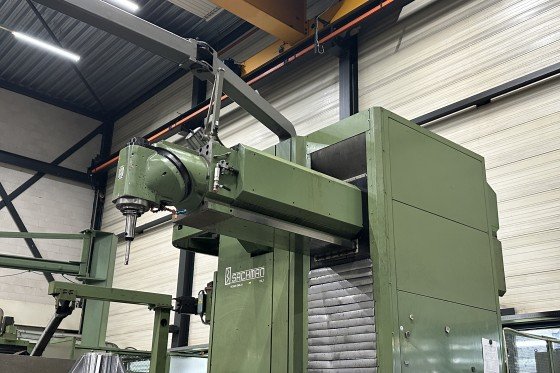

- COSMO 4000 automatic head over CNC 2.5 Gr

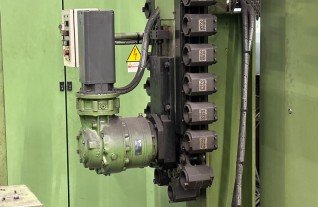

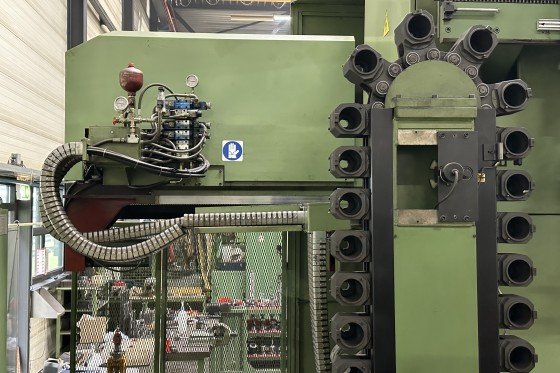

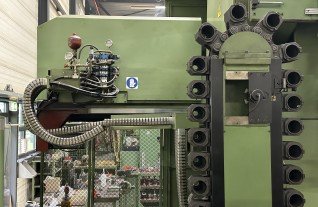

- ATC Chain tool changer 30 positions
- With head Rotate Z Axis 1900 mm ( normal 1500 mm)
- HeidenHain HR-410 Handwheel
- Under power inspection possible any time !

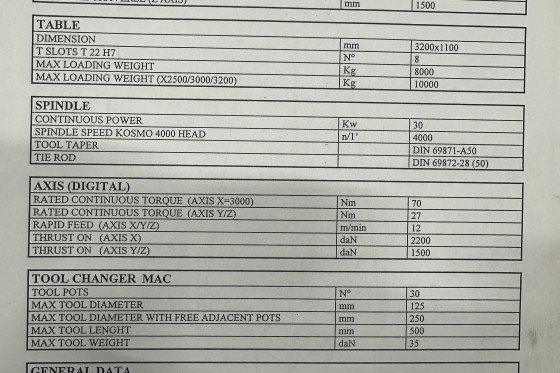

Specifications
X-Axis
3000 mm
118.11 inch
Y-Axis
1100 mm
43.307 inch
Z-Axis
1500 mm
59.055 inch

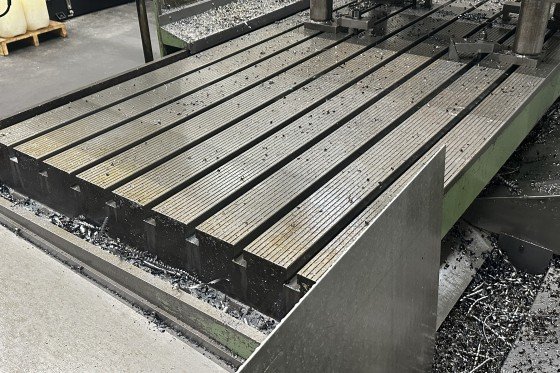

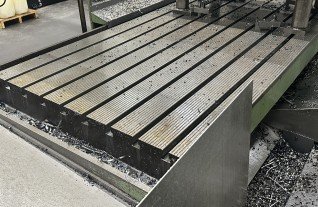

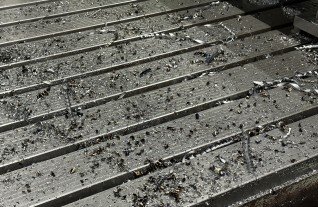

Table Length
3200 mm
125.984 inch
Table Width
1100 mm
43.307 inch
Table load
10000
10000
Power on spindle
30 kW
30 kW
Spindle speeds
4000 Rpm
4000 Rpm

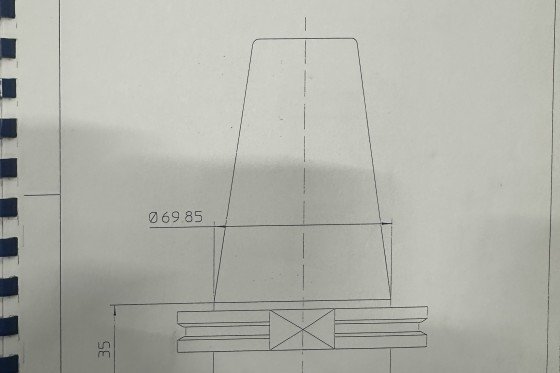

Spindle Taper
50 ISO/Bt/Mk
50 ISO/Bt/Mk
Feed rate X-Axis
12000 mm/min.
12000 mm/min.
Feed rate Y-Axis
12000 mm/min.
12000 mm/min.
Feed rate Z-Axis
12000 mm/min.
12000 mm/min.
Millinghead auto-index
KOSMO 4000 °
KOSMO 4000 °
Working hours
13500 H
13500 H

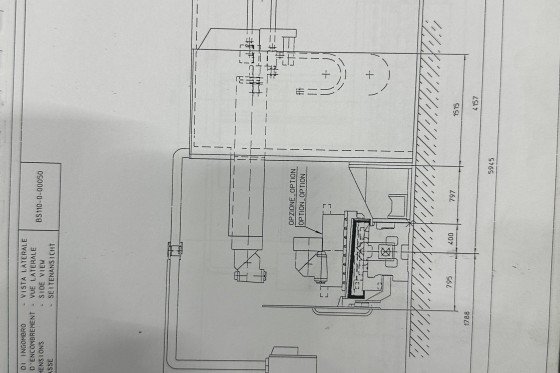

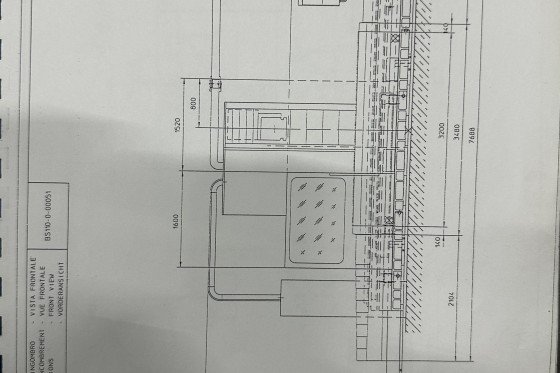

Dimensions (Estimate)
Length
7688 mm
302.677 inch
Width
4157 mm
163.661 inch
Height
3597 mm
141.614 inch
Weight
17400 kg
38377.8 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
