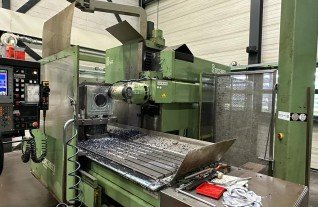

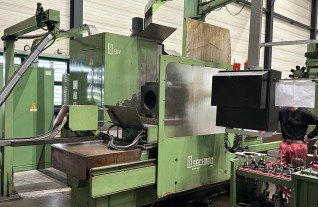

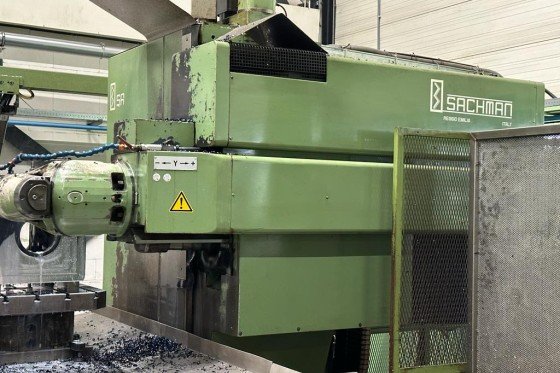

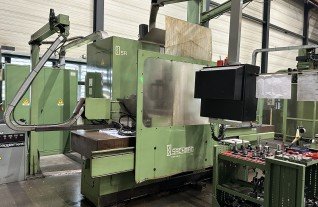

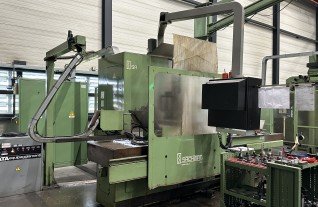

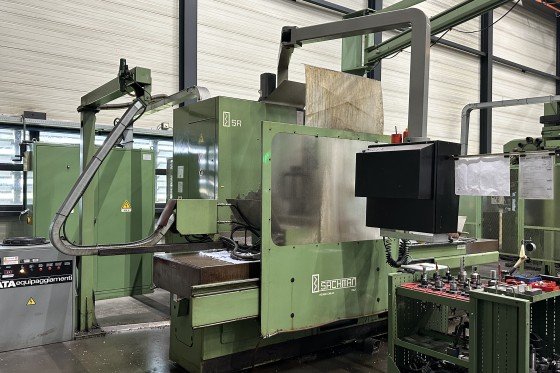

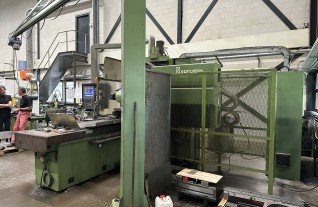

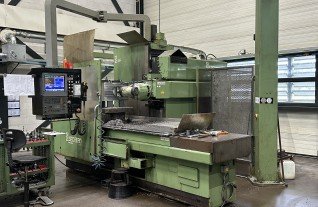

CNC Bed-Type Milling Machine Sachman - RP3

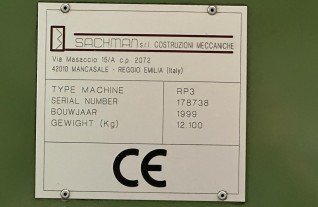

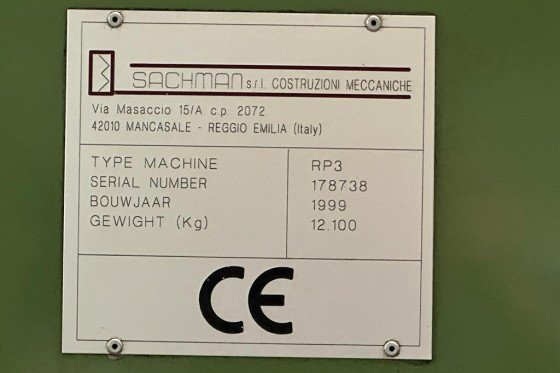

MACH-ID 7644| Make: | Sachman |
| Type: | RP3 |

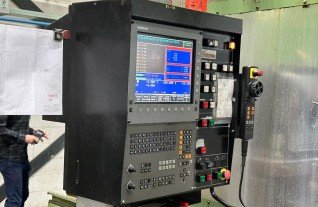

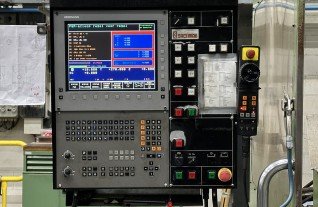

| Control: | HeidenHain TNC430 |
| Year: | 1999 |

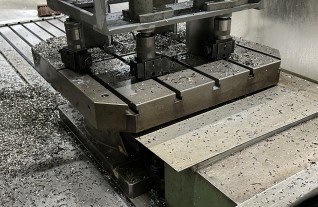

- Taboni 4e axis 630 x 630 with 18.000 Positions
- Z Axis 1271 mm with rotated head

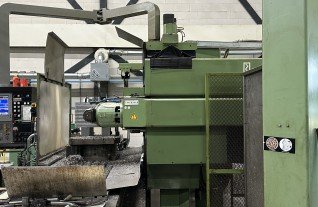

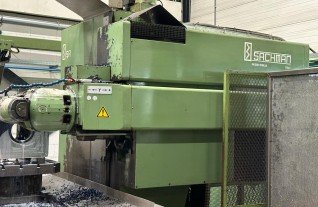

- Universal milling head TVK4
- Heidenhain HR-410 handwheel
- Chip conveyor
- Under power inspection possible any time !
Specifications
X-Axis
2500 mm
98.425 inch
Y-Axis
815 mm
32.087 inch
Z-Axis
1037 mm
40.827 inch
Table Length
2700 mm
106.299 inch
Table Width
730 mm
28.74 inch
Table load
4000
4000
Power on spindle
15 kW
15 kW
Spindle speeds
4000 Rpm
4000 Rpm
Spindle Taper
Bt50 ISO/Bt/Mk
Bt50 ISO/Bt/Mk
Feed rate X-Axis
10000 mm/min.
10000 mm/min.
Feed rate Y-Axis
10000 mm/min.
10000 mm/min.
Feed rate Z-Axis
10000 mm/min.
10000 mm/min.
Millinghead auto-index
Universal Milling head °
Universal Milling head °
Working hours
16000 H
16000 H
Dimensions (Estimate)
Length
0 mm
0 inch
Width
0 mm
0 inch
Height
0 mm
0 inch
Weight
0 kg
0 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
