This machine is sold

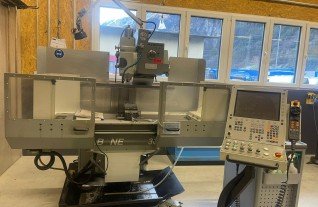

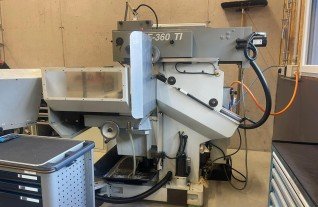

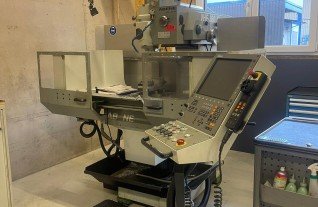

CNC milling machine ABA - VHF-360 Ti
MACH-ID 8624| Make: | ABA |
| Type: | VHF-360 Ti |
| Control: | Heidenhain TNC 320 |
| Year: | 2008 |
- Vertical Milling
- Horizontal Milling
- Hardned and ground guide ways in all axes
- Heidnehain Scales in all 3 axes
- Ballscrews in all 3 axes
- Mechanical & Electronical Handwheel
- All in one machine:
- 1. Combined manual
- 2. CNC with easy pre-programmed Cycles
- 3. Full CNC Machining 3-Axis
Specifications
X-Axis
650 mm
25.591 inch
Y-Axis
500 mm
19.685 inch
Z-Axis
475 mm
18.701 inch
Table Length
1530 mm
60.236 inch
Table Width
450 mm
17.717 inch
Table load
350
350
Spindle speeds
4000 Rpm
4000 Rpm
Feed rate X-Axis
6000 mm/min.
6000 mm/min.
Feed rate Y-Axis
6000 mm/min.
6000 mm/min.
Feed rate Z-Axis
3000 mm/min.
3000 mm/min.
Stroke pinole
75 mm
2.953 inch
Dimensions (Estimate)
Length
2200 mm
86.614 inch
Width
1800 mm
70.866 inch
Height
2200 mm
86.614 inch
Weight
2550 kg
5624.3 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
