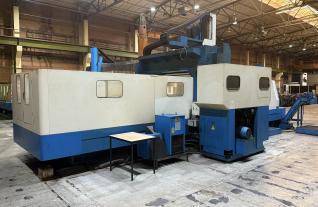

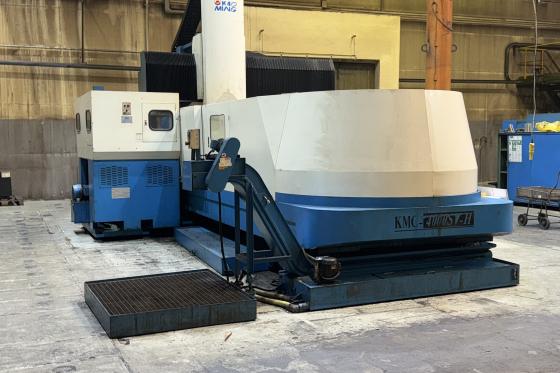

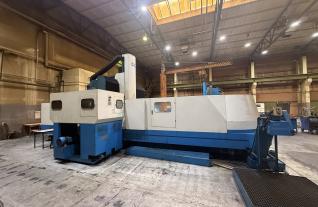

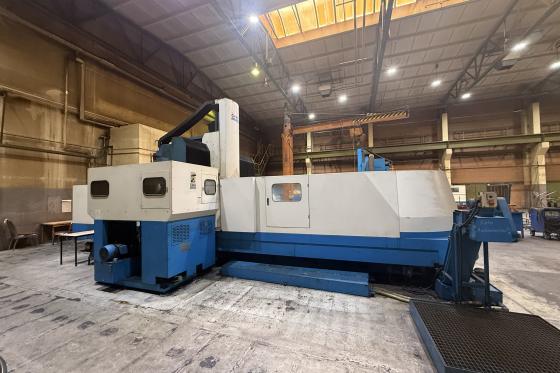

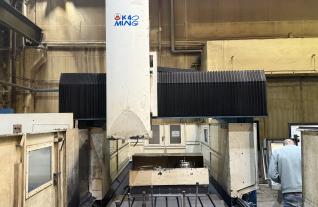

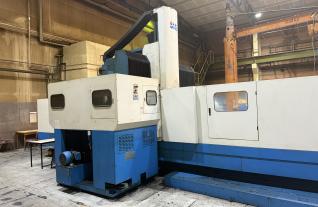

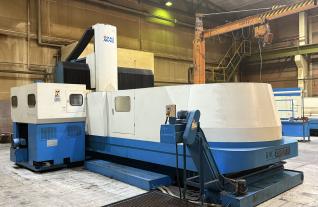

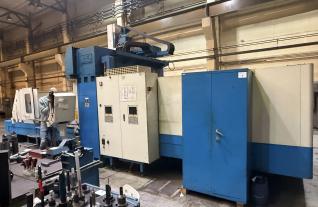

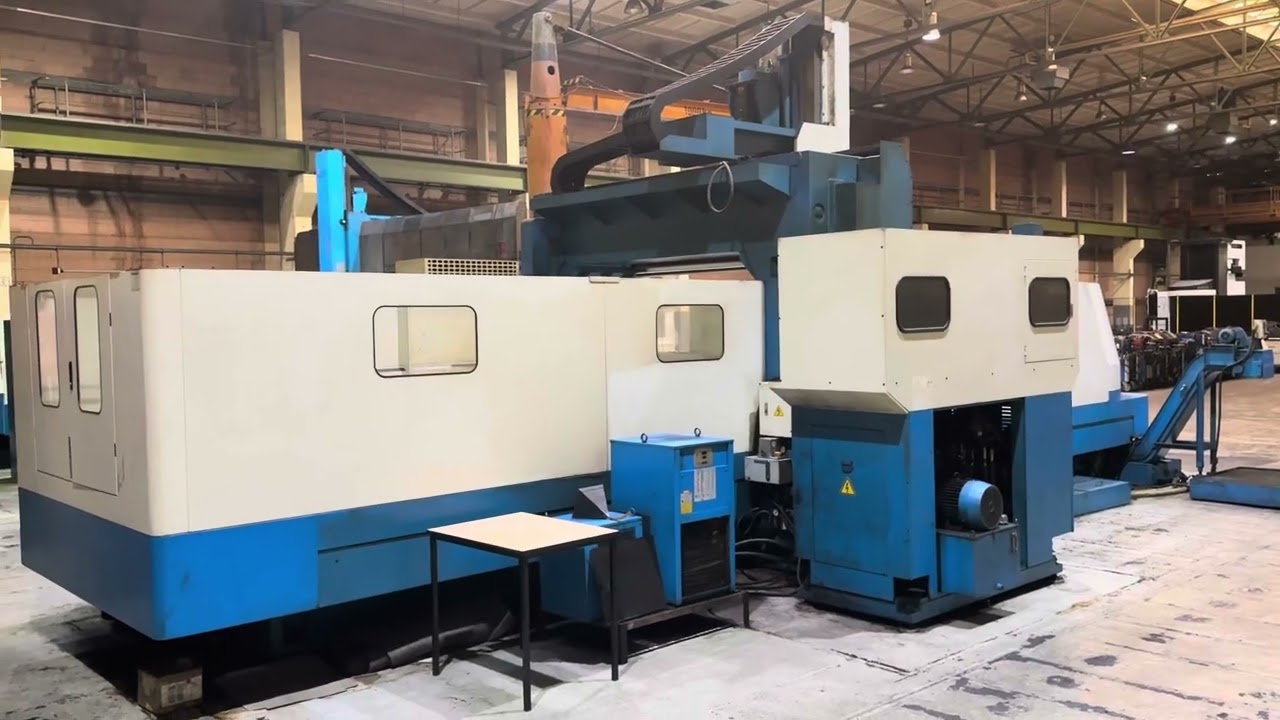

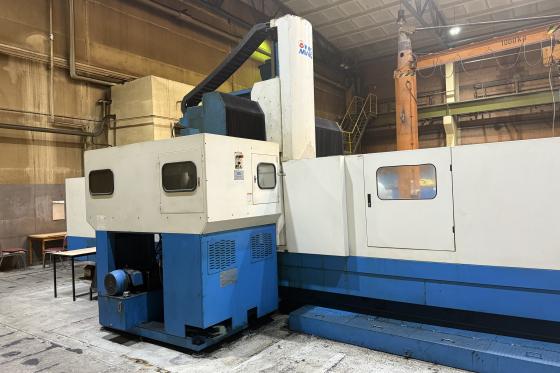

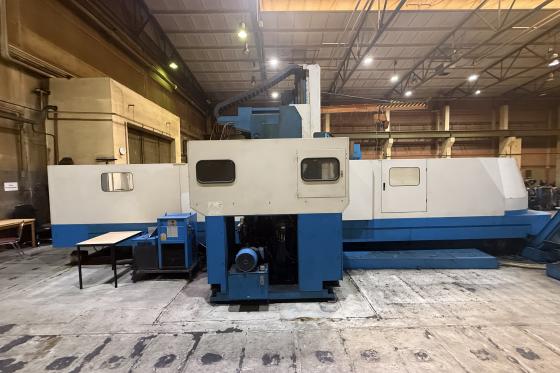

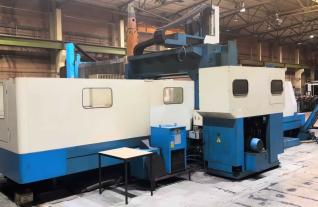

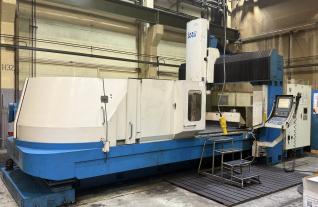

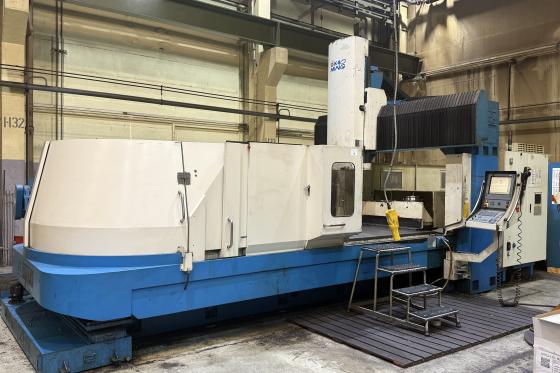

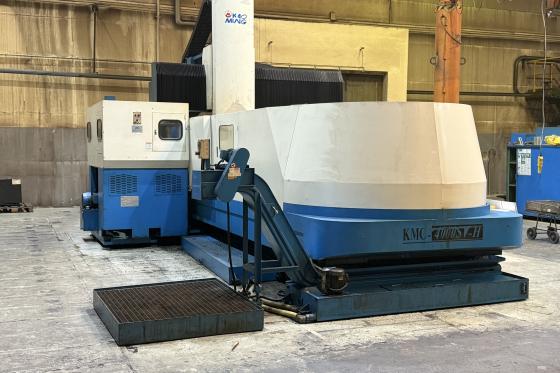

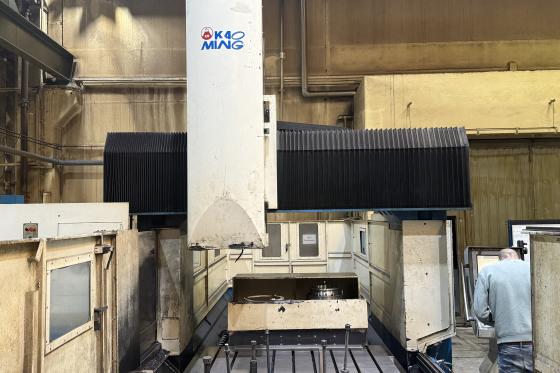

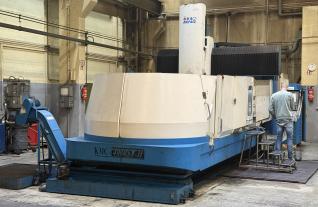

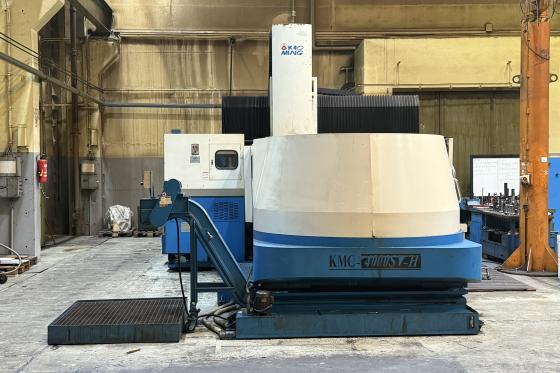

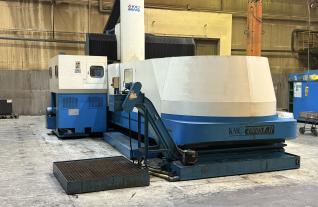

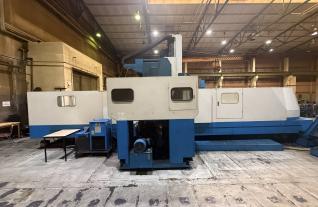

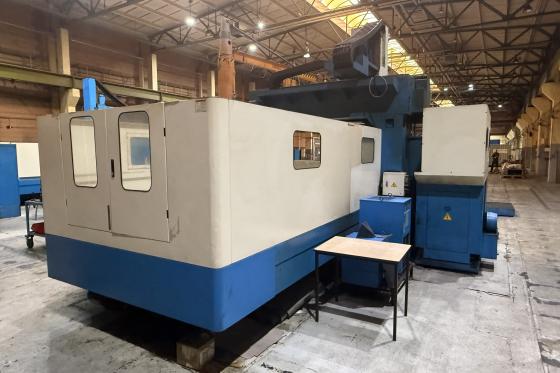

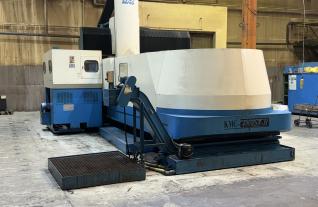

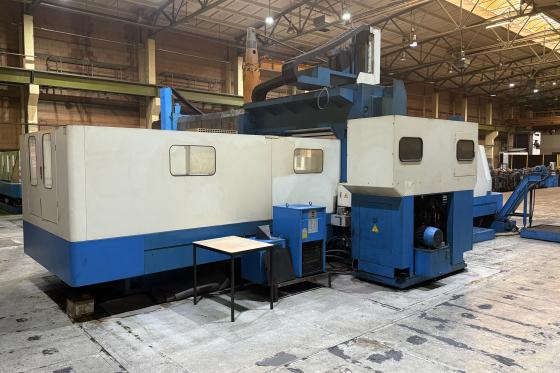

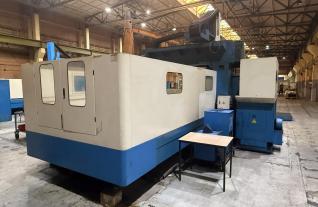

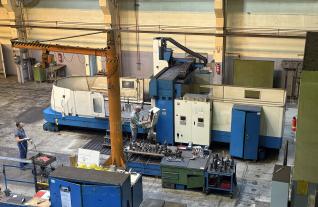

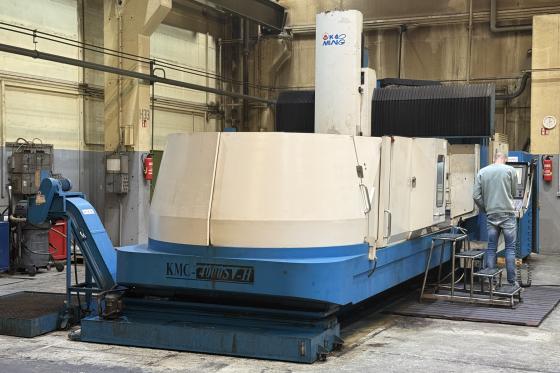

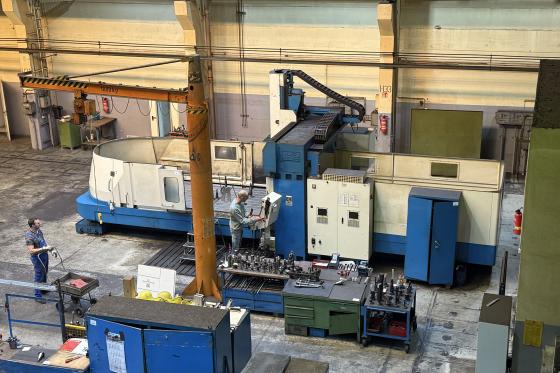

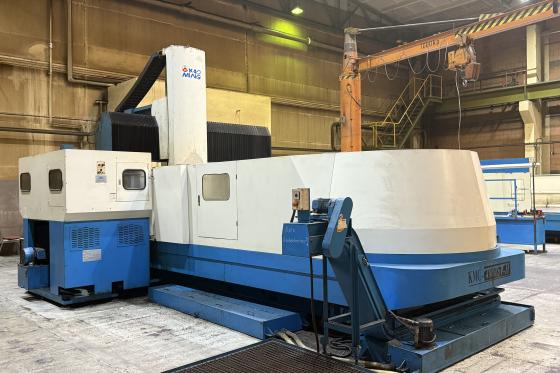

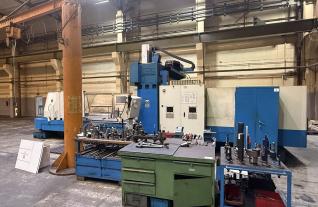

Portal milling machine KAO MING - KMC 4000 SV-H

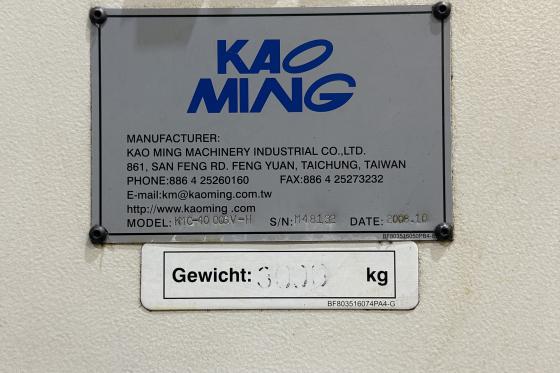

MACH-ID 9255| Make: | KAO MING |

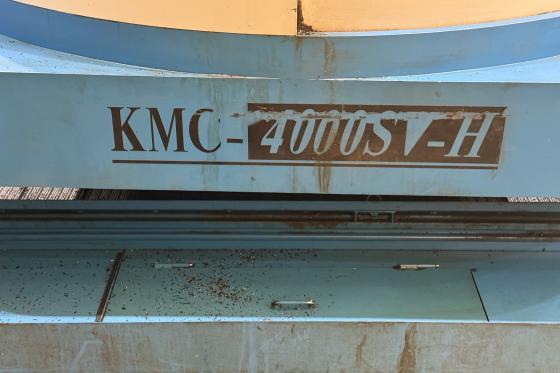

| Type: | KMC 4000 SV-H |
| Control: | HeidenHain iTNC530 |
| Year: | 2008 |
- Double guideway two box way construction

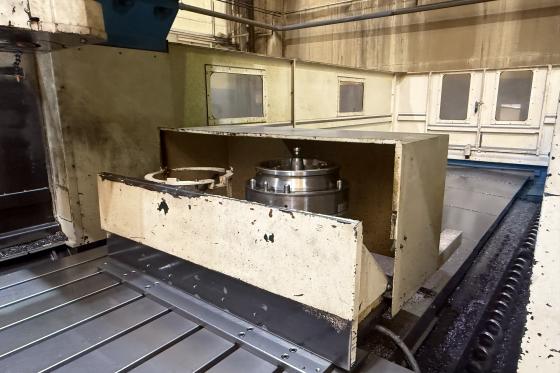

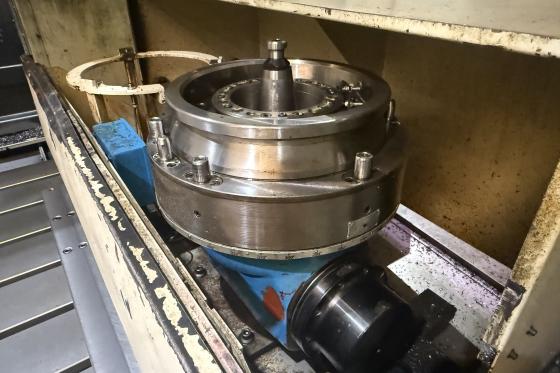

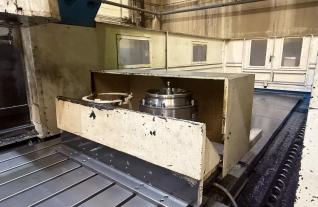

- Head changer for Multi-Face machining off larger compontents

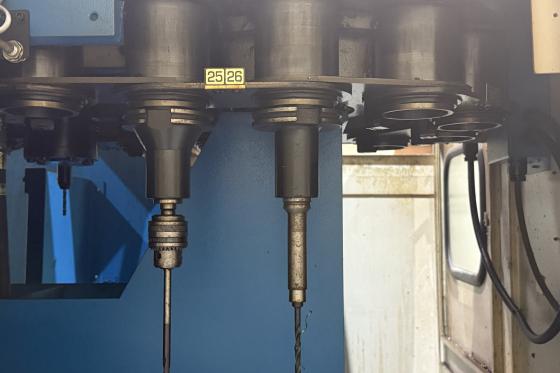

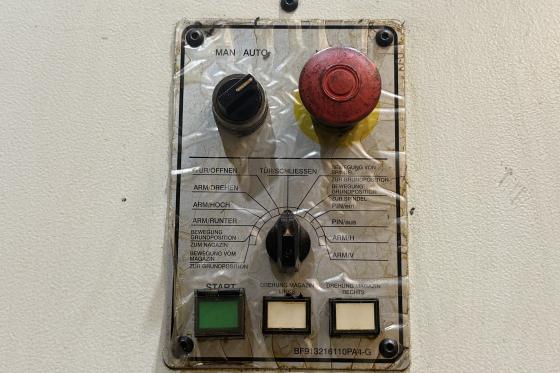

- ATC tool changer for Horizontal and vertical milling head swivabel

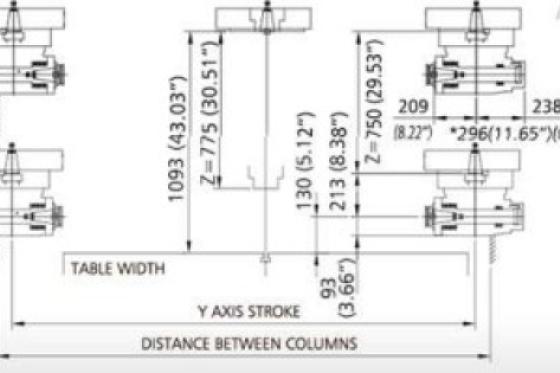

- Distance table spindle nose 213 - 1093 mm
- Distance table spindle center 130 - ...mm
- Indexing Horizontal head 5 Degrees x 72 positions

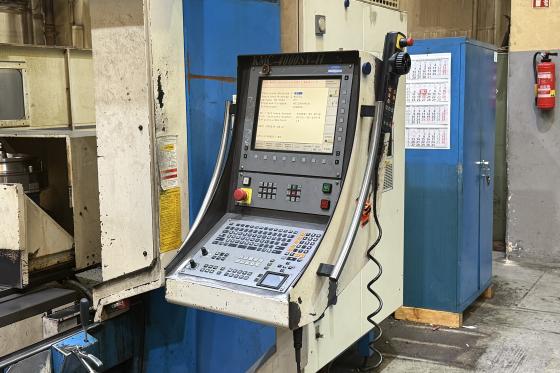

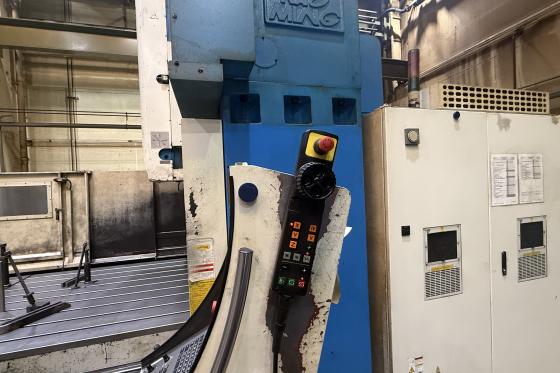

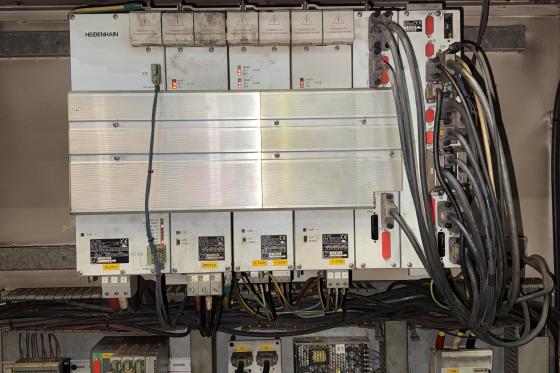

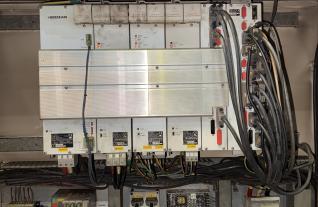

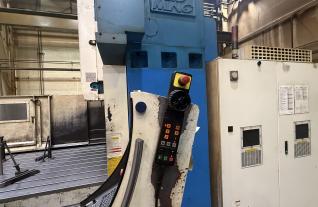

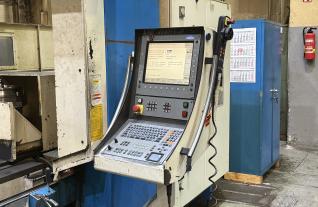

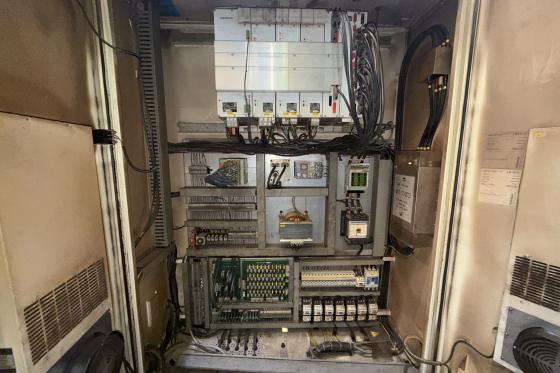

- HeidenHain iTNC530 with HR410 handwheel
- Spindle torq 1018 Nm ISO50

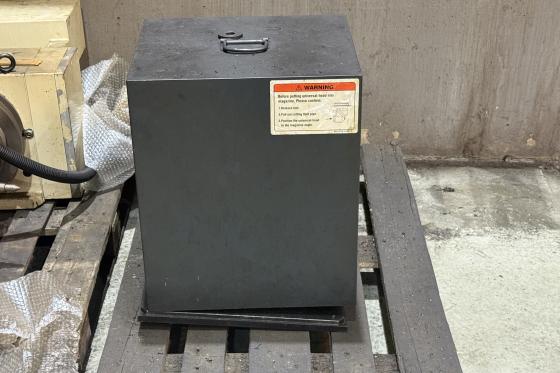

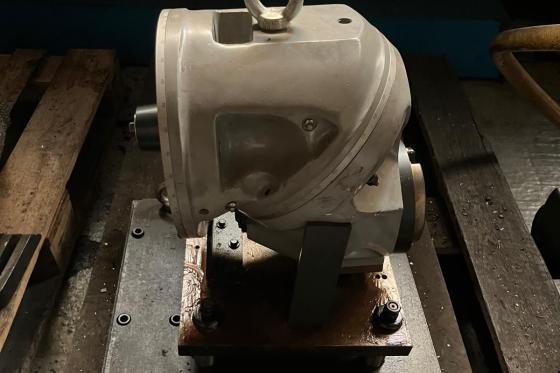

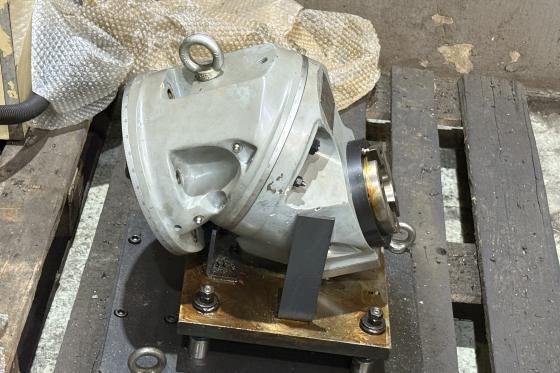

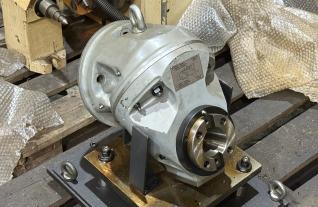

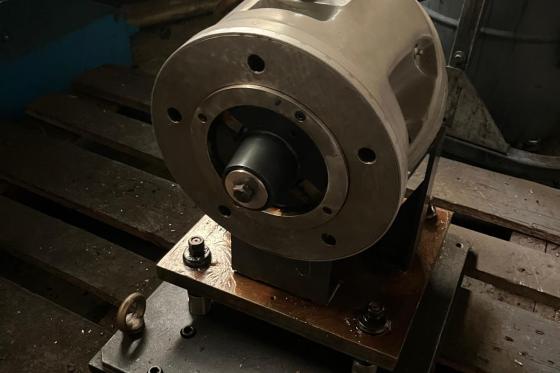

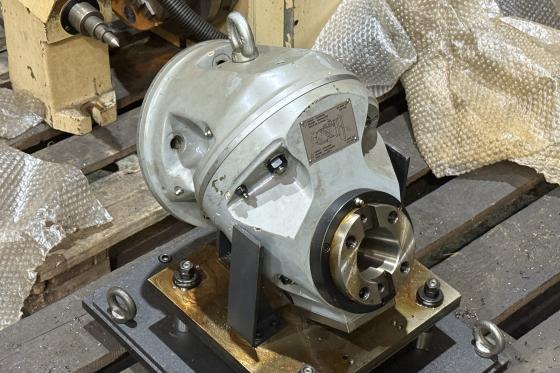

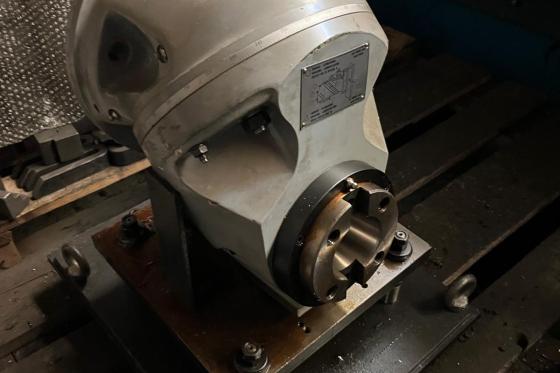

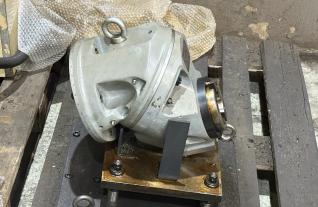

- Universal Huron type milling head
Specifications
X - Travel
4230 mm
166.535 inch
Y - Travel
2000 mm
78.74 inch
Z - Travel
750 mm
29.528 inch
Distance between column
2100 mm
82.677 inch

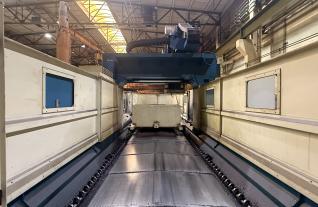

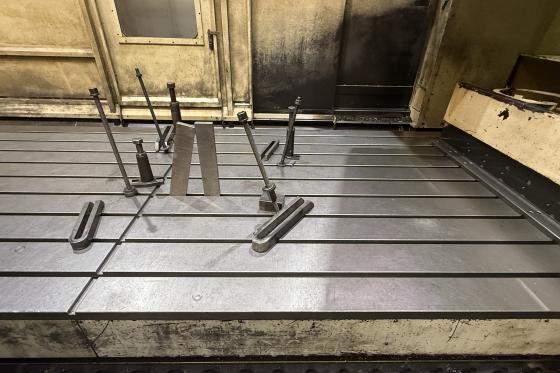

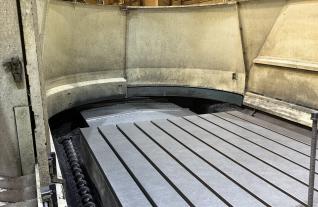

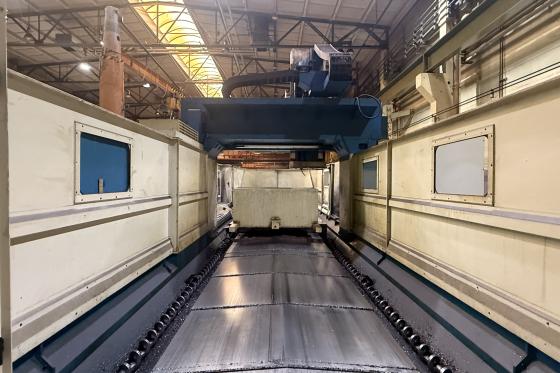

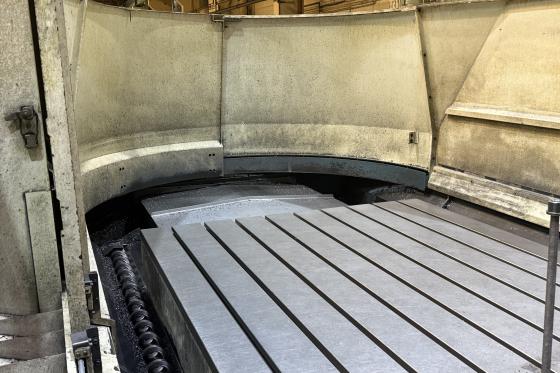

Table Length
4000 mm
157.48 inch
Table Width
1600 mm
62.992 inch
Table load
11000
11000
Feed rate X-Axis
12000 mm/min.
12000 mm/min.
Feed rate Y-Axis
15000 mm/min.
15000 mm/min.
Feed rate Z-Axis
12000 mm/min.
12000 mm/min.
Spindle Taper
50 ISO/Bt/Mk
50 ISO/Bt/Mk
Power on spindle
26 kW
26 kW
Speeds / ranges
4400 Rpm
4400 Rpm
ATC / revolver
30
30
Chip conveyor
Yes
Yes
Coolantsystem
Yes
Yes

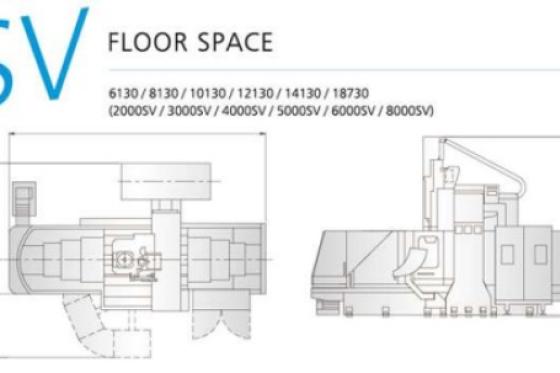

Dimensions (Estimate)
Length
10100 mm
397.637 inch
Width
4500 mm
177.165 inch
Height
4250 mm
167.323 inch
Weight
30000 kg
66168.6 lbs
