This machine is reserved

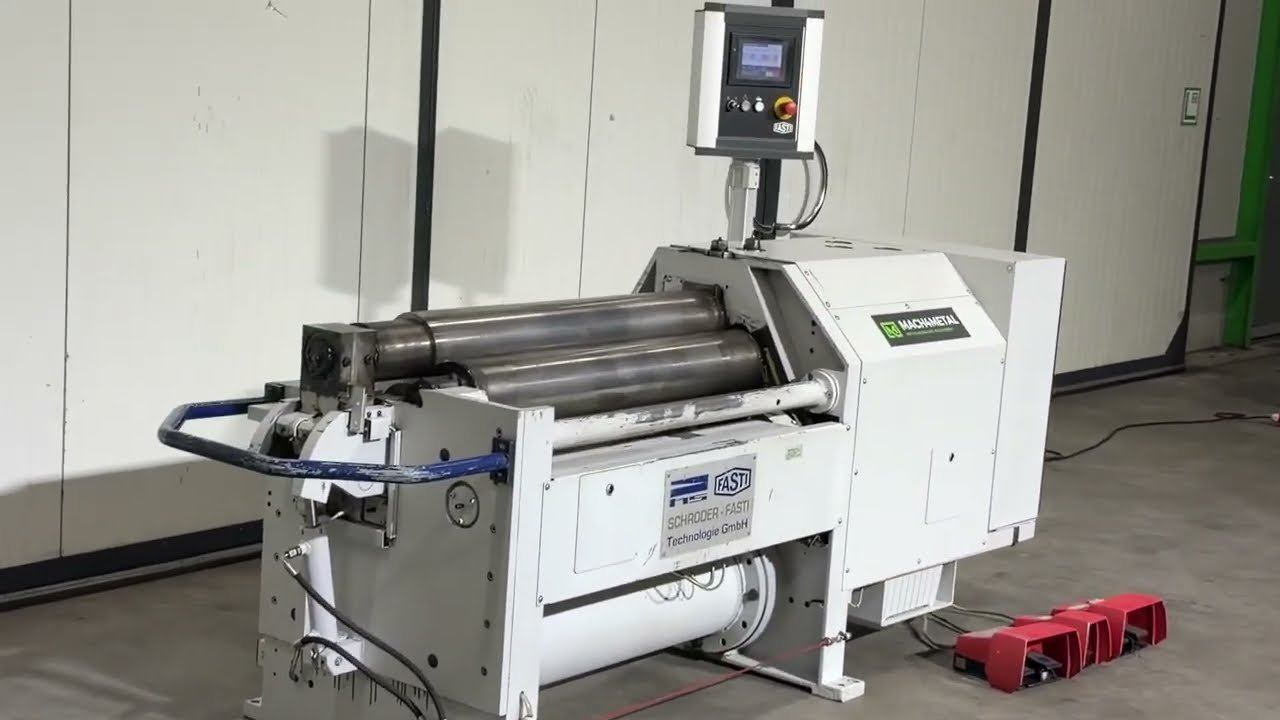

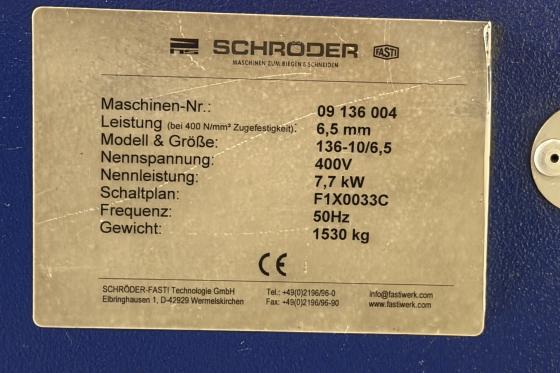

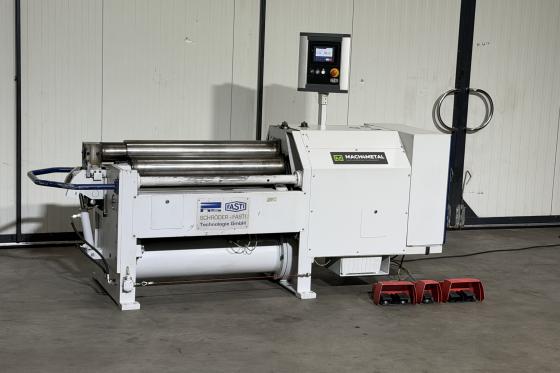

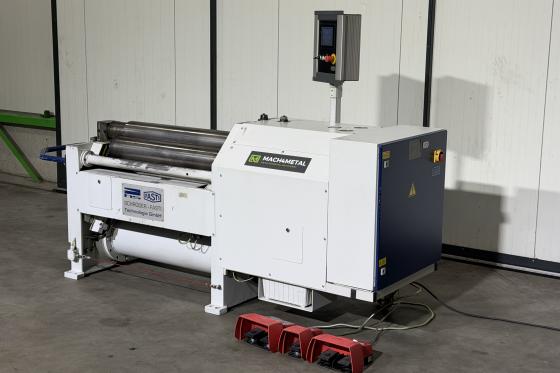

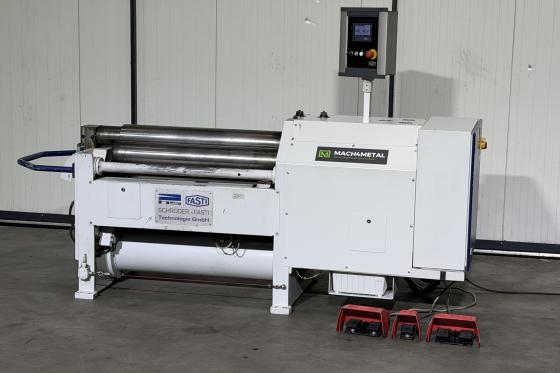

3 roll plate bender SCHRODER FASTI - 136 10/6,5

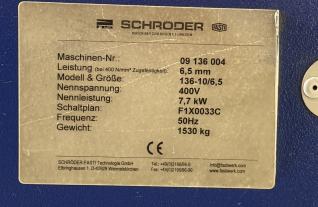

MACH-ID 9342| Make: | SCHRODER FASTI |
| Type: | 136 10/6,5 |
| Control: | CR 80 SPS |
| Year: | 2001 |
1.851,0 kg
CO2
will be saved when purchasing this machine
This is equivalent to:
0,93
return flights from Amst - New York
9.255,00
kilometers with a diesel car
2.057,00
kilometers with a truck
0,05
new-build houses

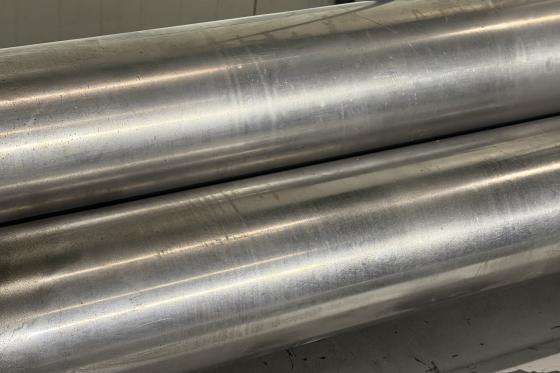

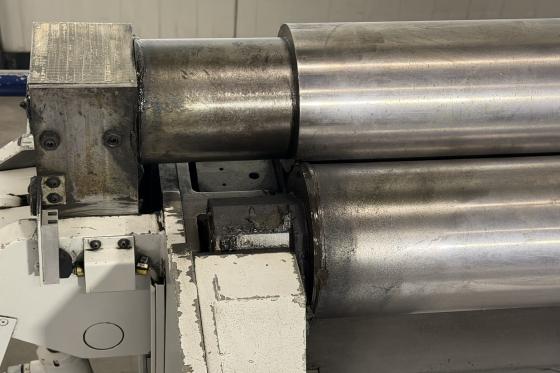

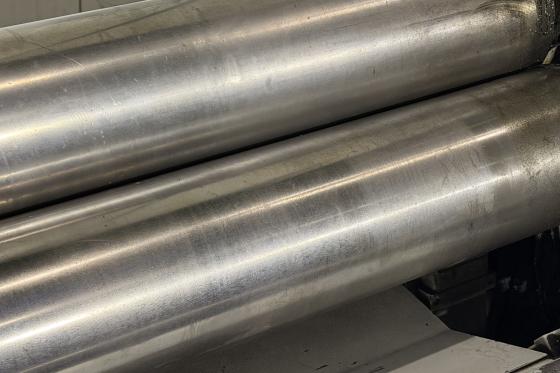

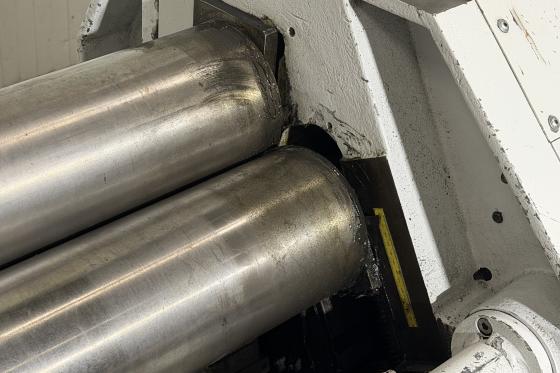

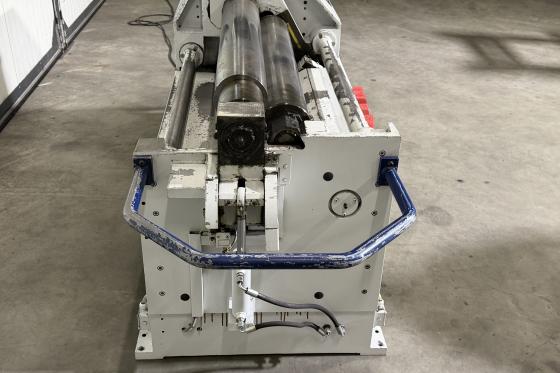

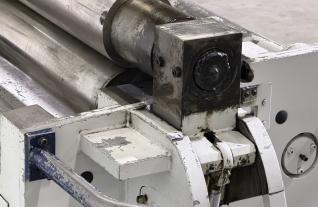

- Harned rolls
- Minimum work piece diameter 200 mm
- Rolling 1,25 x top roll diameter
- Top and Bottem roll Driven
- Rolls 700 N/mm2 tensile strength

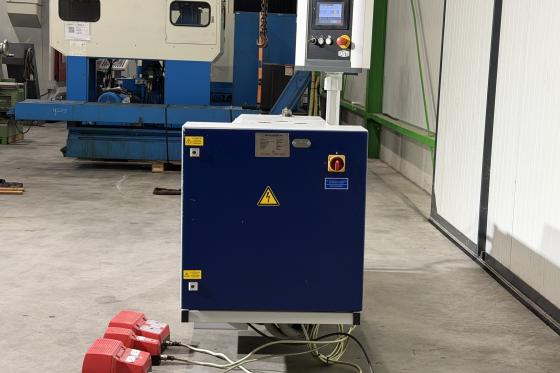

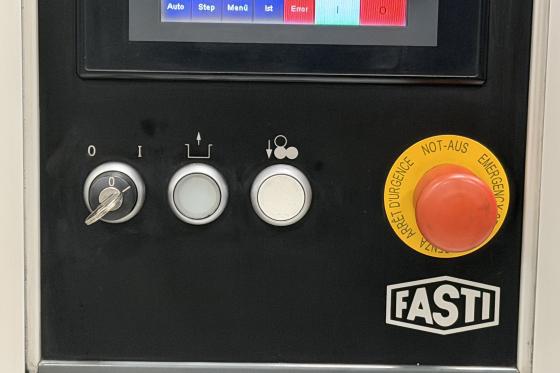

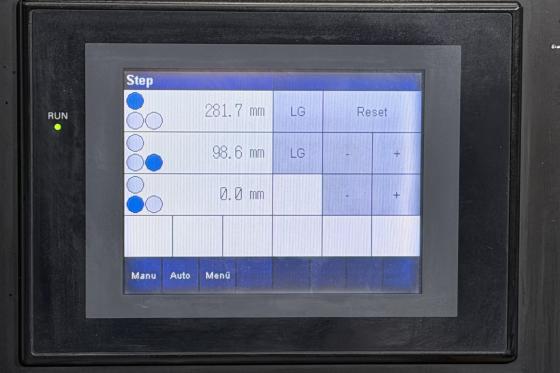

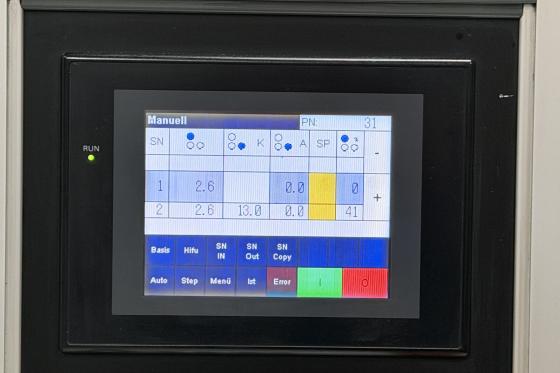

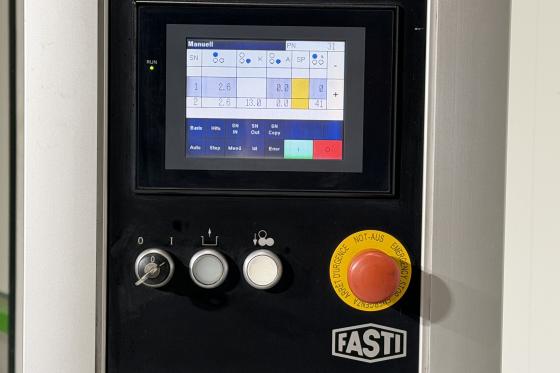

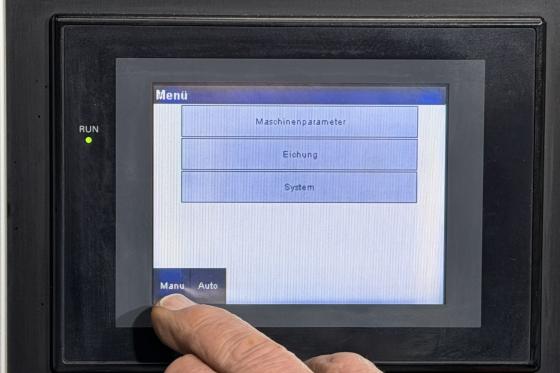

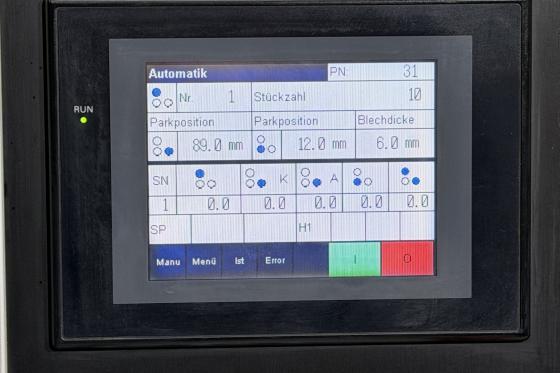

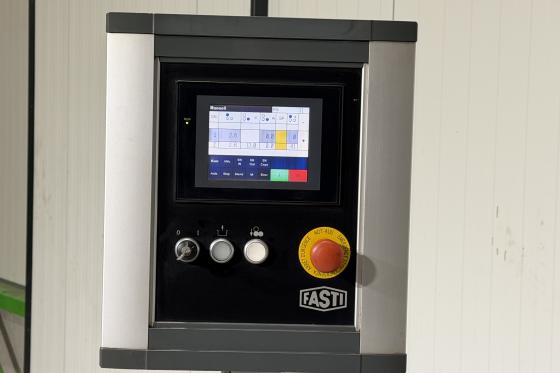

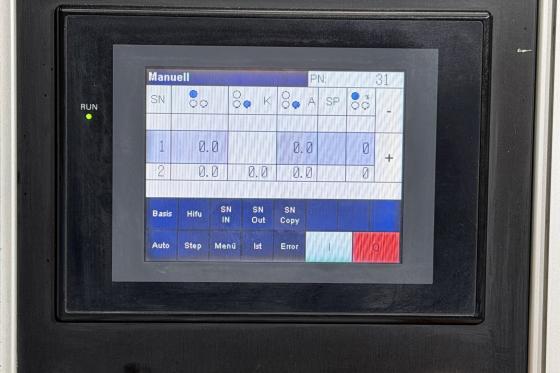

- CR-80 SPS Control
- Highlights of the CR 80 SPS control
The CR 80 control offers a very comfortably and userfriendly programming. Depending on the program,
it is possible to make variable radii without bending
marks. The calculation of diameters when producing
pipes is done automatically.

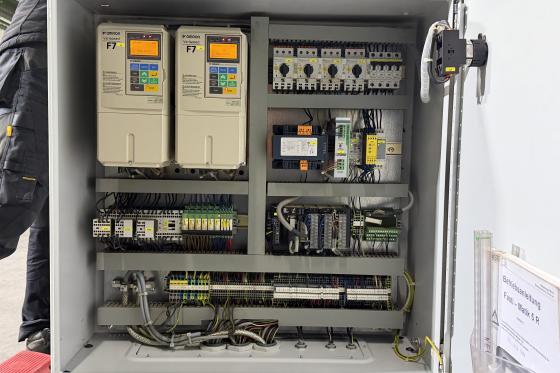

The positioning of bending wheels, sheet feeding and
back roll adjustment are frequency-controlled (only in
combination with three-roll drive).
Products e.g.: Pipes, silencers, triangles, squares
Specifications
Rolling width
1040 mm
40.945 inch
Rolling thickness 5x toproll Ø
6.5 mm
0.256 inch
Top Roll Ø
160 mm
6.299 inch
Bottom Roll Ø
160 mm
6.299 inch
Side roll Ø
160 mm
6.299 inch

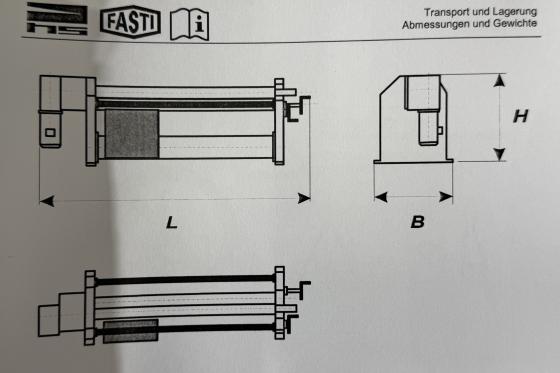

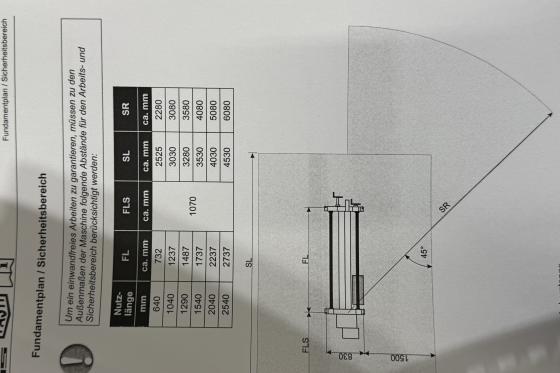

Dimensions (Estimate)
Length
2020 mm
79.527 inch
Width
980 mm
38.583 inch
Height
1070 mm
42.126 inch
Weight
1530 kg
3374.6 lbs
