This machine is sold

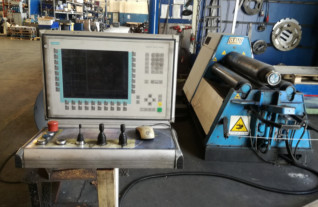

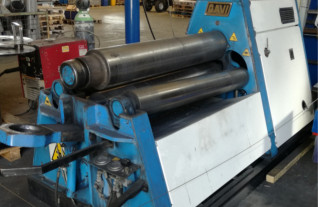

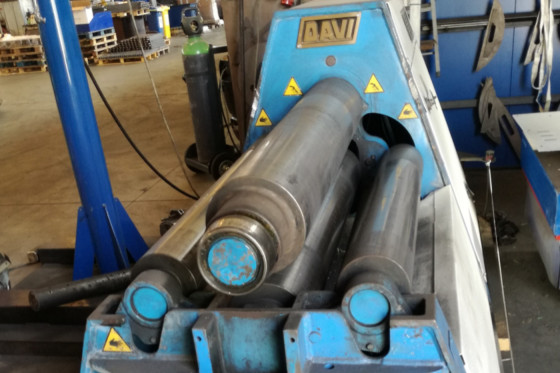

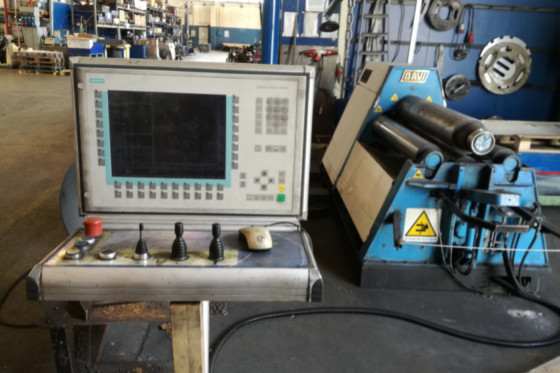

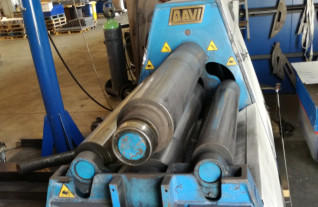

4 roll plate bender DAVI - MCB 1222
MACH-ID 6017| Make: | DAVI |
| Type: | MCB 1222 |
| Year: | 2004 |
Specifications
Rolling width
1200 mm
47.244 inch
Rolling thickness 3x toproll Ø
10 mm
0.394 inch
Rolling thickness 5x toproll Ø
12 mm
0.472 inch
Rolling thickness prebending
8 mm
0.315 inch
Top Roll Ø
220 mm
8.661 inch
Bottom Roll Ø
200 mm
7.874 inch
Side roll Ø
180 mm
7.087 inch
Number of rolls
4
4
Rolling speed
8
8

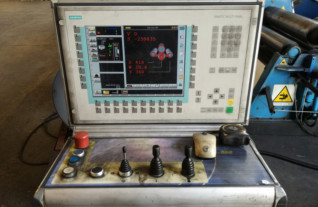

Control
SIEMENS
SIEMENS
Number of driven rolls
2
2
Power
5,5 kW
5,5 kW
Dimensions (Estimate)
Length
2500 mm
98.425 inch
Width
1800 mm
70.866 inch
Height
1900 mm
74.803 inch
Weight
4300 kg
9484.2 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
