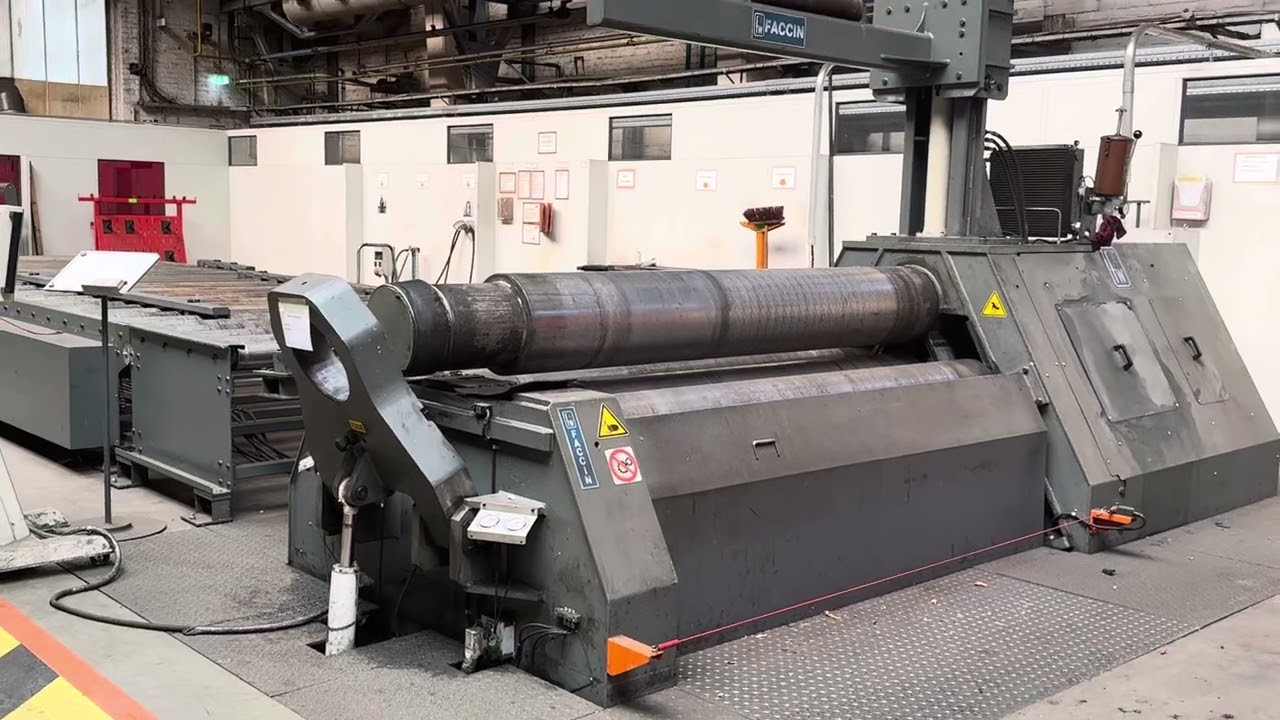

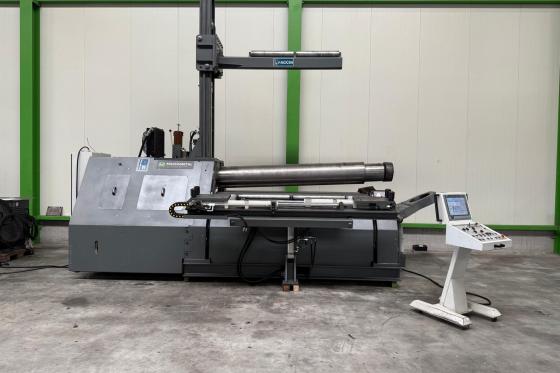

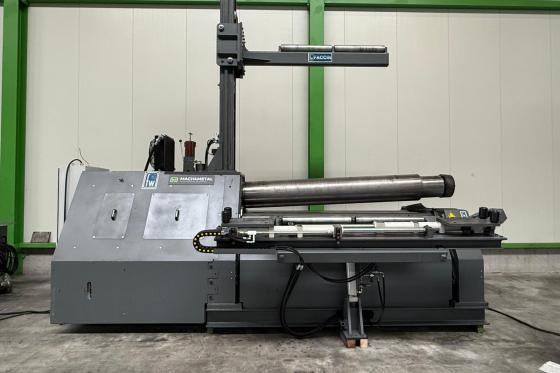

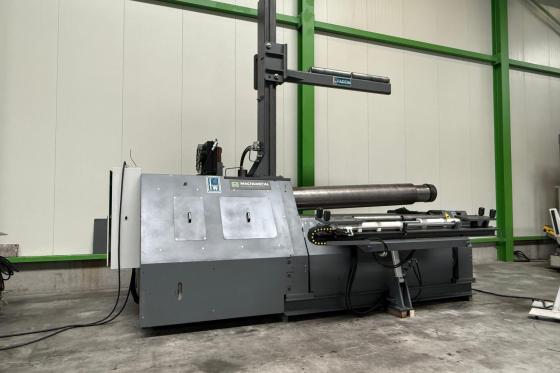

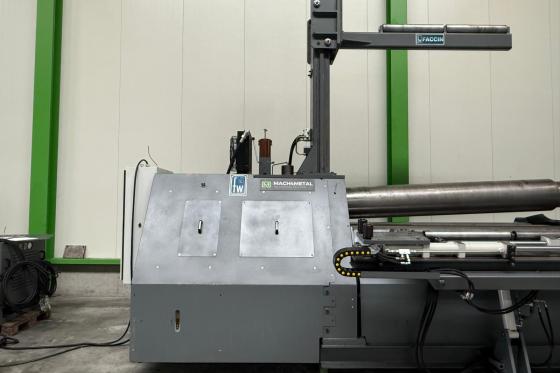

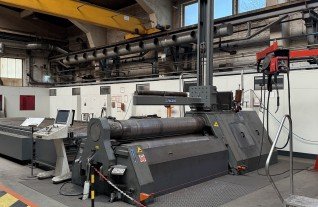

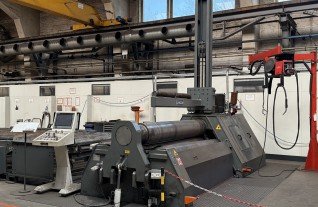

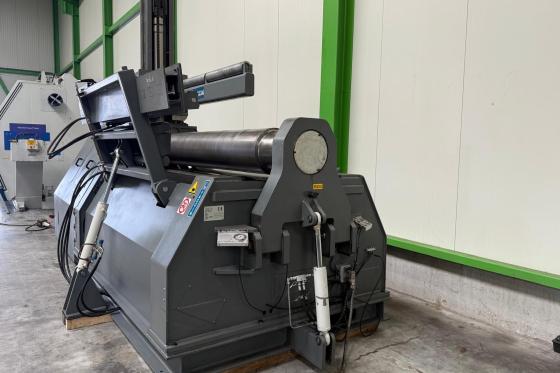

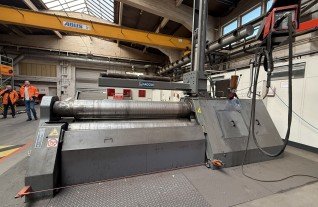

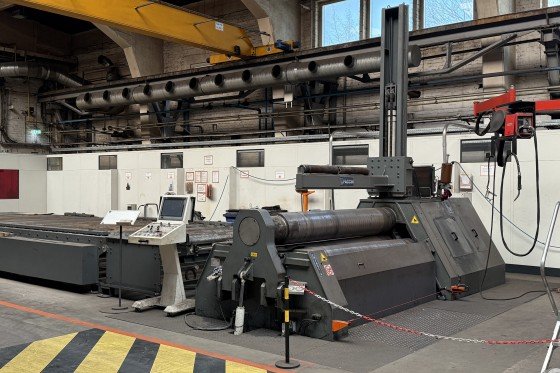

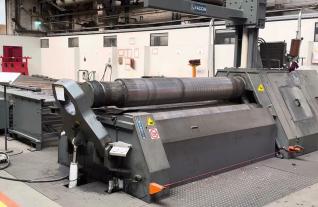

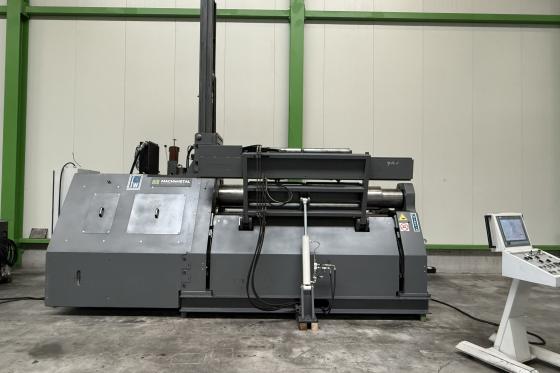

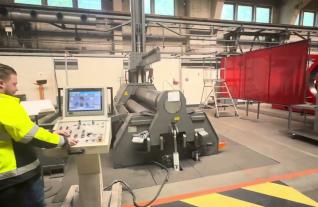

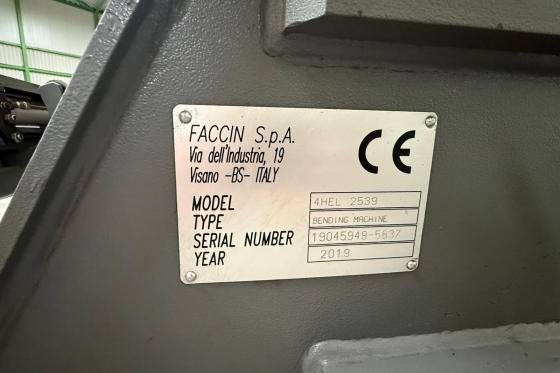

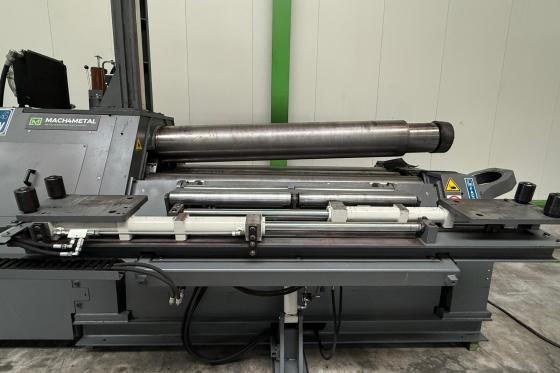

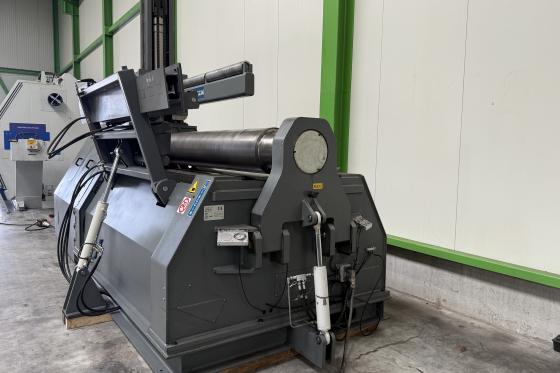

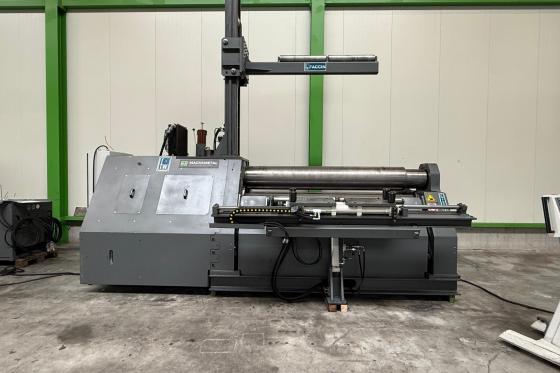

4 roll plate bender FACCIN - 4HEL 2539

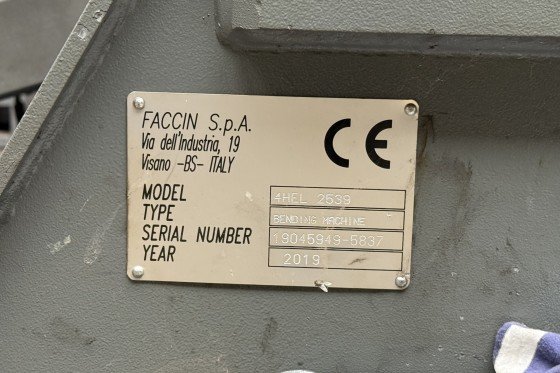

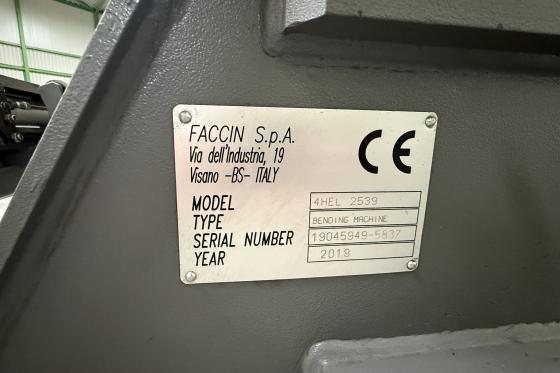

MACH-ID 9063| Make: | FACCIN |
| Type: | 4HEL 2539 |

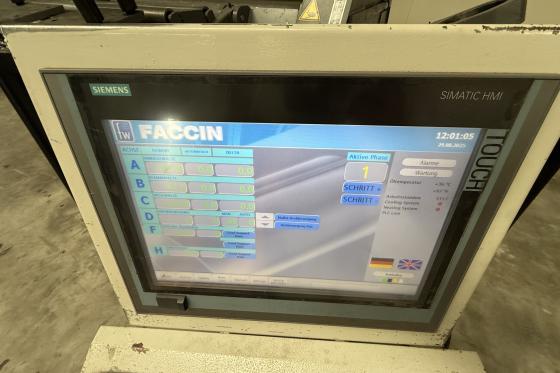

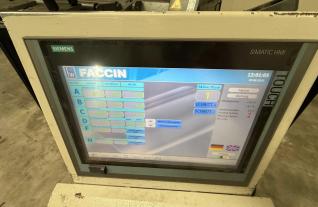

| Control: | Siemens TOUCH |
| Year: | 2019 |

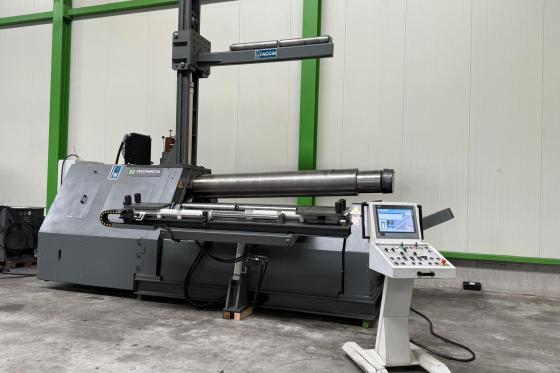

- Top support 3000 height

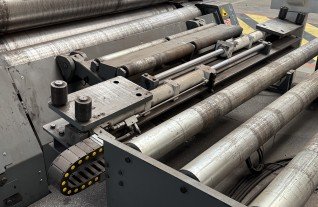

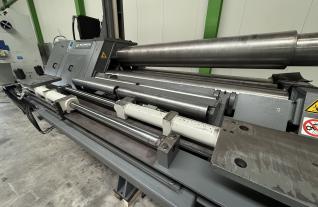

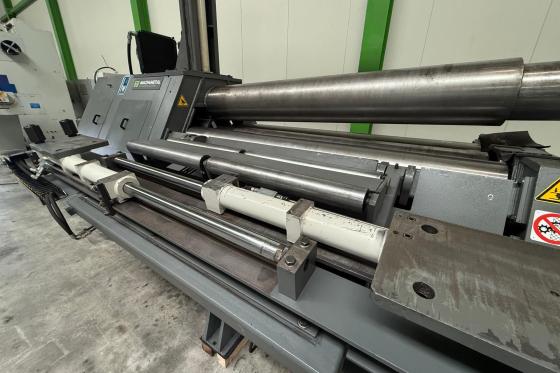

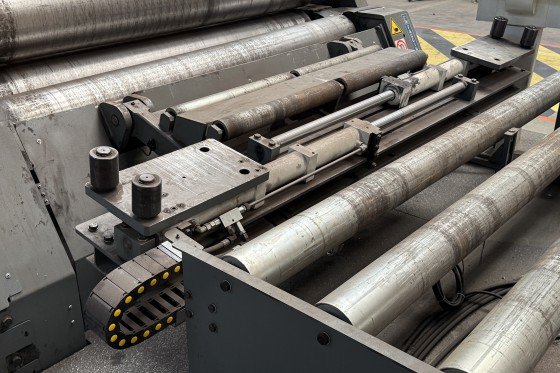

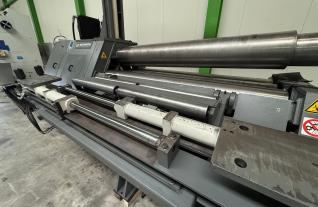

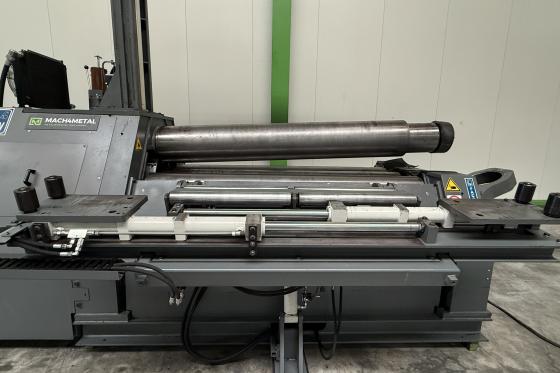

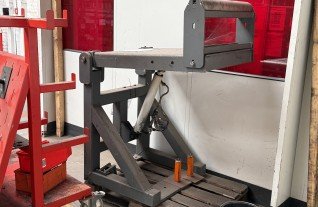

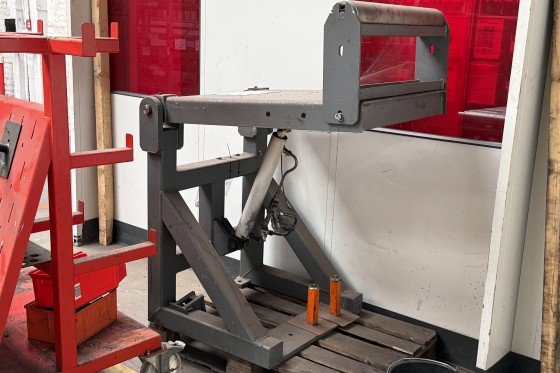

- Side support with in feed fingers 3 ton

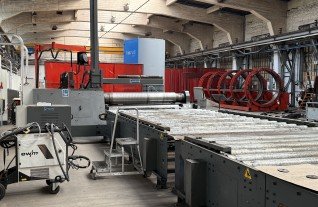

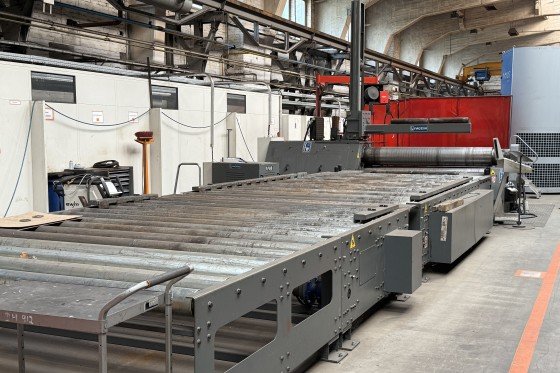

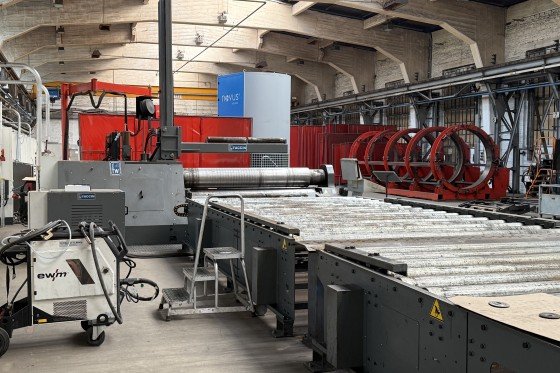

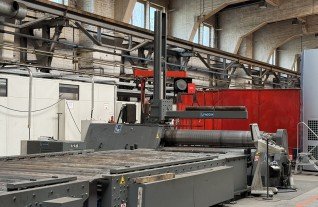

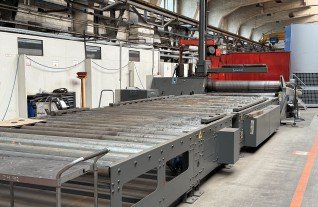

- Roller conveyor 7500 x 2500 mm

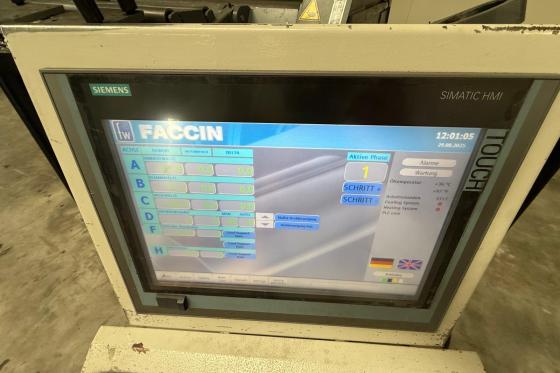

- PGS-Ultra CNC Control
- Fully hydraulic machine
- Central lubrication
- New EUR 300.000
Specifications
Rolling width
2500 mm
98.425 inch
Rolling thickness 3x toproll Ø
24 mm
0.945 inch
Rolling thickness 5x toproll Ø
28 mm
1.102 inch
Rolling thickness prebending
24 mm
0.945 inch

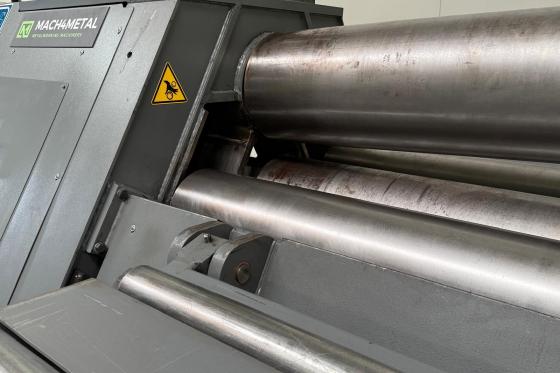

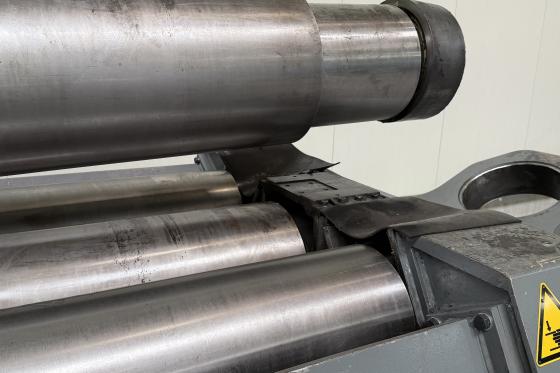

Top Roll Ø
390 mm
15.354 inch
Bottom Roll Ø
370 mm
14.567 inch
Side roll Ø
295 mm
11.614 inch
Number of rolls
4
4
Rolling speed
0 - 5
0 - 5
Adjustiment lower roll
0 - 200 mm/min.
0 - 200 mm/min.
Adjustment side rolls
0 - 200 mm/min.
0 - 200 mm/min.
Control

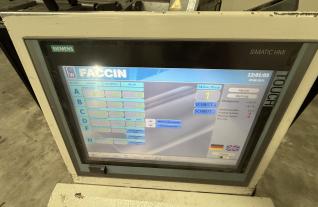

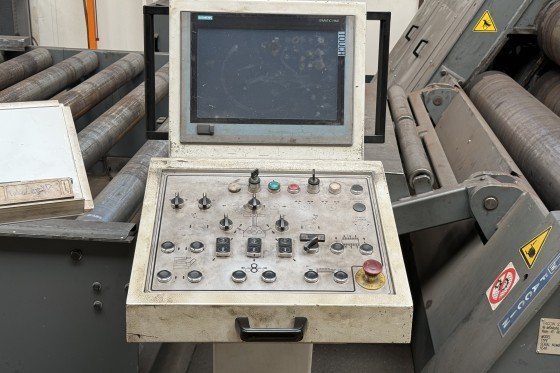

SIEMENS PGS Classic TOUCH
SIEMENS PGS Classic TOUCH
Top support
Yes
Yes
Side supports
Yes
Yes
Number of driven rolls
Yes
Yes

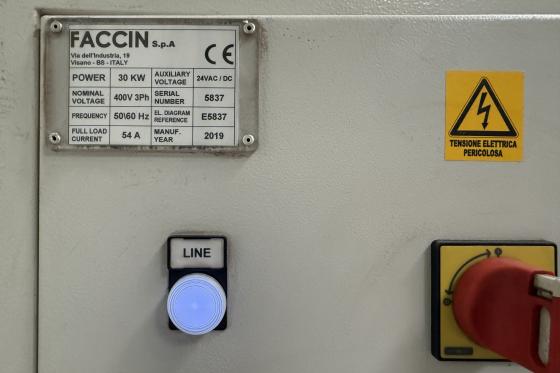

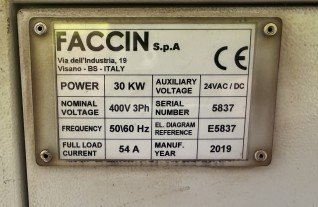

Power
30 kW
30 kW

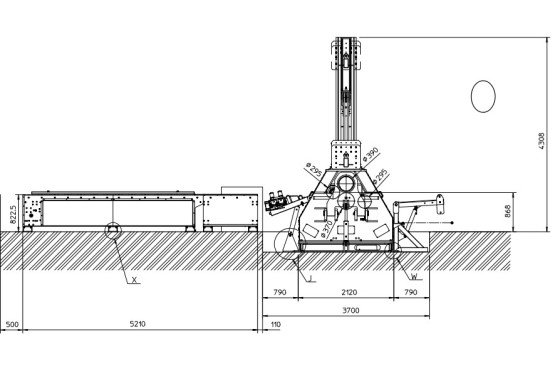

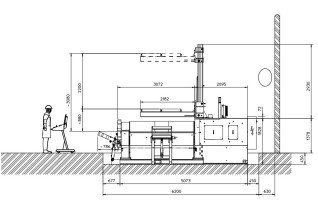

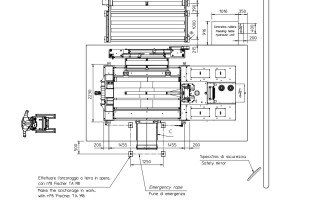

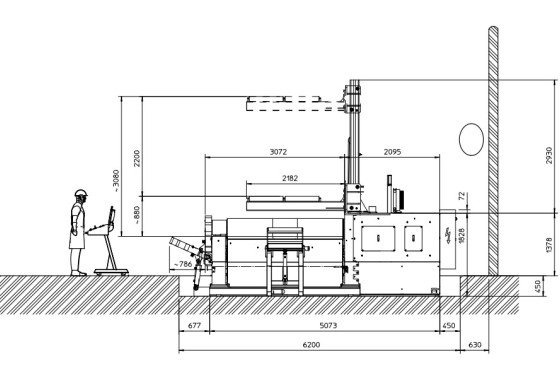

Dimensions (Estimate)
Length
6200 mm
244.094 inch
Width
2200 mm
86.614 inch
Height
3800 mm
149.606 inch
Weight
18000 kg
39701.2 lbs
