This machine is sold

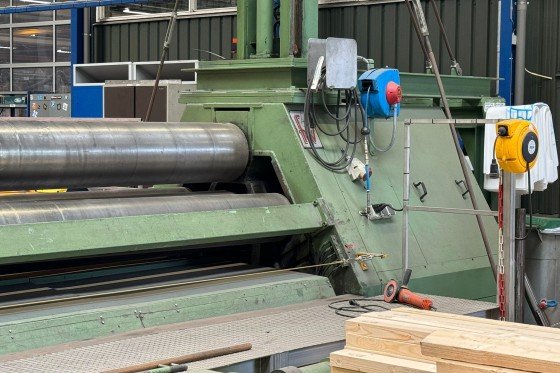

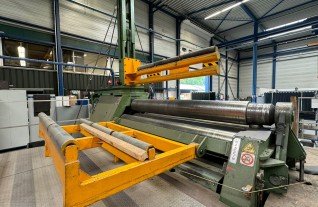

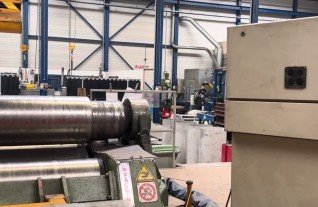

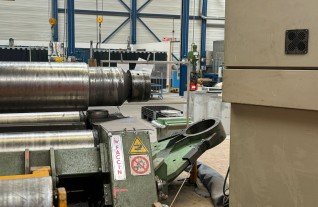

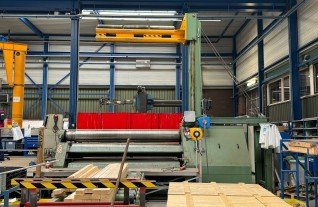

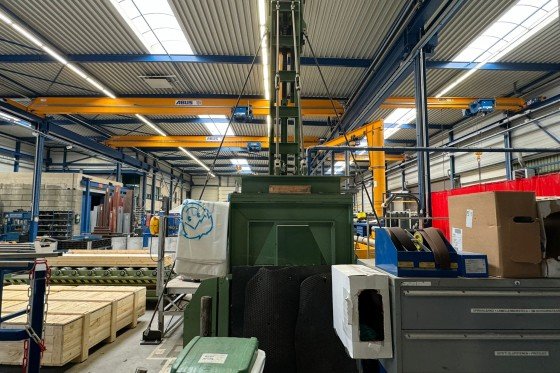

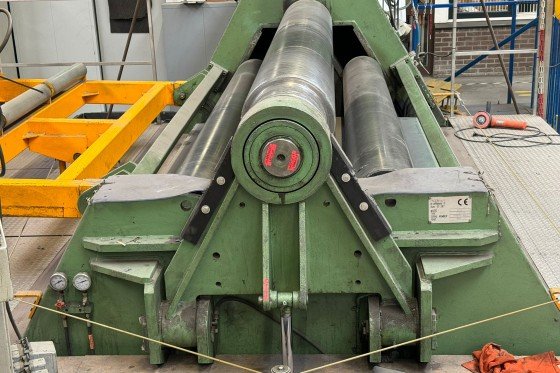

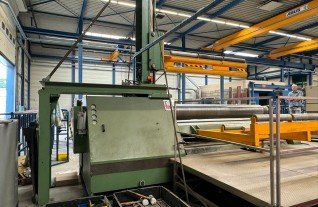

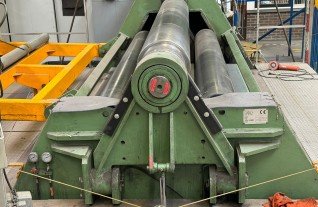

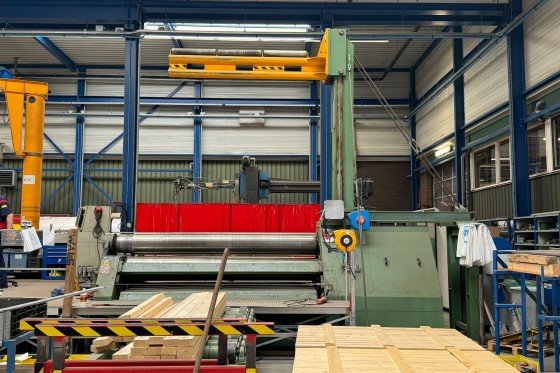

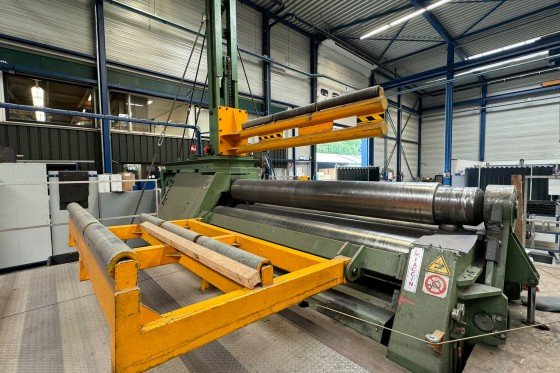

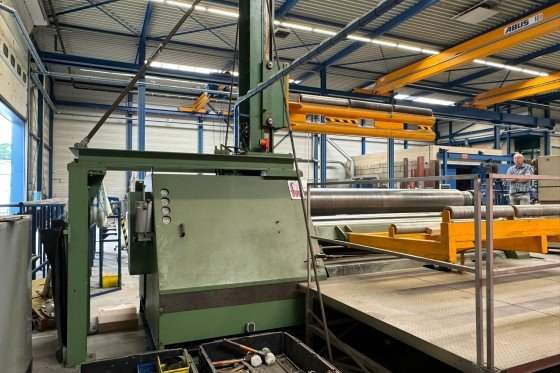

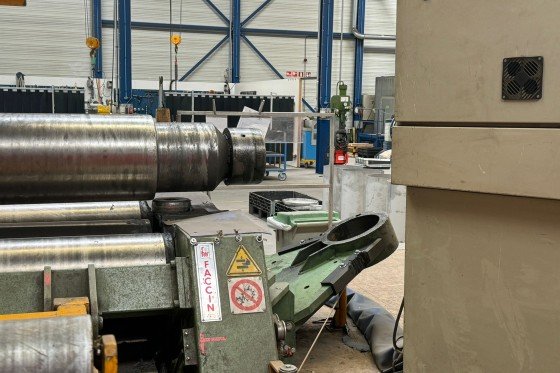

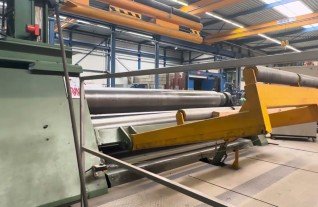

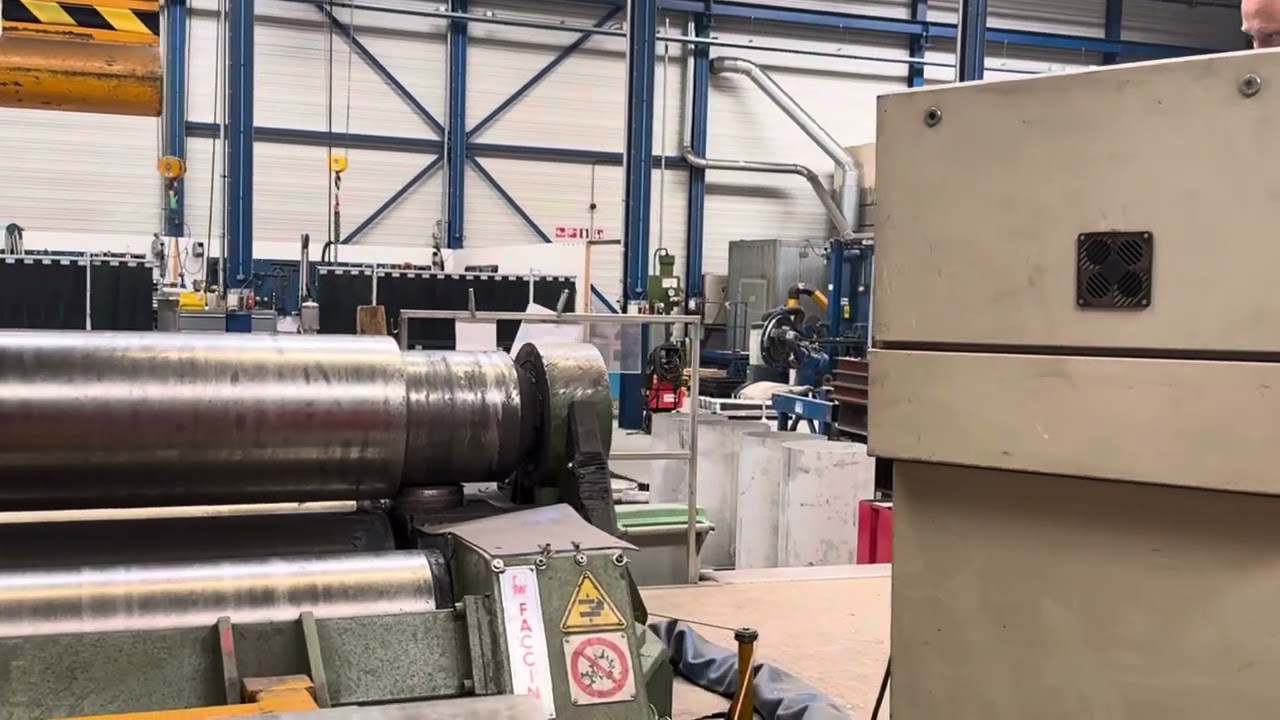

4 roll plate bender FACCIN - 4HEL 3137
MACH-ID 8733| Make: | FACCIN |
| Type: | 4HEL 3137 |

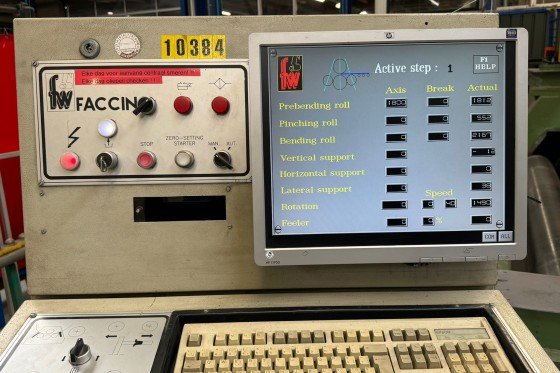

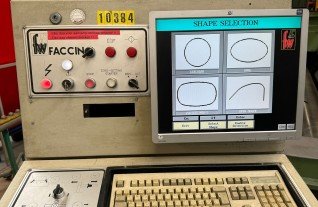

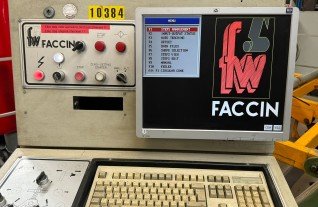

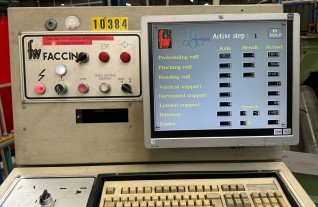

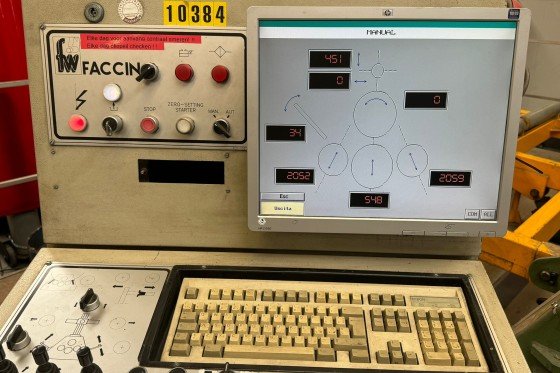

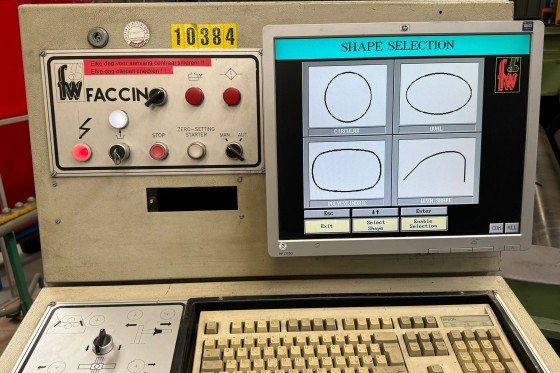

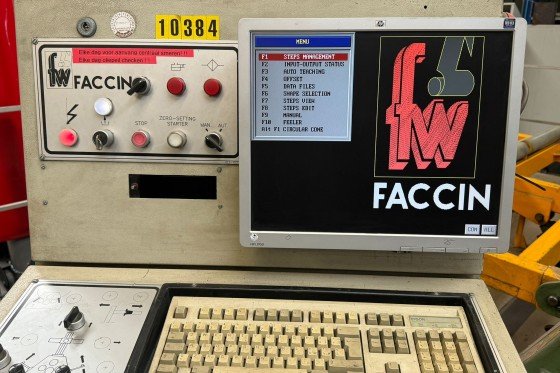

| Control: | CNC Faccin PC |
| Year: | 1998 |

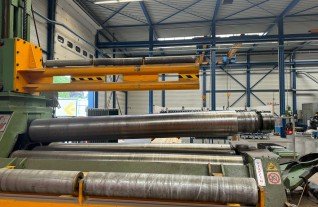

- Hardned rolls

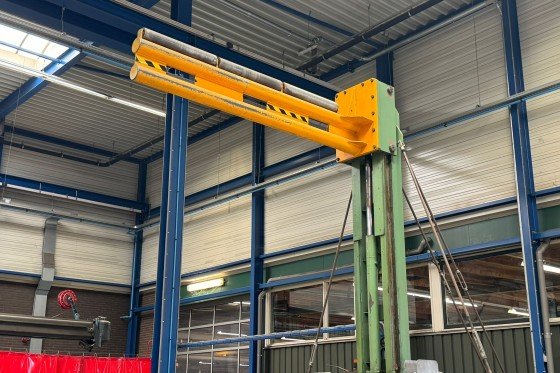

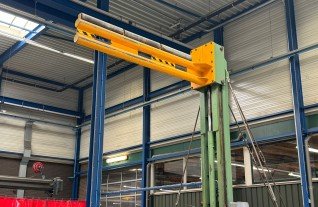

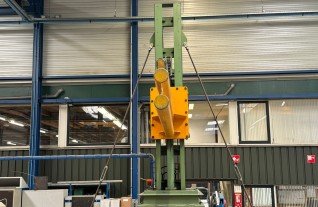

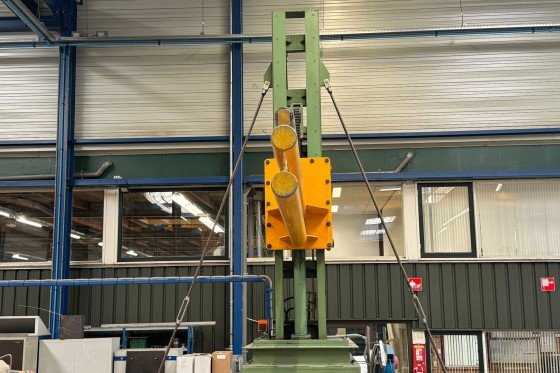

- Top support
- Side support
- Conical bending attachment
- 3 rolls driven
- In-Feed table not included
Specifications
Rolling width
3100 mm
122.047 inch
Rolling thickness 3x toproll Ø
25 mm
0.984 inch
Rolling thickness 5x toproll Ø
28 mm
1.102 inch
Rolling thickness prebending
20 mm
0.787 inch
Top Roll Ø
370 mm
14.567 inch
Bottom Roll Ø
350 mm
13.78 inch
Side roll Ø
290 mm
11.417 inch
Number of rolls
4
4
Rolling speed
0-5
0-5
Adjustiment lower roll
200 mm/min.
200 mm/min.
Adjustment side rolls
200 mm/min.
200 mm/min.
Top support
Yes
Yes
Side supports
Yes
Yes
Number of driven rolls
3
3
Dimensions (Estimate)
Length
6000 mm
236.22 inch
Width
2300 mm
90.551 inch
Height
5800 mm
228.346 inch
Weight
20000 kg
44112.4 lbs
