This machine is sold

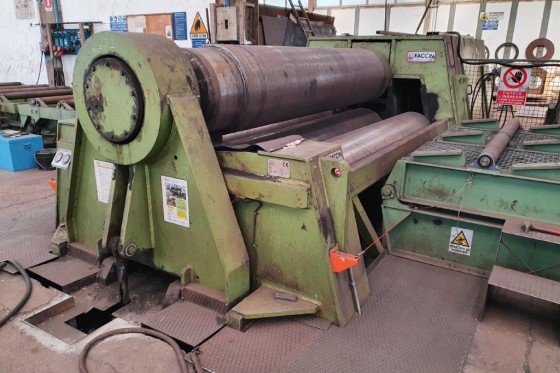

4 roll plate bender FACCIN - 4HEL 3166
MACH-ID 7263| Make: | FACCIN |
| Type: | 4HEL 3166 |

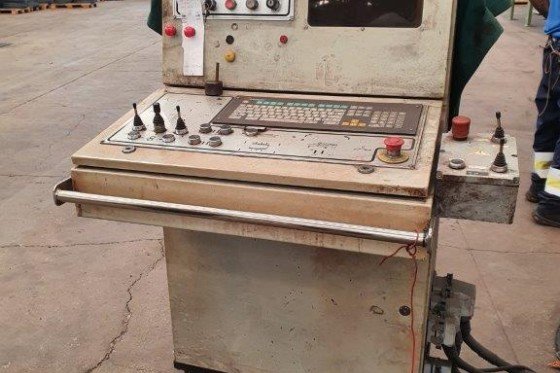

| Control: | PGS 2000 |
| Year: | 2002 |
Specifications
Rolling width
3000 mm
118.11 inch
Rolling thickness 3x toproll Ø
60 mm
2.362 inch
Rolling thickness 5x toproll Ø
70 mm
2.756 inch
Rolling thickness prebending
55 mm
2.165 inch
Top Roll Ø
660 mm
25.984 inch
Bottom Roll Ø
650 mm
25.591 inch
Side roll Ø
550 mm
21.654 inch
Number of rolls
4
4
Rolling speed
0 - 3 M/Min
0 - 3 M/Min
Adjustiment lower roll
0 - 300 mm/min.
0 - 300 mm/min.
Adjustment side rolls
0 - 300 mm/min.
0 - 300 mm/min.
Number of driven rolls
2
2
Power
75 kW
75 kW
Dimensions (Estimate)
Length
6800 mm
267.716 inch
Width
2900 mm
114.173 inch
Height
2940 mm
115.748 inch
Weight
62000 kg
136748.4 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
