This machine is sold

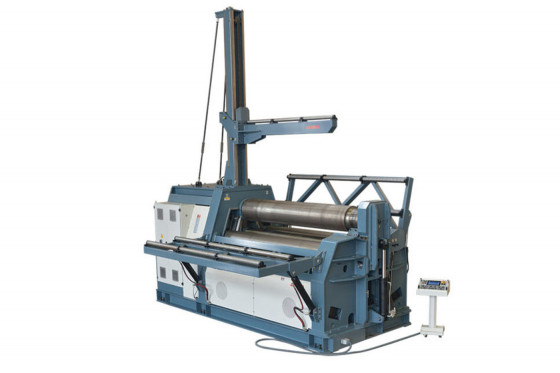

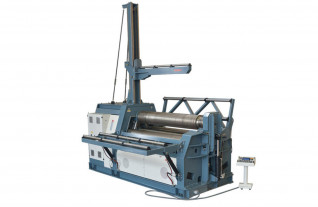

4 roll plate bender HRB-4 4013
MACH-ID 5353| Type: | HRB-4 4013 |
| Year: | 2009 |
Specifications
Rolling width
4000 mm
157.48 inch
Rolling thickness 3x toproll Ø
12 mm
0.472 inch
Rolling thickness 5x toproll Ø
16 mm
0.63 inch
Rolling thickness prebending
10 mm
0.394 inch
Top Roll Ø
350 mm
13.78 inch
Bottom Roll Ø
350 mm
13.78 inch
Side roll Ø
300 mm
11.811 inch
Number of rolls
4
4
Rolling speed
0-5.8
0-5.8

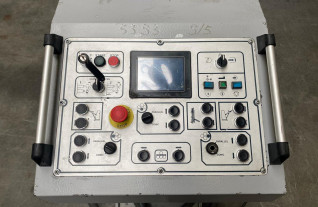

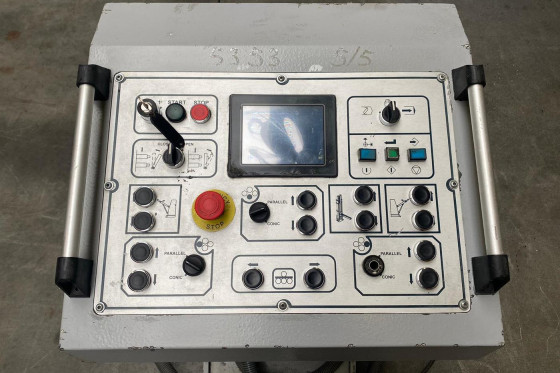

Control
Conventionel
Conventionel

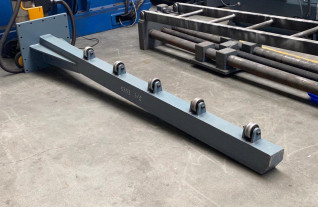

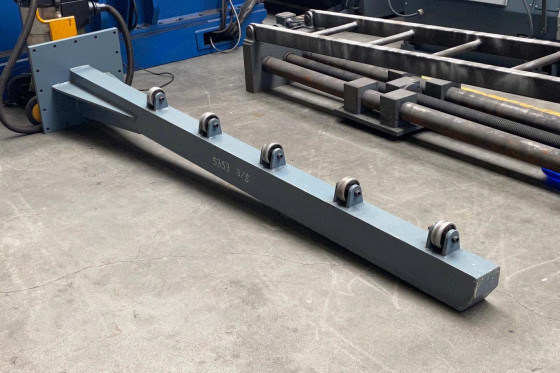

Top support
Yes
Yes
Side supports
Yes
Yes
Number of driven rolls
2
2
Power
18,5 kW
18,5 kW
Dimensions (Estimate)
Length
6200 mm
244.094 inch
Width
2250 mm
88.583 inch
Height
3200 mm
125.984 inch
Weight
22100 kg
48744.2 lbs
