This machine is sold

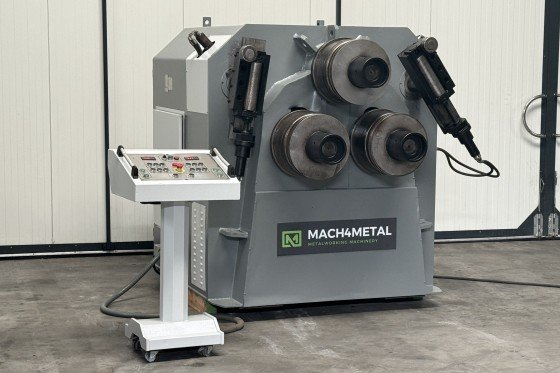

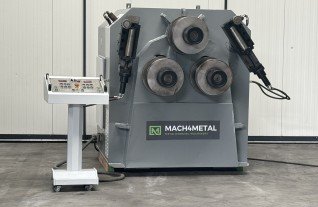

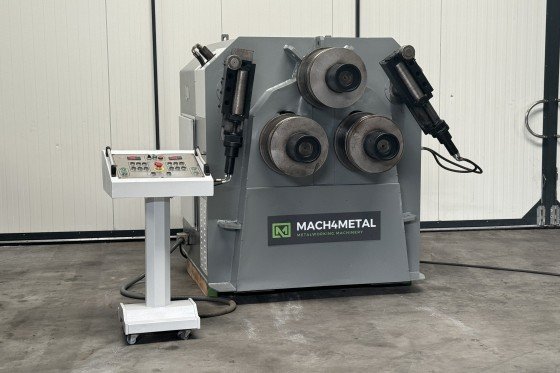

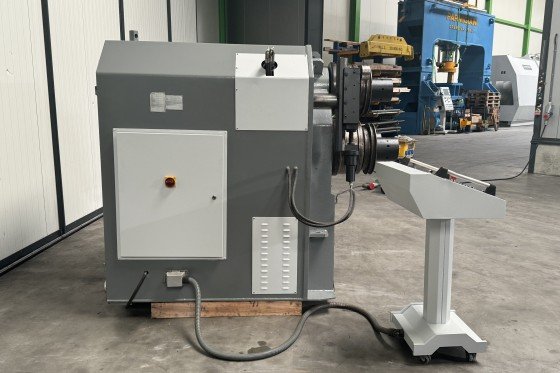

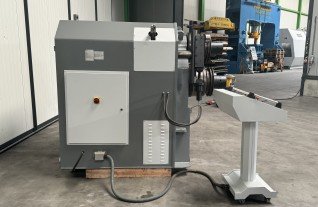

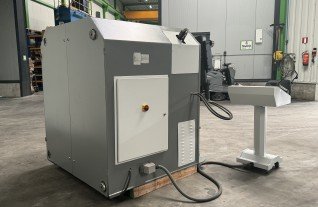

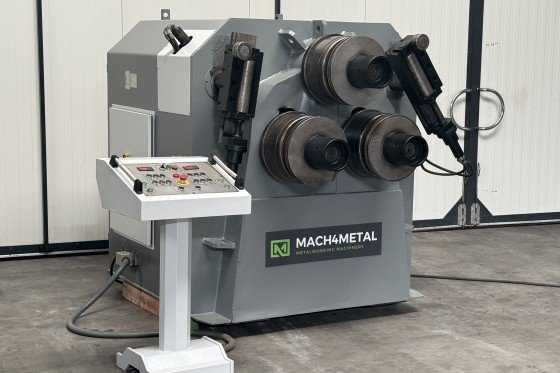

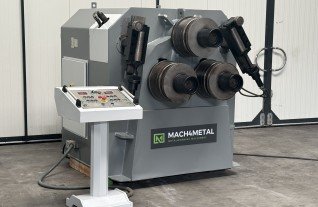

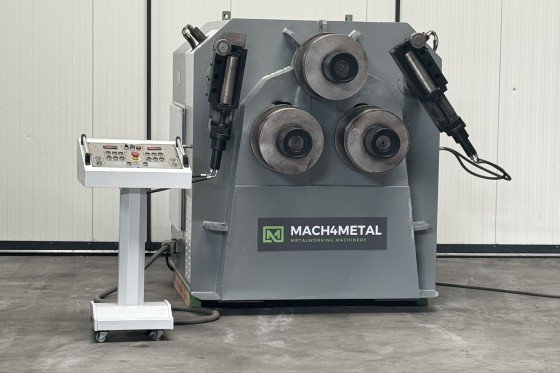

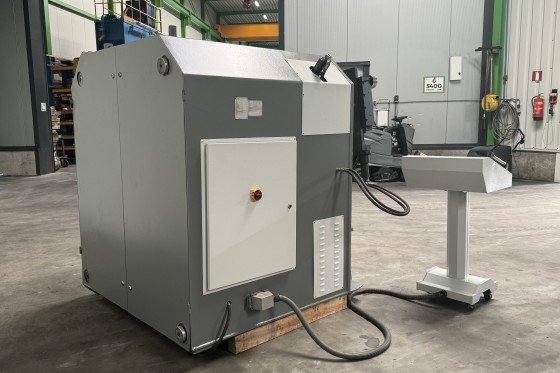

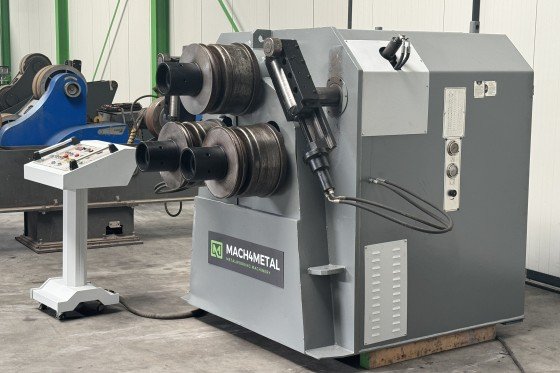

Profile bending machine BIRLIK - PBH 125
MACH-ID 8540| Make: | BIRLIK |
| Type: | PBH 125 |
| Year: | 2007 |
3 driven rolls (hydromotor and planetary gear)
strong welded steel construction
lower rolls hydr. adjustable
digital read-out for lower rolls positions
plane rolls

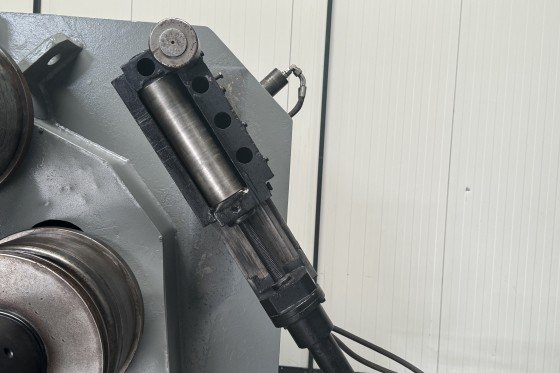

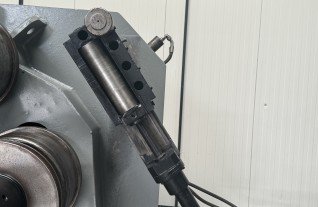

lateral rolls (forward-backward hydraulic, rest manual)
horizontal and vertical operation

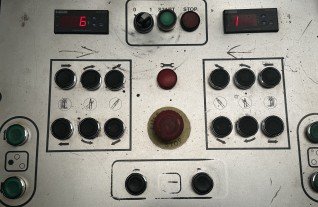

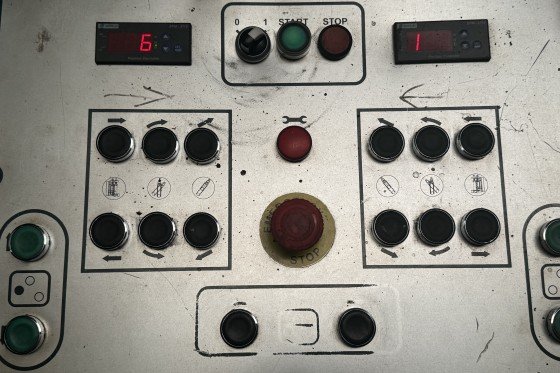

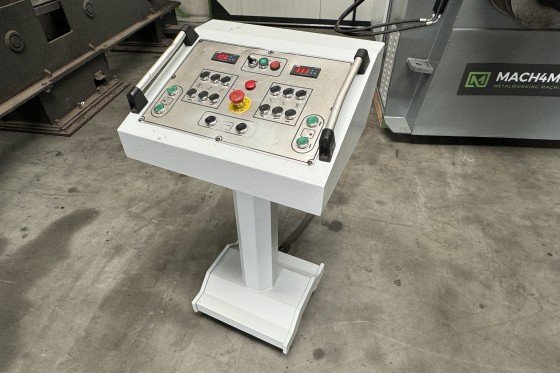

Control console for- and backward drive
machine and equipment according to the CE regulations
Specifications
Horizontal and vertical
Horizontal & Vertical
Horizontal & Vertical
Shaft Ø
140-120 mm
140-120 inch
Number of rolls
3
3
Capacity flat
120 x 25 x 1300 mm
120 x 25 x 1300 inch
Capacity Tube
114,4 x 3,2 Ø x mm
114,4 x 3,2 Ø x mm
Capacity bar
100 x 100 x 16 mm
100 x 100 x 16 inch
Capacity T-Profile
130 x 14 x 1300 mm
130 x 14 x 1300 inch
Capacity HEA-Profile
HEA 140 x 1200 mm
HEA 140 x 1200 inch
Working speed
0 - 9000 mm/min.
0 - 9000 mm/min.
Adjustment siderolls
Hydraulic
Hydraulic
Side supports
Hydraulic
Hydraulic
Dimensions (Estimate)
Length
2000 mm
78.74 inch
Width
1650 mm
64.961 inch
Height
1800 mm
70.866 inch
Weight
4500 kg
9925.3 lbs
