This machine is sold

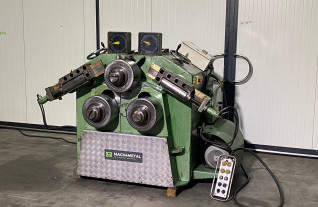

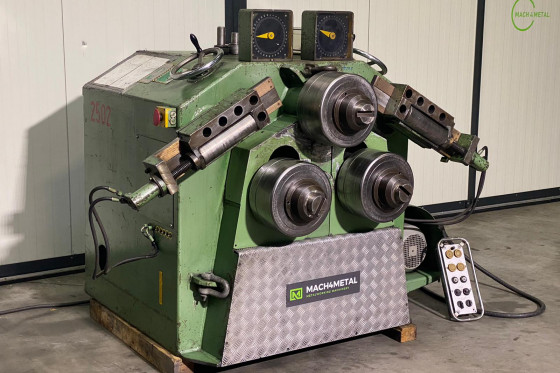

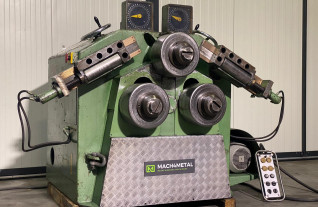

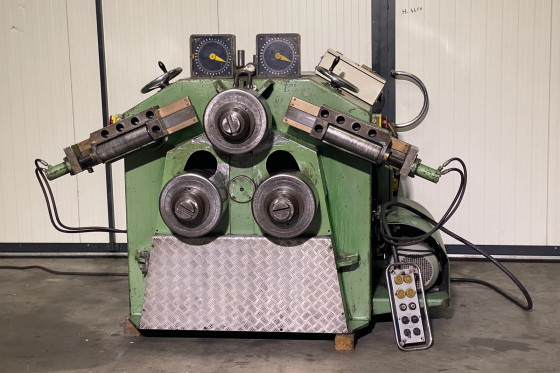

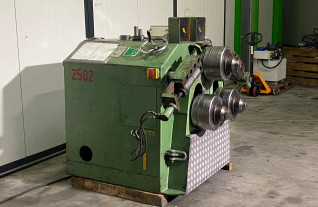

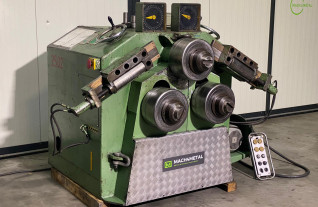

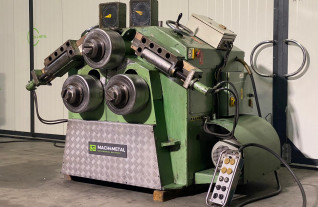

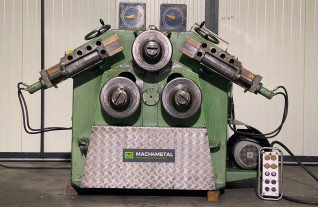

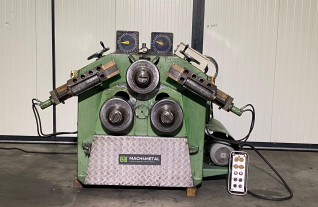

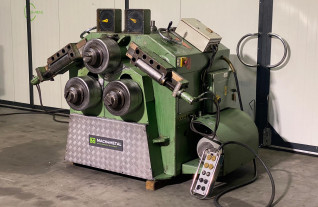

Profile bending machine ROUNDO - R-4-S
Section bender profile bender Ø 100 x 1100 mm MACH-ID 6248| Make: | ROUNDO |
| Type: | R-4-S |
| Year: | 1988 |
Specifications
Horizontal and vertical
H + V
H + V
Shaft Ø
105 mm
4.134 inch
Number of rolls
3
3
Horizontal
Yes
Yes
Vertical
Yes
Yes
Resistance moment
40 CM³
40 CM³
Capacity flat
100 x 25 x 700 mm
100 x 25 x 700 inch
Capacity Tube
100 x 1100 Ø x mm
100 x 1100 Ø x mm
Capacity bar
60 x 60 x 600 mm
60 x 60 x 600 inch
Capacity T-Profile
100 x 12 x 1000 mm
100 x 12 x 1000 inch
Capacity HEA-Profile
120 x 800 mm
120 x 800 inch
Working speed
0 - 400 mm/min.
0 - 400 mm/min.
Dimensions (Estimate)
Length
1500 mm
59.055 inch
Width
1300 mm
51.181 inch
Height
1500 mm
59.055 inch
Weight
3000 kg
6616.9 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
- Drive on all three rolls
- Automatic compensation speed difrance between rolls
- Hydraulic adjustment lower rolls

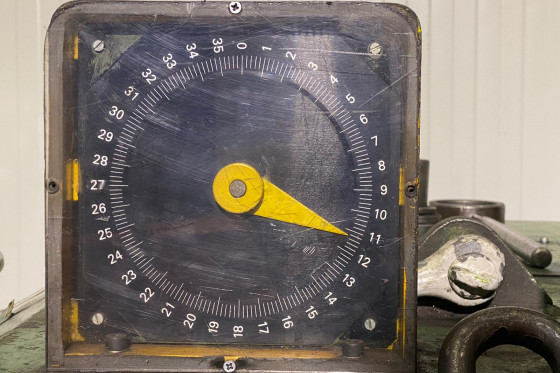

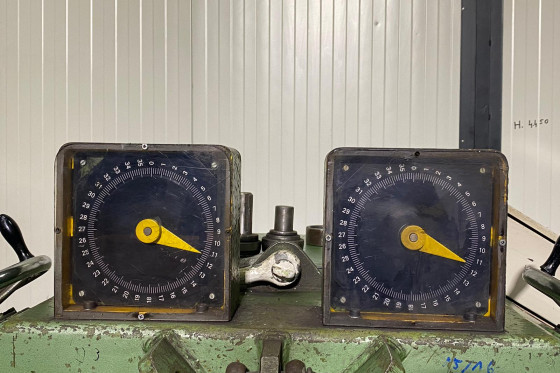

- Optical read out position lower rolls
- Hydraulic operated guide rolls
- Manuel adjustment angle positioning
- Driven by worm gear motor equiped with magnetic brake

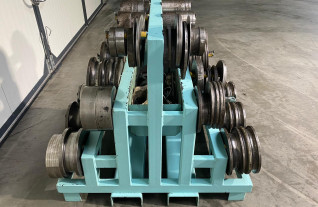

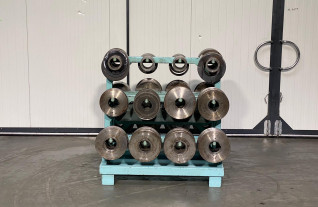

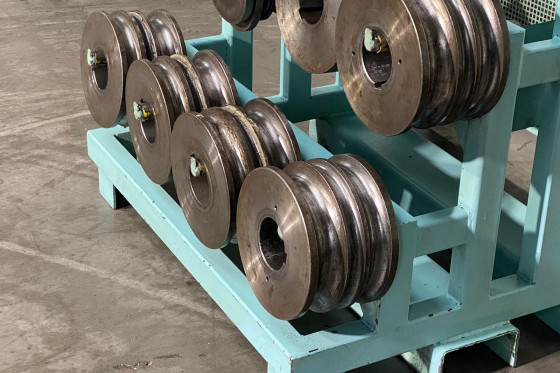

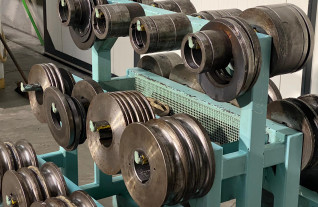

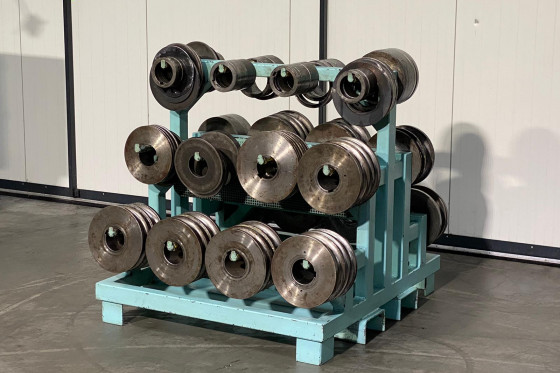

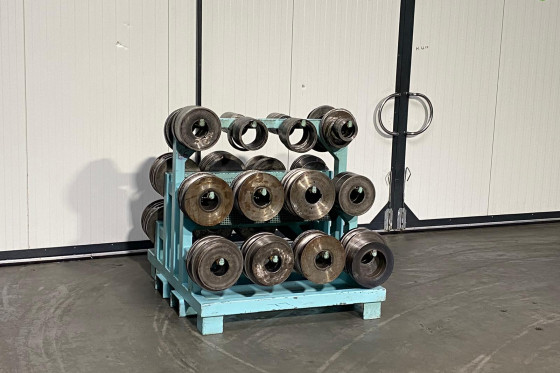

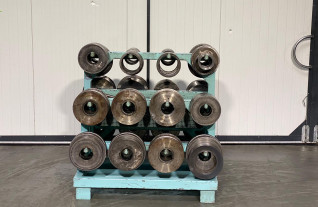

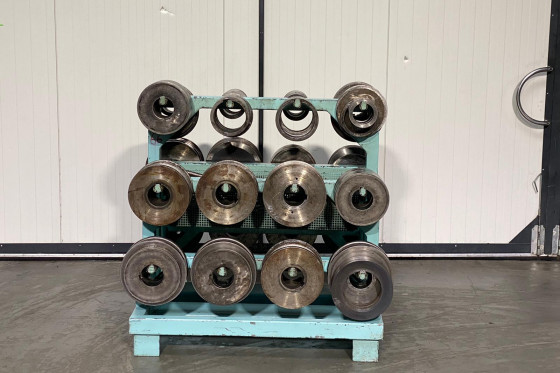

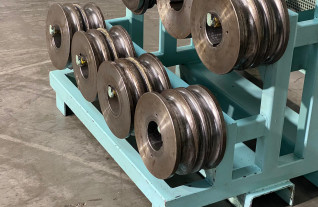

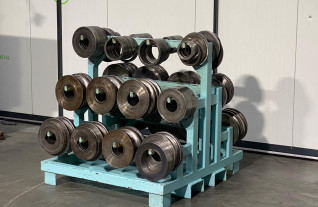

- Optional BIG set extra rolls
