This machine is sold

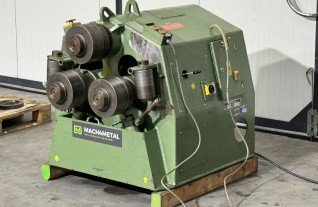

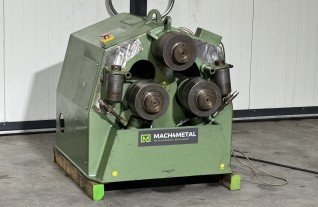

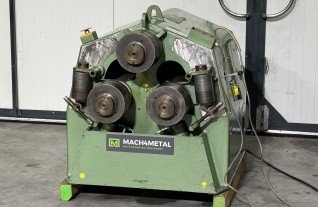

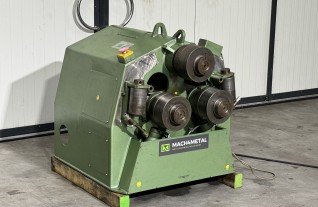

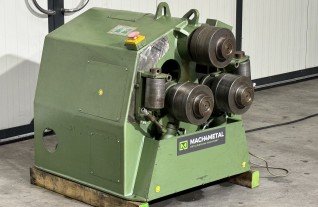

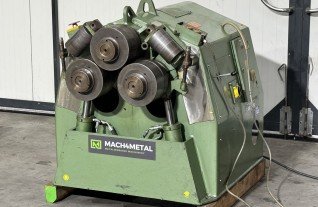

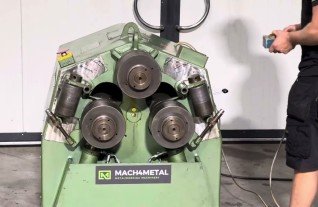

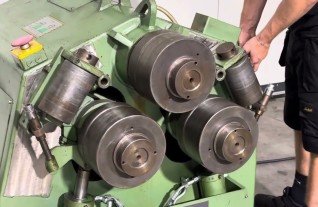

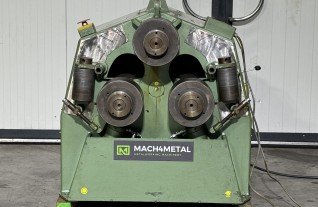

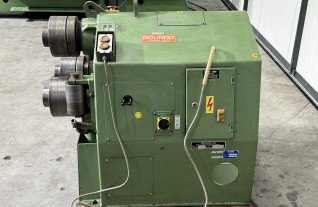

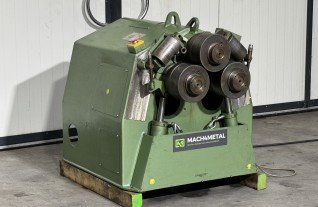

Profile bending machine ROUNDO - R2

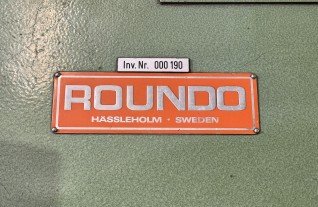

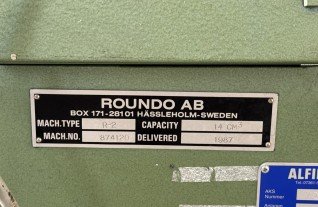

MACH-ID 8771| Make: | ROUNDO |
| Type: | R2 |
| Year: | 1987 |

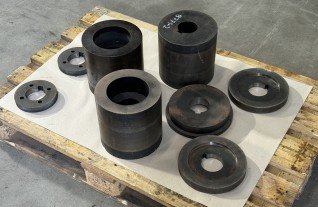

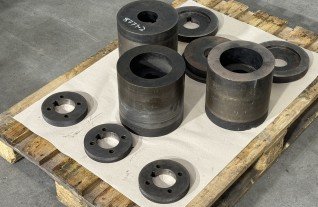

- Diameter rolls 190 mm
- Two lower rolls are hydraulic adjusted
- 3 rolls driven
- compensation slip clutch for top roll
- 2 guide rollers for bending A-Symetrical sections
Specifications
Horizontal and vertical
Horizontal and Vertical
Horizontal and Vertical
Shaft Ø
60 mm
2.362 inch
Number of rolls
3
3
Resistance moment
7 CM³
7 CM³
Capacity flat
60 x 12 x R=400 mm
60 x 12 x R=400 inch
Capacity Tube
40 x R=500 Ø x mm
40 x R=500 Ø x mm
Capacity bar
35 x 35 x R=350 mm
35 x 35 x R=350 inch
Capacity T-Profile
60 x 7 x R=600 mm
60 x 7 x R=600 inch
Working speed
7000 mm/min.
7000 mm/min.
Adjustment siderolls
150
150
Dimensions (Estimate)
Length
1000 mm
39.37 inch
Width
1000 mm
39.37 inch
Height
900 mm
35.433 inch
Weight
800 kg
1764.5 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
