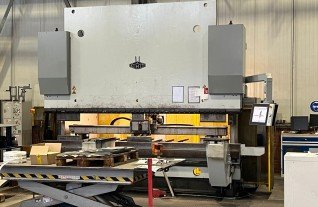

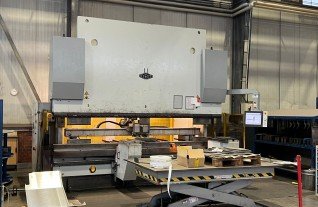

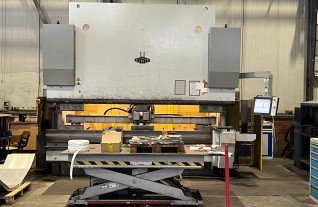

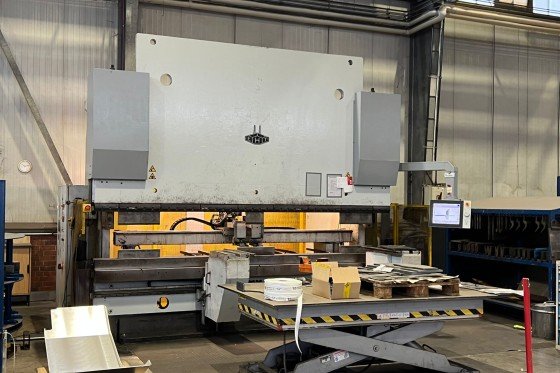

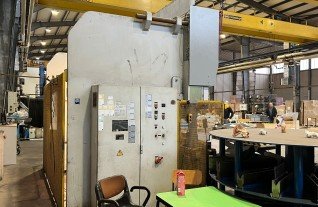

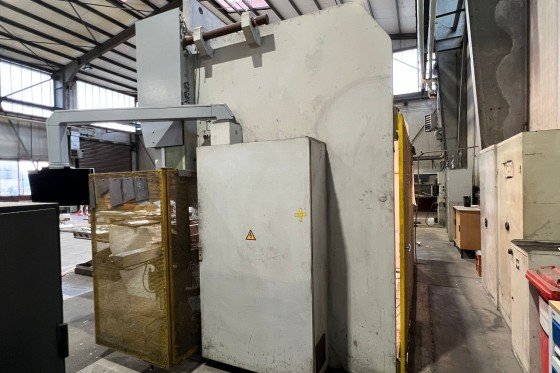

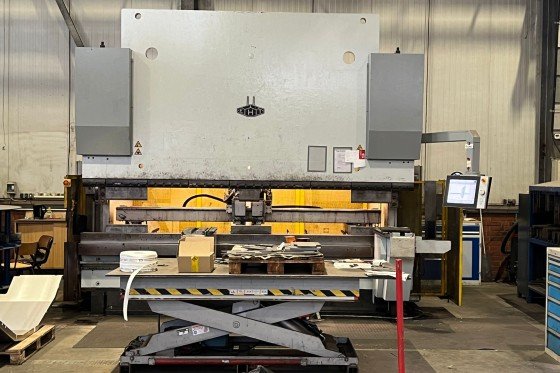

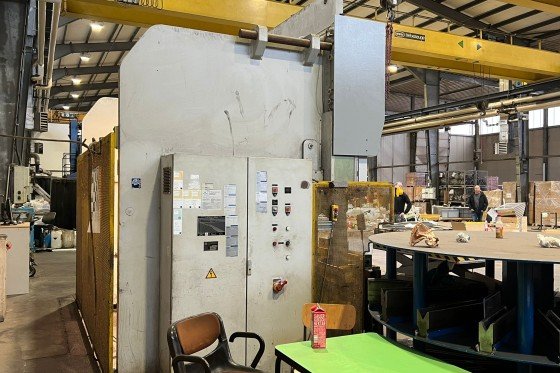

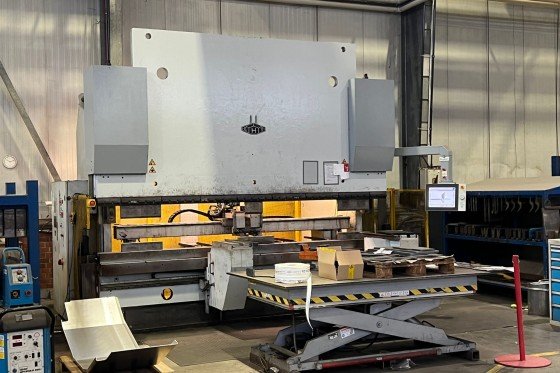

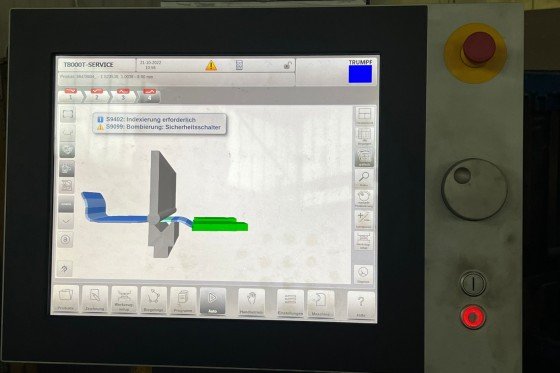

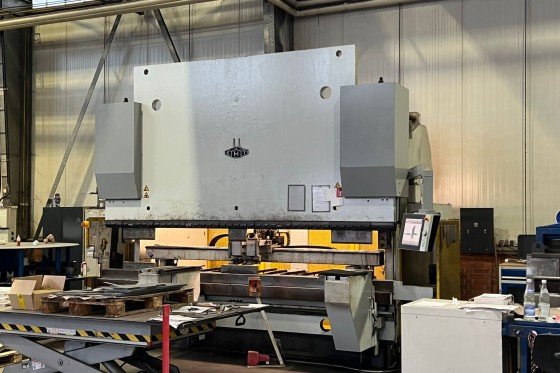

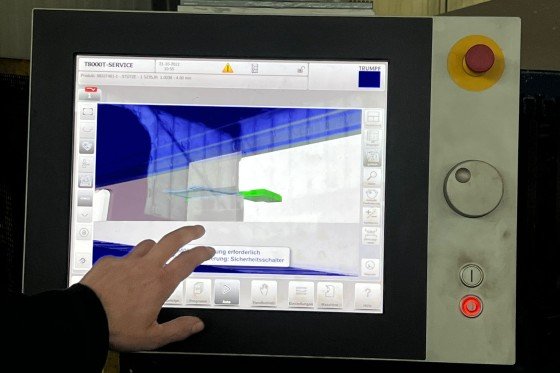

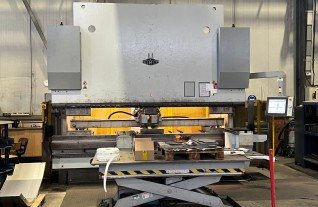

Press brake TRUMPF EHT - T8000Te 3D TOUCH
MACH-ID 7210| Make: | TRUMPF EHT |
| Type: | T8000Te 3D TOUCH |

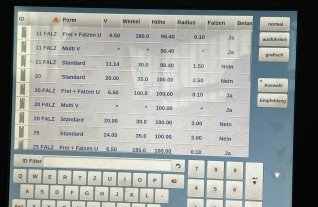

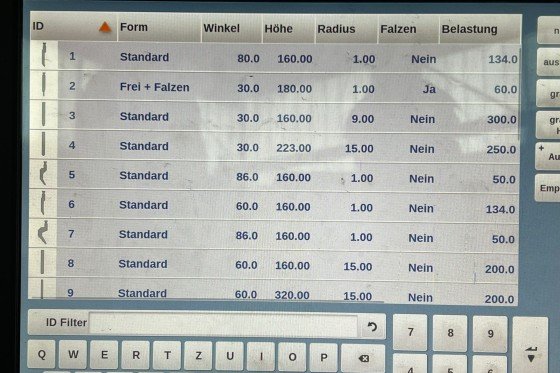

- 2019 new TRUMPF T8000Te TOUCH

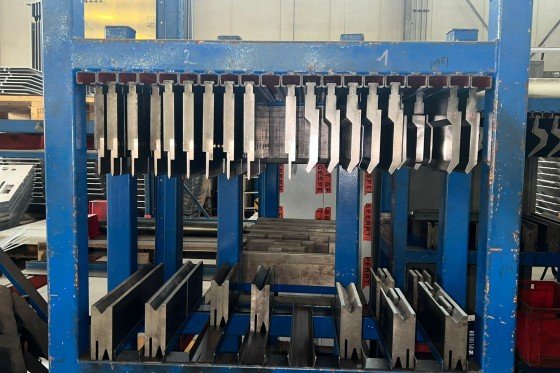

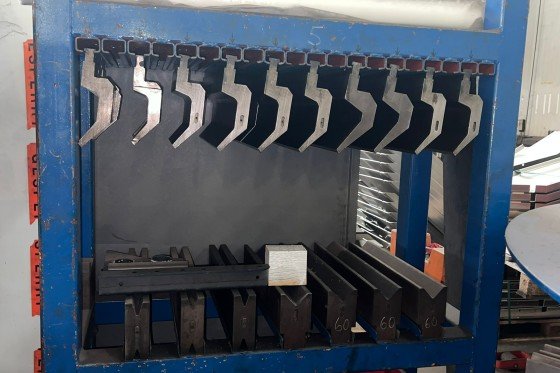

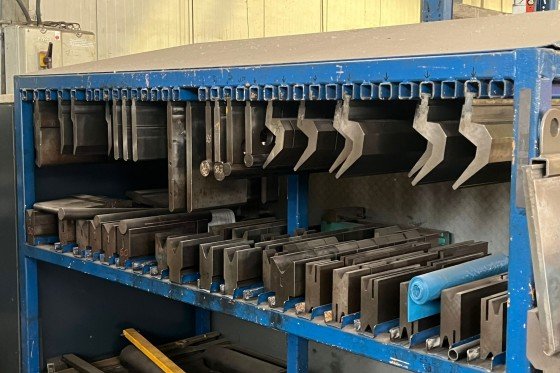

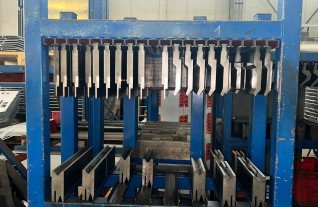

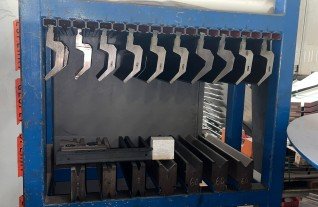

- Large upper toolling set

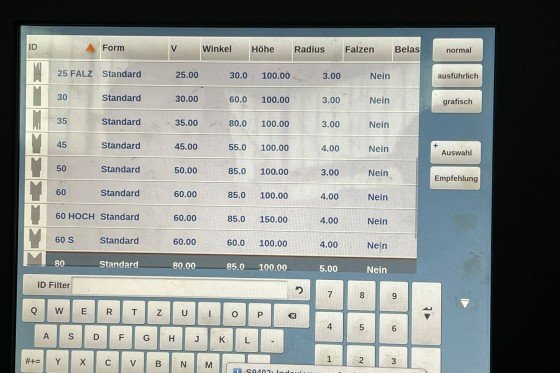

- Large lower tooling set
- Bending arm front side 45 Gr
- Over floor machine NOT in ground
Specifications
Max. bending length
4050 mm
159.449 inch
Distance between column
3550 mm
139.764 inch
Max. pressing force
320 T
320 T
Dis. Beam - Table
730 mm
28.74 inch
Beam stroke
350 mm
13.78 inch
Troth beam
400 mm
15.748 inch
Approch speed
100 mm/min.
100 mm/min.
Working speed
10 mm/min.
10 mm/min.
Return speed
100 mm/min.
100 mm/min.
Adjustment X-Axis back gauge
1000 mm
39.37 inch
Number of controlled axis
8
8
Crowning
Yes
Yes
Hydraulic toolclamping
Yes
Yes
Dimensions (Estimate)
Length
6735 mm
265.157 inch
Width
4200 mm
165.354 inch
Height
3825 mm
150.59 inch
Weight
24850 kg
54809.7 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
