This machine is sold

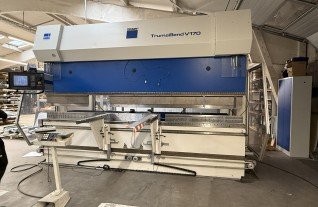

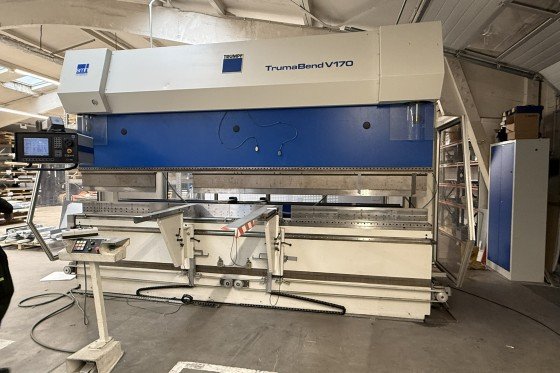

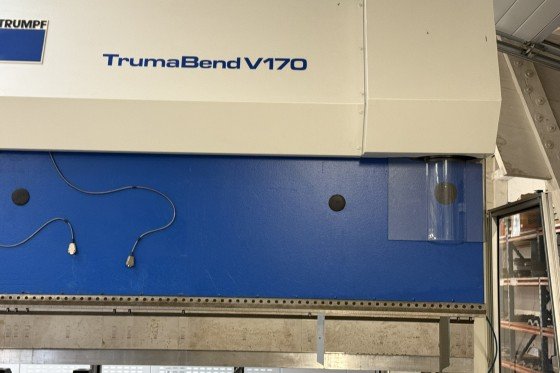

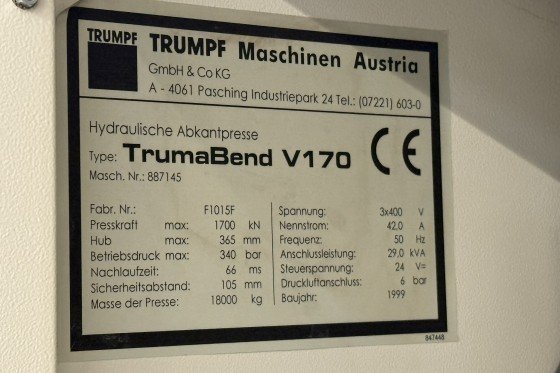

Press brake TRUMPF - TrumaBend V170

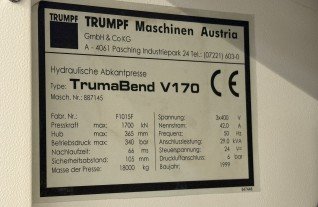

MACH-ID 8982| Make: | TRUMPF |
| Type: | TrumaBend V170 |

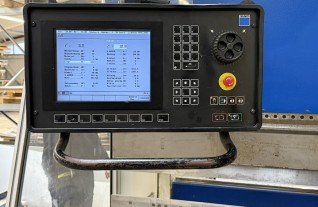

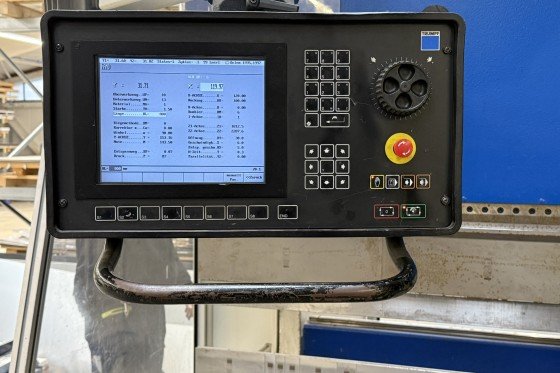

| Control: | Delem DA -69 |
| Year: | 1999 |

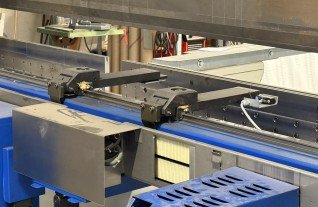

- CNC Pressbrake 8 Axis Y1 /Y2 / X / R / I / Z1 / Z2 / Crowning

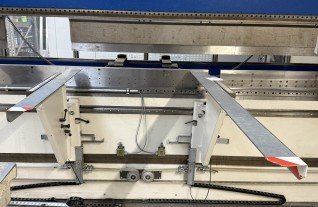

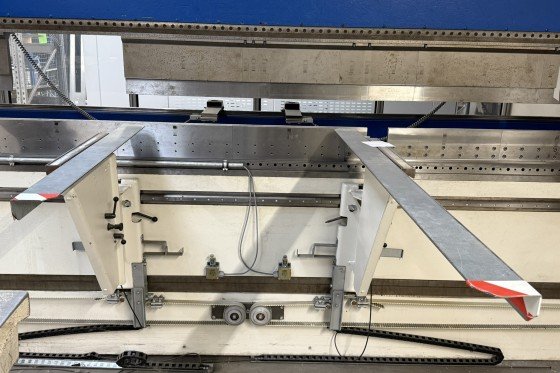

- Motorized sheet support arms front Left & Right
- Pneumtic lower die table adjustment

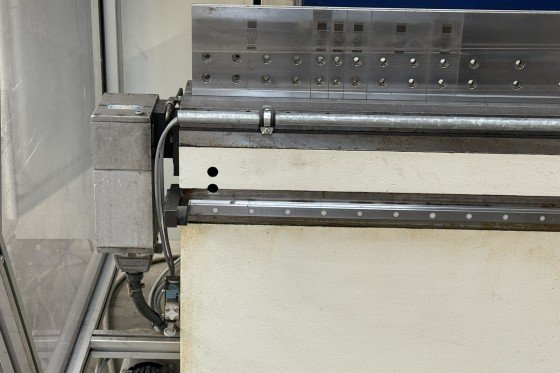

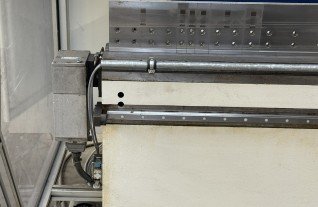

- Hydraulic top tool clamping
- Optional tooling package

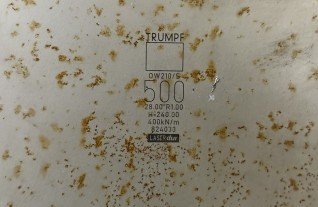

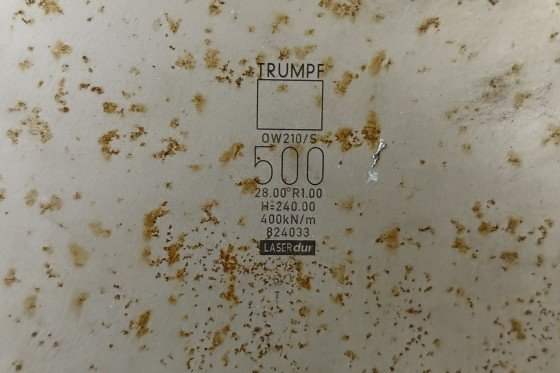

- Top tool TRUMPF OW210/S with 28 Gr and R 1.00 ( full length)

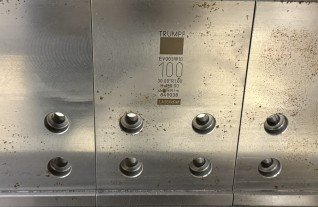

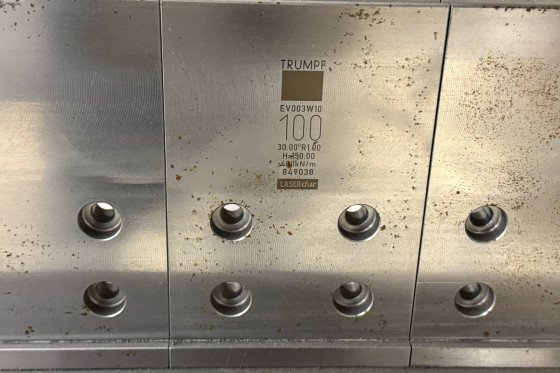

- Lower tool TRUMPF EVO 3W10 with 30 Gr and R 1.00 (full length)

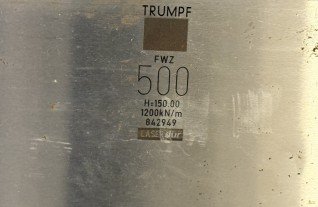

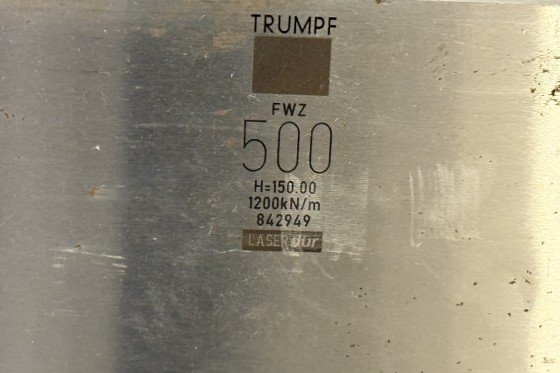

- Closing tool TRUMPF FWZ with 1200 kN/m (only 1500 mm)
Specifications
Max. bending length
4080 mm
160.63 inch
Distance between column
3680 mm
144.882 inch
Max. pressing force
170 T
170 T
Dis. Beam - Table
535 mm
21.063 inch
Beam stroke
365 mm
14.37 inch
Table Width
120 mm
4.724 inch
Troth beam
410 mm
16.142 inch
Approch speed
200 mm/min.
200 mm/min.
Working speed
11 mm/min.
11 mm/min.
Return speed
135 mm/min.
135 mm/min.

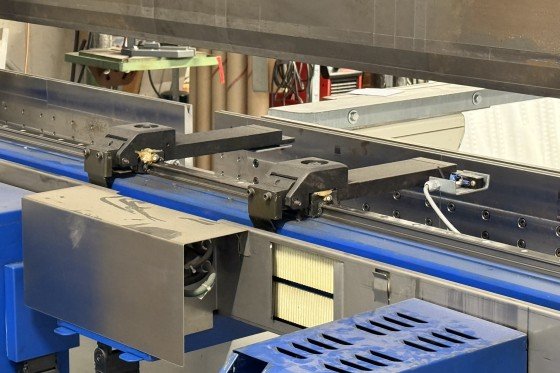

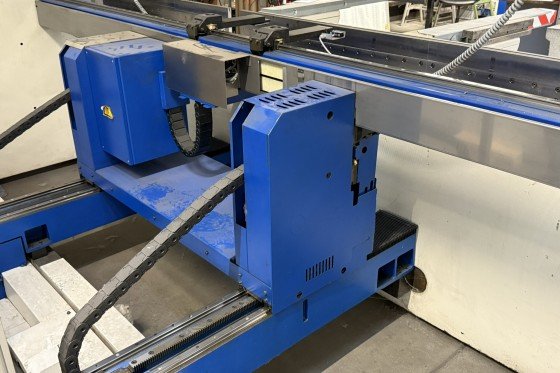

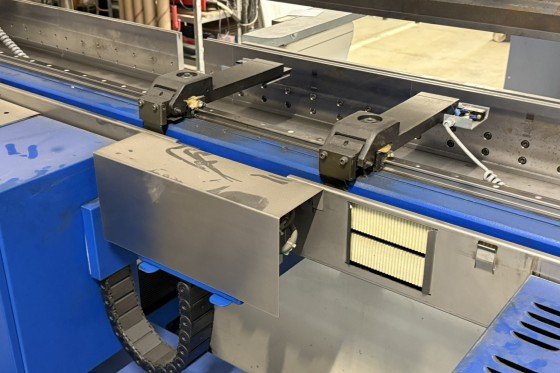

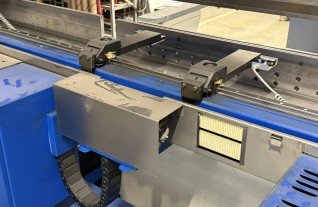

Adjustment X-Axis back gauge
0 - 600 mm
0 - 600 inch
Number of controlled axis
6
6
Control
DELEM DA
DELEM DA
Crowning
Yes
Yes
Hydraulic toolclamping
Yes
Yes
Dimensions (Estimate)
Length
5000 mm
196.85 inch
Width
2210 mm
87.008 inch
Height
3100 mm
122.047 inch
Weight
18000 kg
39701.2 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
