This machine is sold

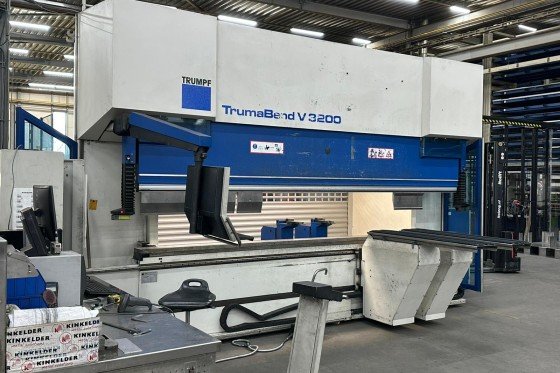

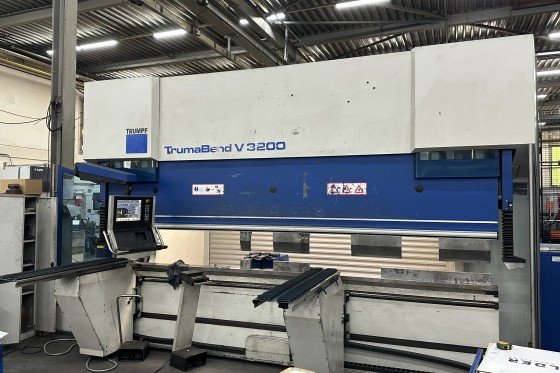

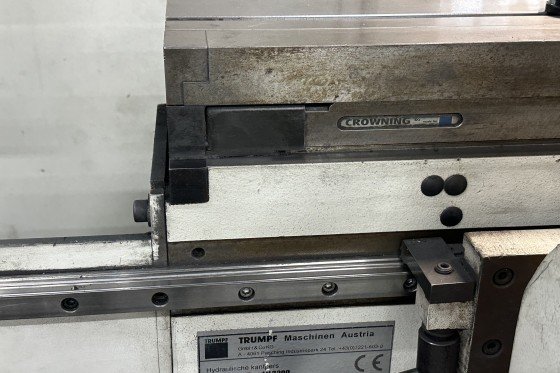

Press brake TRUMPF - Trumabend V3200
MACH-ID 7761| Make: | TRUMPF |
| Type: | Trumabend V3200 |

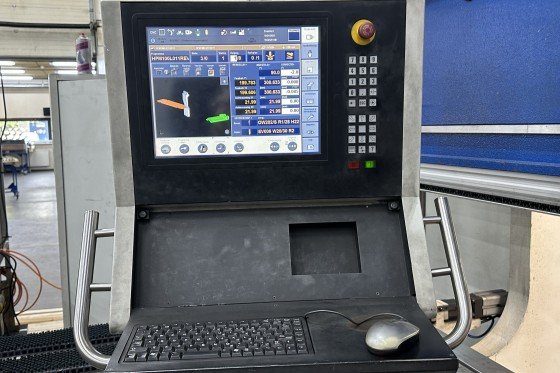

| Control: | TASC 6000 |
| Year: | 2006 |
- 4 Hydraulic cilinders 2 + 2 Left and Right

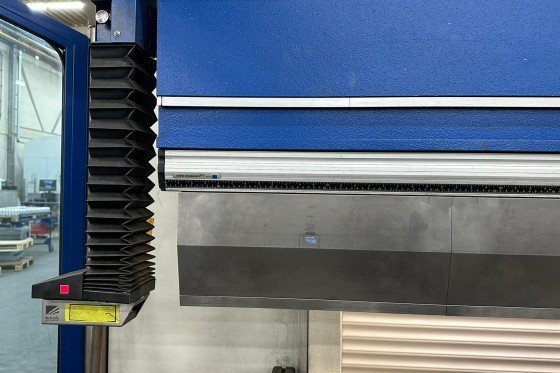

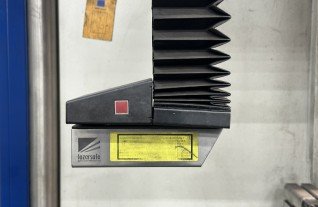

- Lazer safe safety system
- Hydraulic clamping
- Electro hydraulic down stroking

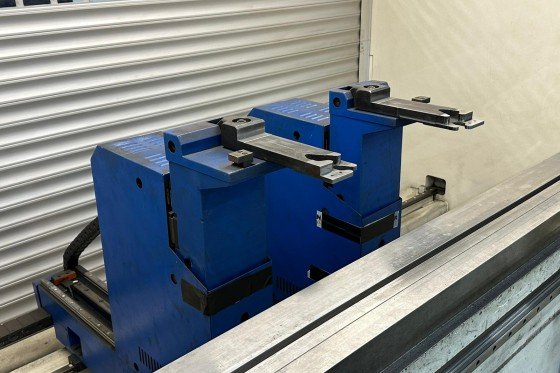

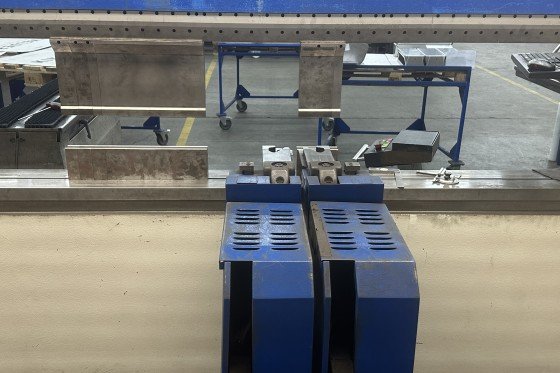

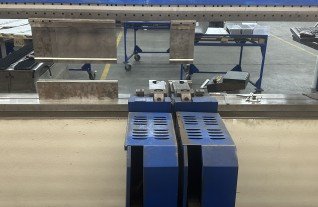

- Backgauge 4-axes system
- Rack and pinion drive for X and R Axes
- Bending help T1 and T2 on front machine
- Availebel after summer 2023
Specifications
Max. bending length
4420 mm
174.015 inch
Distance between column
3680 mm
144.882 inch
Max. pressing force
320 T
320 T
Dis. Beam - Table
735 mm
28.937 inch
Beam stroke
445 mm
17.52 inch
Table Width
200 mm
7.874 inch
Troth beam
420 mm
16.535 inch
Approch speed
220 mm/min.
220 mm/min.
Working speed
10 mm/min.
10 mm/min.
Return speed
220 mm/min.
220 mm/min.
Adjustment X-Axis back gauge
860 mm
33.858 inch
Number of controlled axis
X, R, T1, T2
X, R, T1, T2
Crowning
Yes
Yes
Hydraulic toolclamping
Wila New standard
Wila New standard
Power
30 kW
30 kW
Dimensions (Estimate)
Length
5300 mm
208.661 inch
Width
1950 mm
76.772 inch
Height
3200 mm
125.984 inch
Weight
22800 kg
50288.1 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
