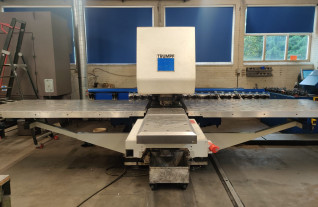

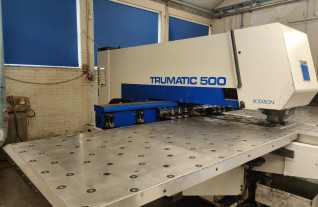

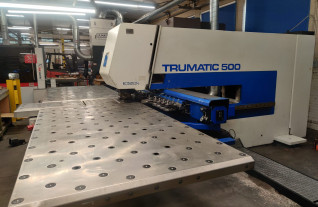

Nibbling machine TRUMPF - TRUMATIC 500 Rotation
CNC TRUMATIC 500 Punching 2535 x 1280 x 8 mm MACH-ID 6511| Make: | TRUMPF |
| Type: | TRUMATIC 500 Rotation |
| Year: | 2000 |
Specifications
Table load
200
200
Working area X Axis
2535 mm
99.803 inch
Working area Y Axis
1280 mm
50.394 inch
Punching force
22 T
22 T
Maximum sheet thickness
8 mm
0.315 inch
Turret position
18
18
Positioning speed X and Y Axis
90000 / 60000 mm/min.
90000 / 60000 mm/min.
Change speed revolver
1,5 - 5 Rpm
1,5 - 5 Rpm
Dimensions (Estimate)
Length
6900 mm
271.653 inch
Width
5800 mm
228.346 inch
Height
2200 mm
86.614 inch
Weight
11000 kg
24261.8 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
- C Axis 360 Gr
- Stoke 1mm pitch = 900/Min
- Stroke 25 mm pitch = 445 /Min
- Marking = 1700 /Min
