This machine is sold

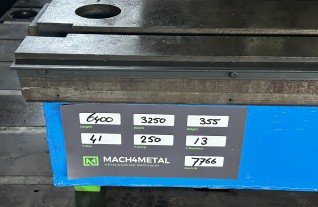

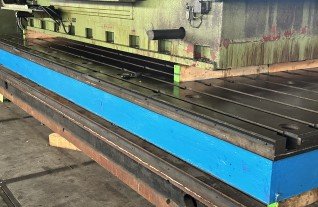

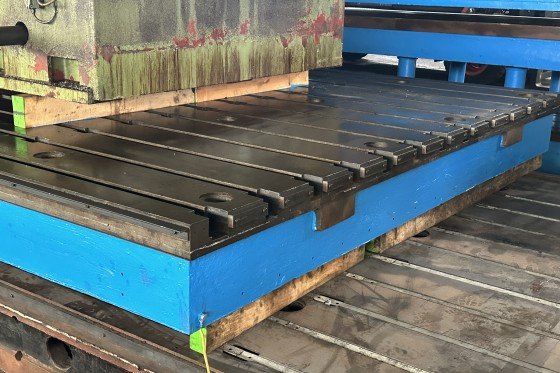

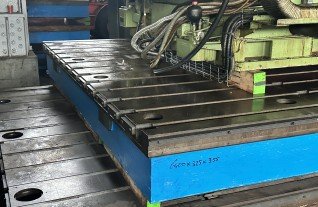

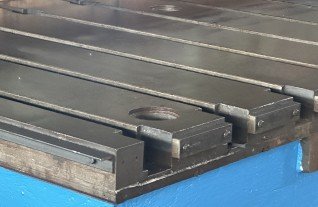

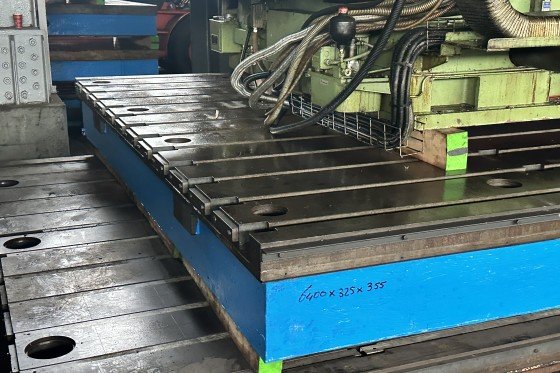

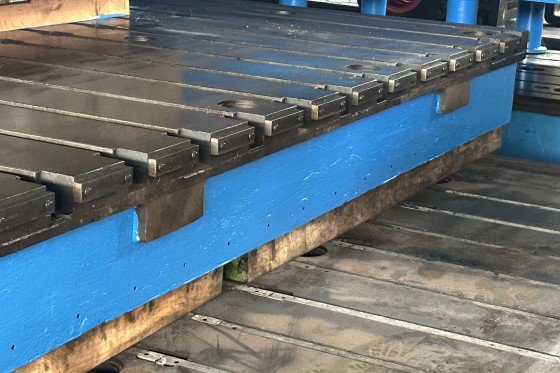

T slotted bed plate ASQUITH - SDT
MACH-ID 7766| Make: | ASQUITH |
| Type: | SDT |
| Year: | 1980 |
Specifications
Floorplate Length
6400 mm
251.968 inch
Floorplate Width
3250 mm
127.953 inch
Height
355 mm
13.976 inch
No. Of T-slots
13
13
Distance from T to T-slot / Jump
250 mm
9.843 inch
T -slot size
41 mm
1.614 inch
Weight a plate approx.
16000 kg
35289.9 lbs
Number of matching pieces
1
1
Dimensions (Estimate)
Length
6400 mm
251.968 inch
Width
3250 mm
127.953 inch
Height
355 mm
13.976 inch
Weight
16000 kg
35289.9 lbs
