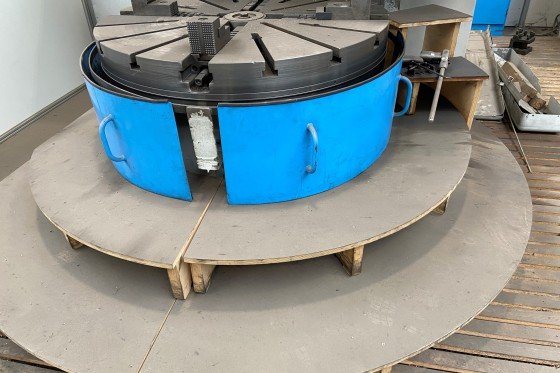

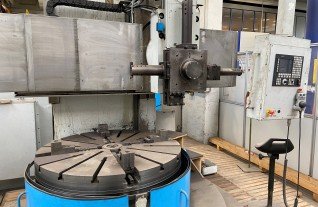

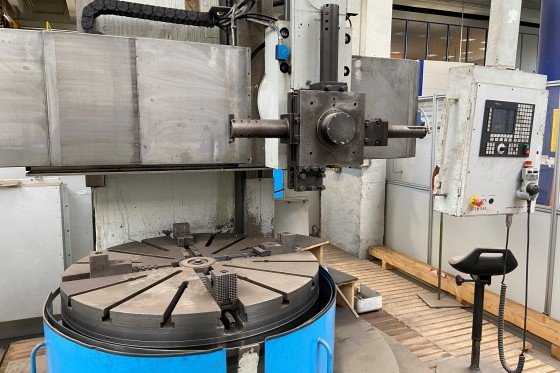

CNC Vertical lathe SCHIESS FRORIEP - DKE 125
MACH-ID 7655| Make: | SCHIESS FRORIEP |
| Type: | DKE 125 |
| Control: | Fagor 8055 |
| Year: | 1972 |
- 4 position revolver
- Fagor 8055 controller with remote control
- Table load 8000 Kg
- Central lubrication
Specifications
Max. turning Ø
1600 mm
62.992 inch
Table Ø
1400 mm
55.118 inch
Horizontal movement support
355 mm
13.976 inch
ATC / revolver
4
4
Speeds / ranges
315 Rpm
315 Rpm
Power
55 kW
55 kW
Maximum turning height
1150 mm
45.276 inch
Dimensions (Estimate)
Length
3800 mm
149.606 inch
Width
3700 mm
145.669 inch
Height
3500 mm
137.795 inch
Weight
18000 kg
39701.2 lbs
