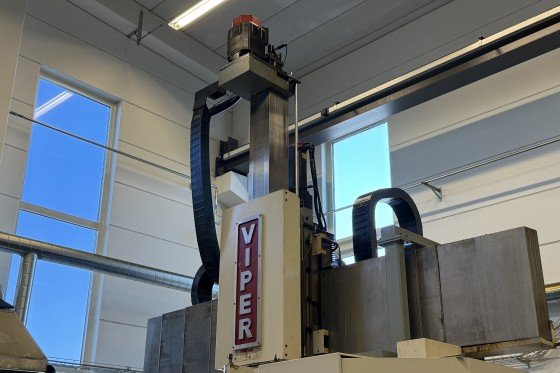

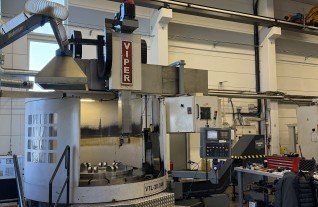

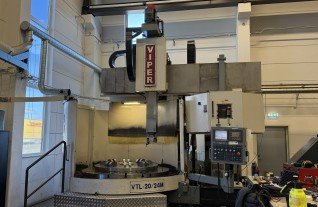

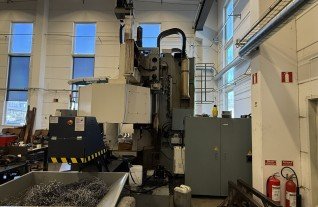

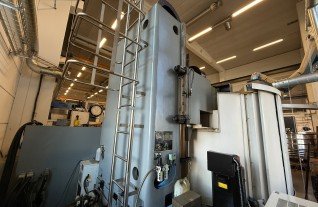

CNC Vertical lathe VIPER - VTL 20/24 M

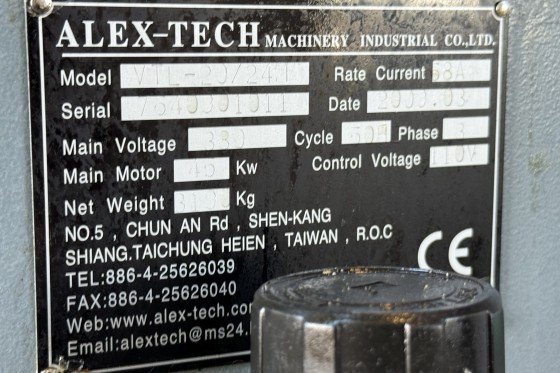

MACH-ID 9060| Make: | VIPER |
| Type: | VTL 20/24 M |

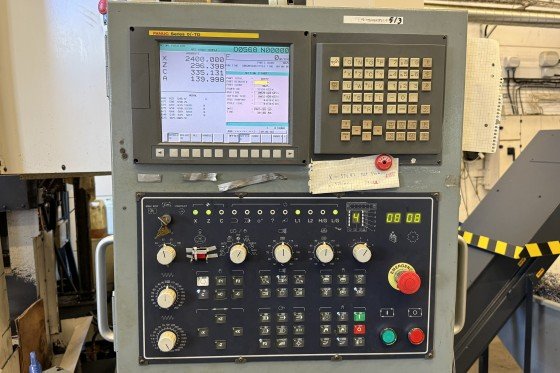

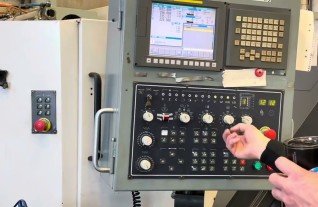

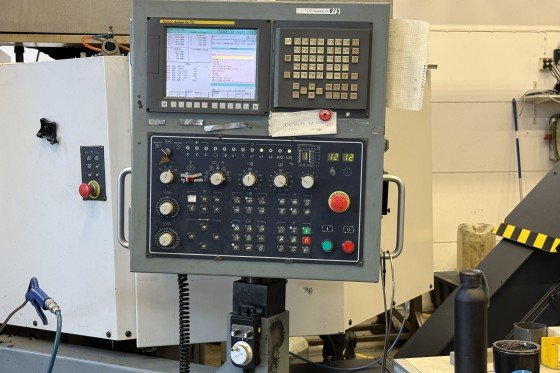

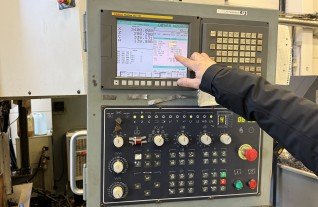

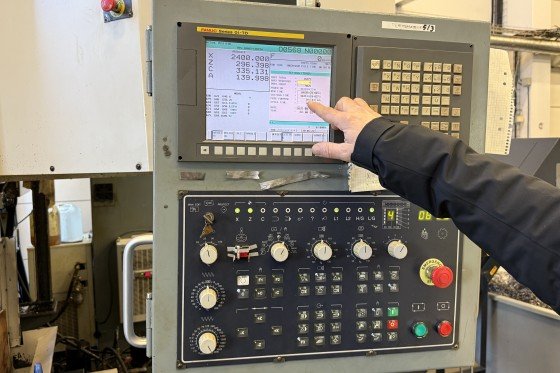

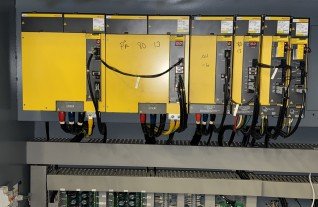

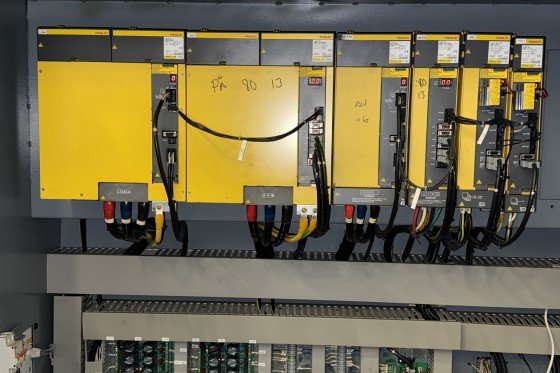

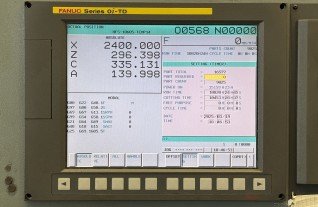

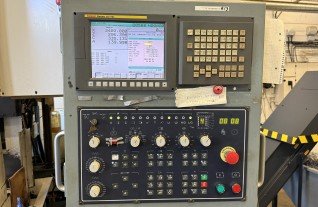

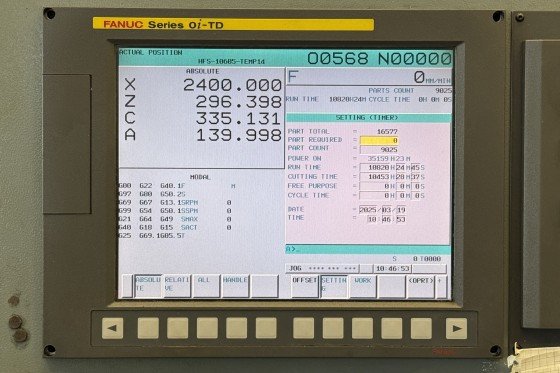

| Control: | Fanuc Oi-TD |
| Year: | 2008 |
- X Stroke 1835 mm
- Z Stroke 1000 mm
- Table load 20 Ton

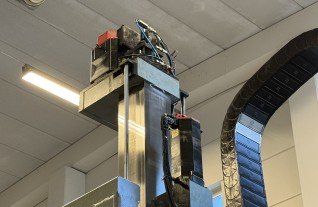

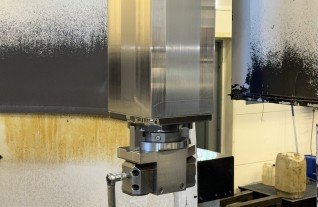

- Ram size 230 x 230 mm
- Stroke crossrail 800 mm
- Stroke crossrail in 5 steps each 200 mm

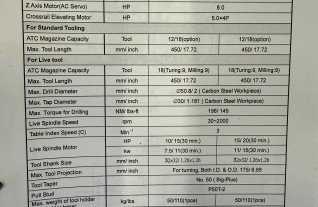

- Live tools 2000 Rpm
- Power live tools 15 kW

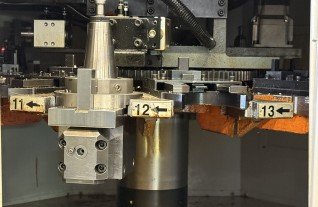

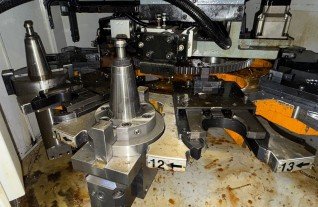

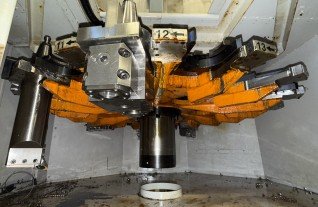

- ATC 18 station max L = 450 mm
- Taper BT50 BIG PLUS
- Full C-Axis 360.000
- Under power in AEROSPACE precision plant
- 2020 Table bearing replaced
- 2020 Ram bearing replaced

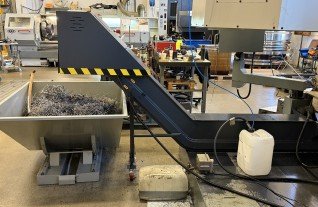

- 2025 new chip conveyor

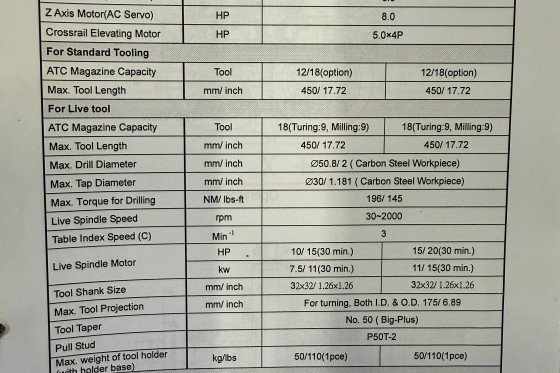

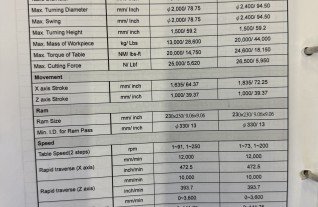

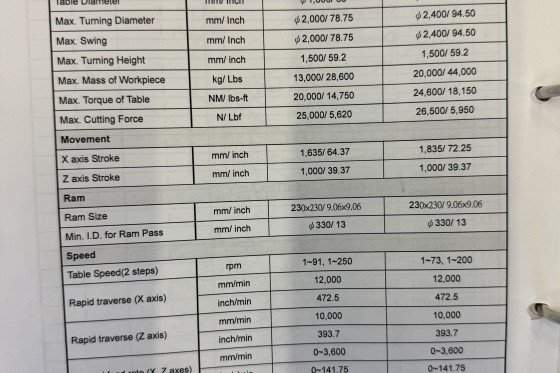

Specifications
Max. turning Ø
2400 mm
94.488 inch

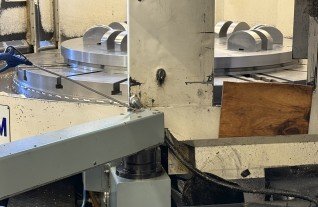

Table Ø
2000 mm
78.74 inch
ATC / revolver
18
18
Speeds / ranges
200 Rpm
200 Rpm
Power
48 kW
48 kW
Maximum turning height
1500 mm
59.055 inch
C-Axis
360000 °
360000 °

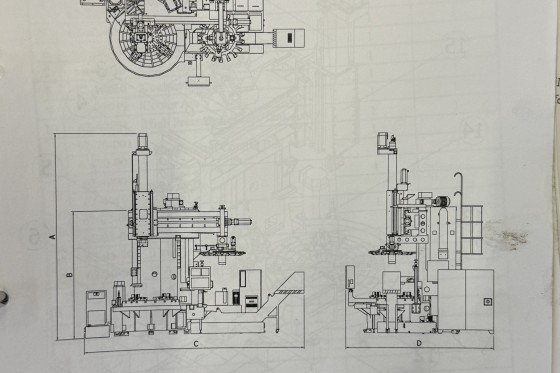

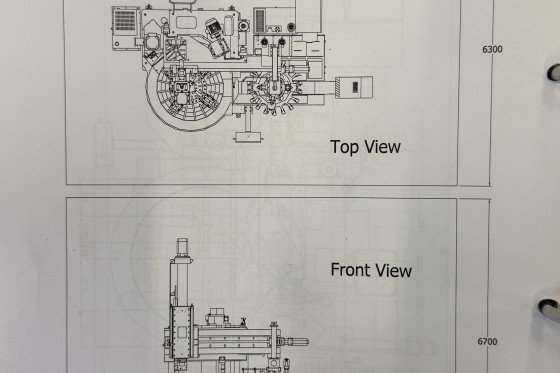

Dimensions (Estimate)
Length
9300 mm
366.141 inch
Width
6300 mm
248.031 inch
Height
6700 mm
263.779 inch
Weight
48000 kg
105869.8 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
