Deze machine is verkocht

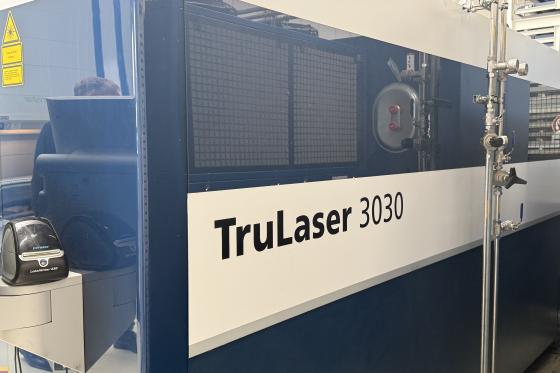

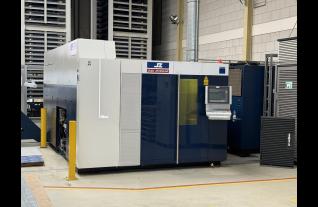

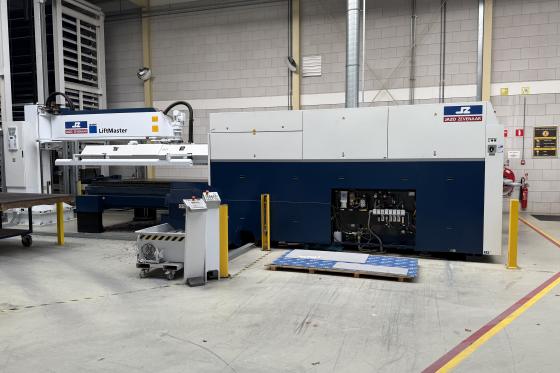

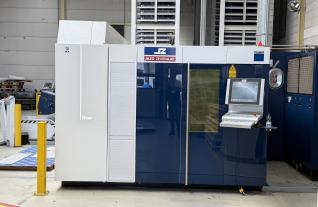

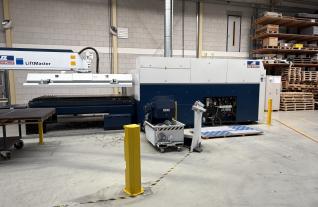

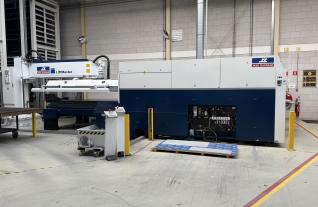

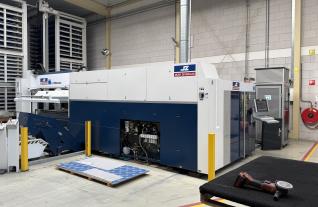

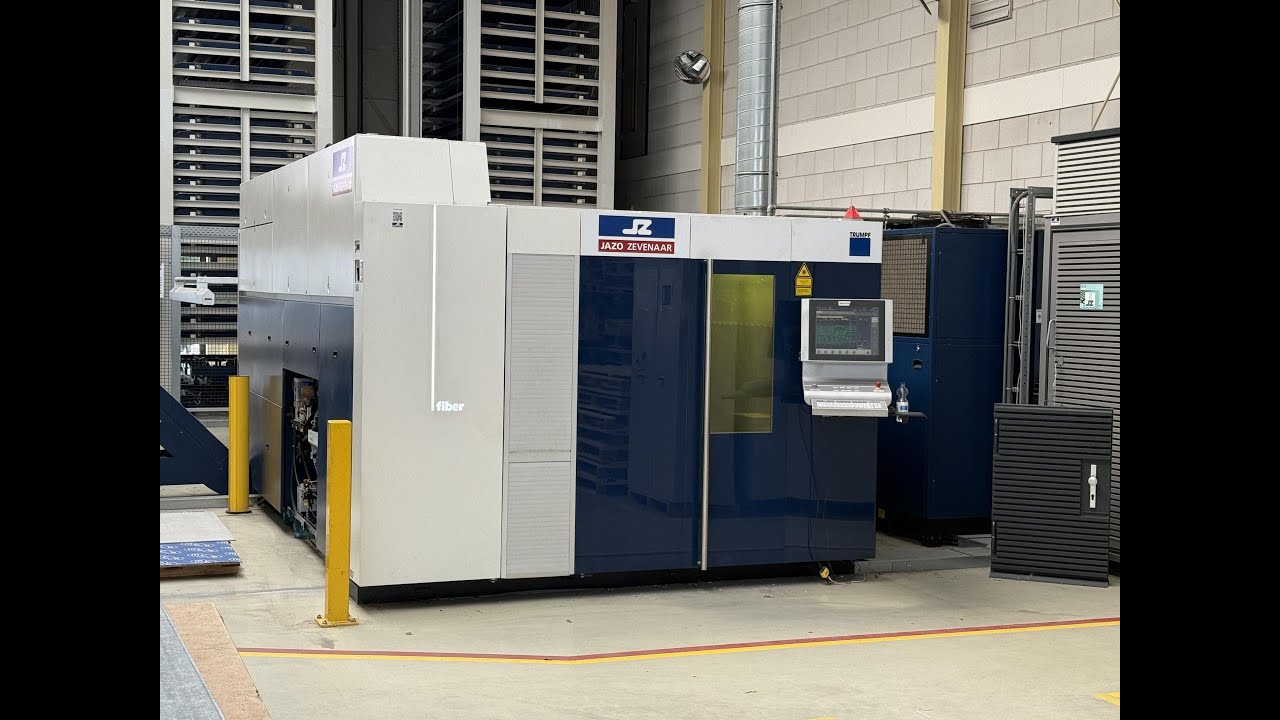

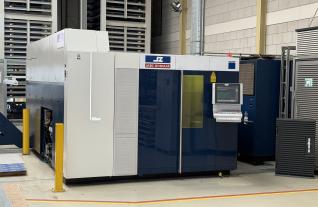

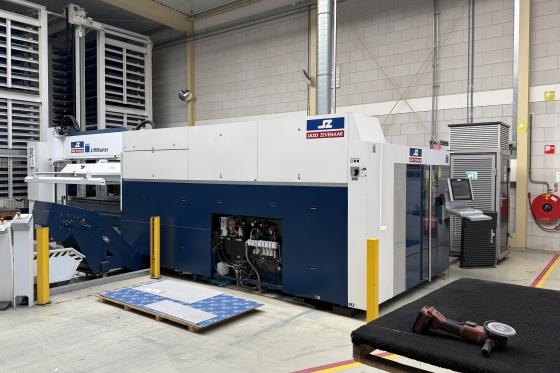

Lasersnijder TRUMPF - TruLaser 3030
MACH-ID 9235| Merk: | TRUMPF |
| Type: | TruLaser 3030 |

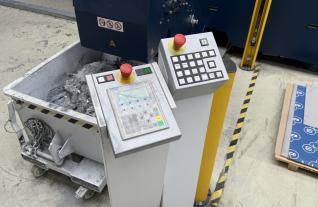

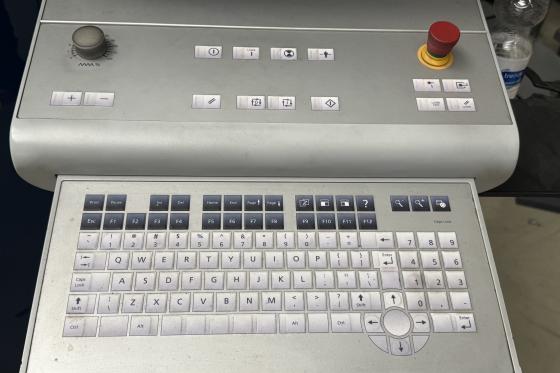

| Besturing: | TrueTops |
- High speed cutting with precision
- Tower and Sheetmaster NOT included
- Low operation cost
- Compact foot print

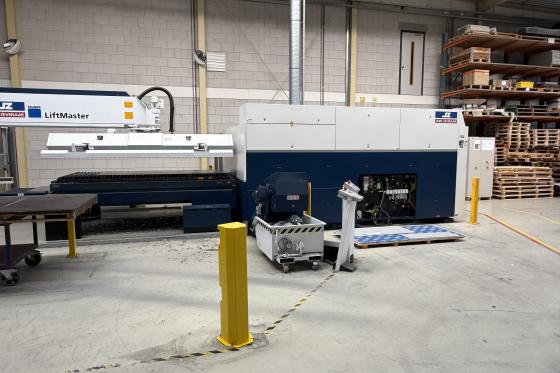

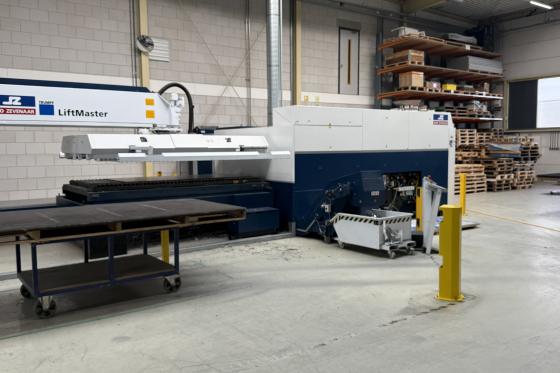

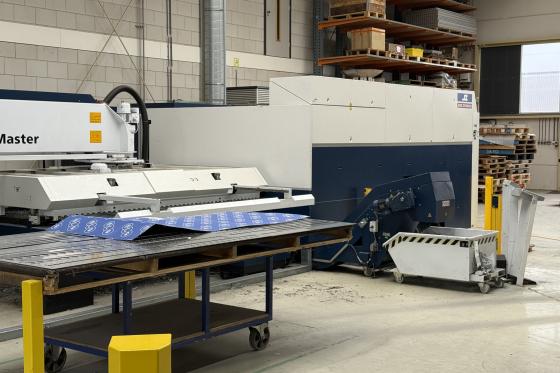

- Change table ( liftmaster and tower not included
- Possible to cut reflective material (copper, brass)
- Mild steel : 20 mm
- Stainless: 15 mm
- Aluminium: 12 mm
- Copper / Brass: 6 mm

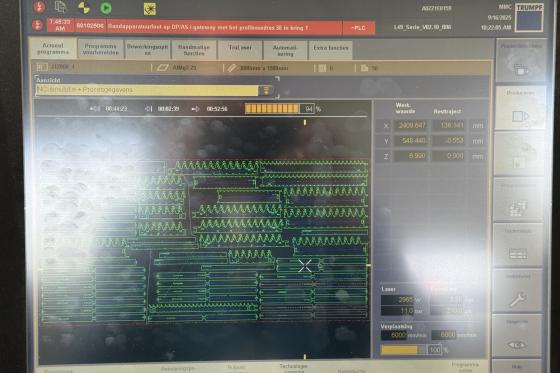

- - User-friendly interface with graphical programming
- Supports automatic nesting, cutting parameter libraries, and real-time diagnostics
- Interfaces seamlessly with TRUMPF's automation modules and networking systems
- Real-time control of laser, motion, and auxiliary systems
Specificaties
Werkbereik X as
3000 mm
118.11 inch
Werkbereik Y as
1500 mm
59.055 inch
Werkbereik Z as
115 mm
4.528 inch
Tafellengte
3000 mm
118.11 inch
Tafelbreedte
1500 mm
59.055 inch
Vermogen bron
3 kW / Amp
3 kW / Amp
Voeding X-as
170000 mm/min.
170000 mm/min.
Voeding Y-as
170000 mm/min.
170000 mm/min.
Voeding Z-as
170000 mm/min.
170000 mm/min.
Beladingsarm
No
No
Platen magazijn
No
No
Besturing
TrueTops
TrueTops
Uren bron
25000 H
25000 H
Afmetingen (Schatting)
Lengte
9000 mm
354.33 inch
Breedte
5000 mm
196.85 inch
Hoogte
2200 mm
86.614 inch
Gewicht
7650 kg
16873 lbs
Belangrijk: De informatie op deze pagina is naar beste vermogen en overtuiging verkregen en waar nodig verkregen van de fabrikanten.De nauwkeurigheid kan niet worden gegarandeerd maar de informatie wordt te goeder trouw gegeven. Dienovereenkomstig vormt het geen vertegenwoordiging of contractuele voorwaarden.We raden u aan om alle essentiële details te controleren!
- Comparison between fiber laser and CO₂ laser system
- Short wavelength fiber / Co2 1.06 / 10.6 uM
- Fiber is much faster specialy in thin sheet
- Fiber much less running cost 50 % more energy effient
- No mirror or laser gas = less maintenance
-
✅ Choose Fiber If:
- You cut thin to medium sheet metal
- You work with reflective metals like copper or aluminum
- You want faster cutting + lower operating cost✅ Choose CO₂ If:
- You mainly cut thick mild steel
- You need superior edge quality on thick plates
- Your budget is tighter for initial machine cost
