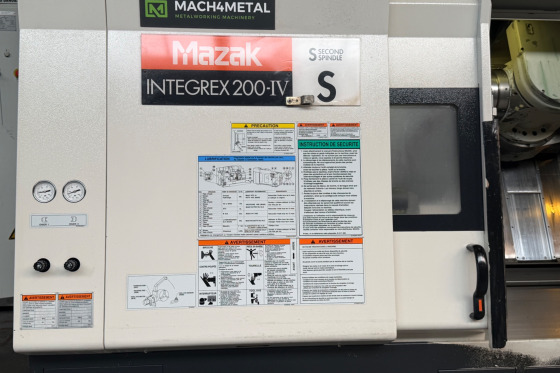

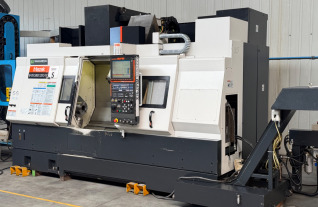

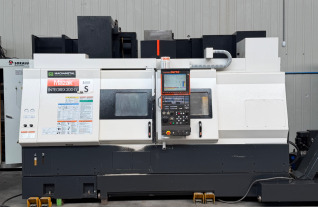

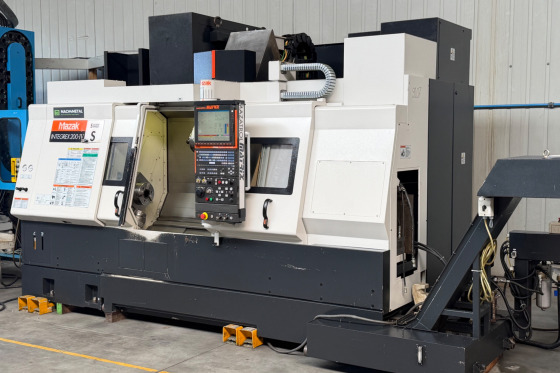

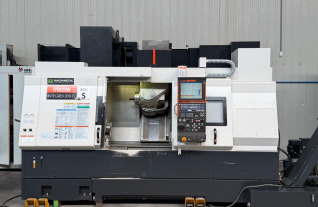

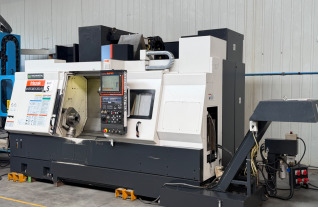

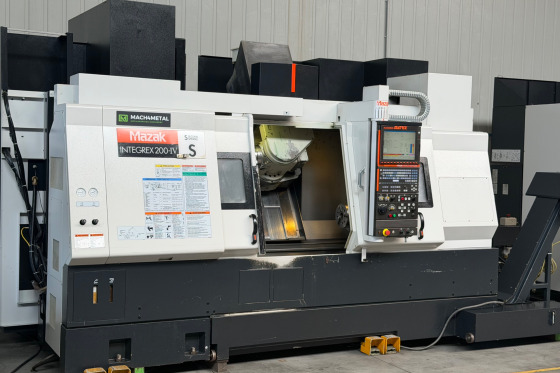

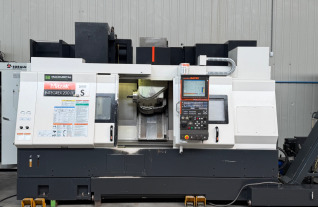

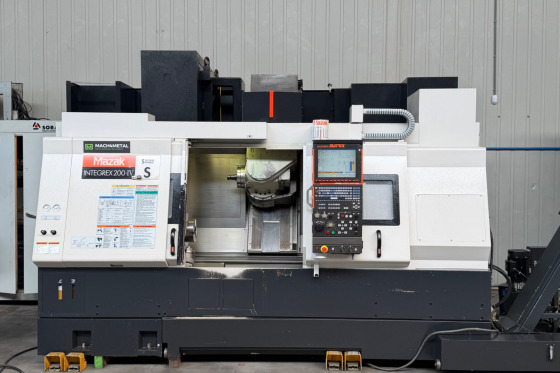

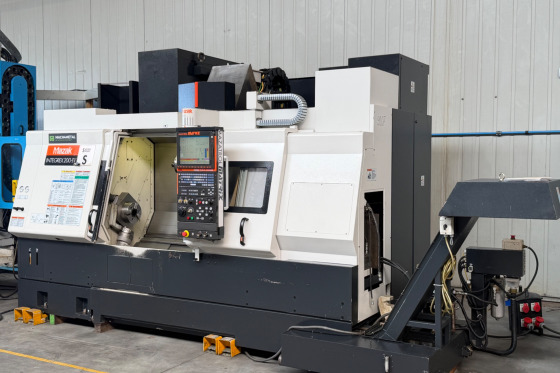

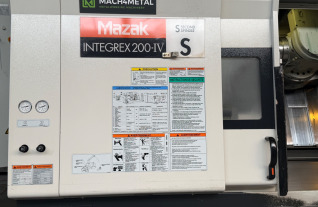

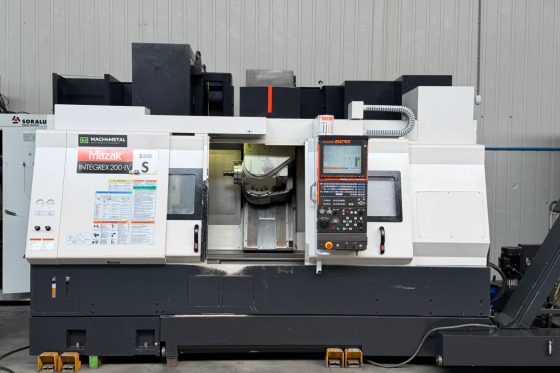

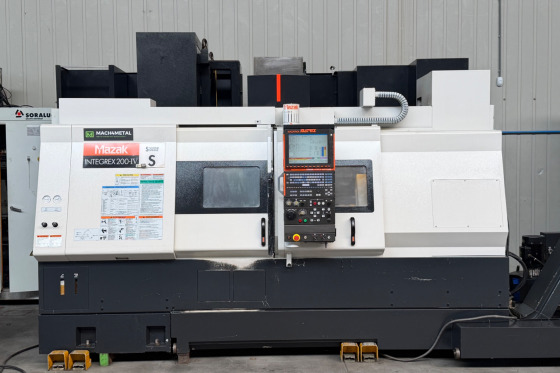

Multi-tasking lathe MAZAK - Integrex 200-4 S

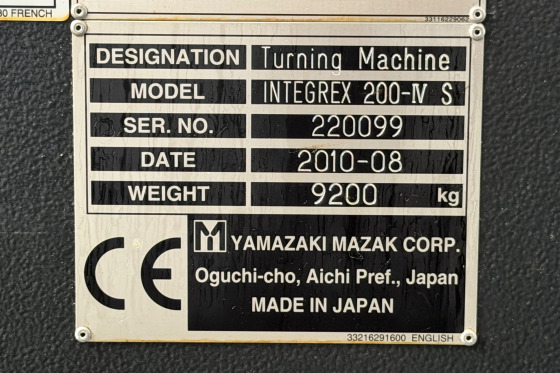

MACH-ID 9107| Make: | MAZAK |
| Type: | Integrex 200-4 S |

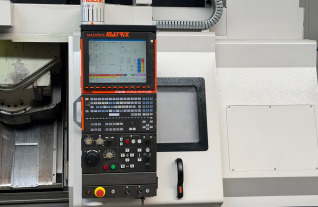

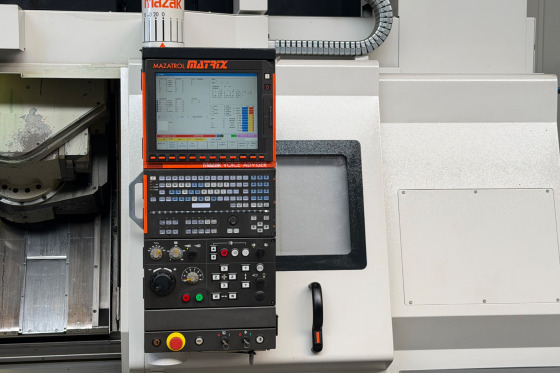

| Control: | MAZATROL MATRIX |
| Year: | 2010 |
Specifications
Max. turning Ø
660 mm
25.984 inch
X-Axis
580 mm
22.835 inch
Y-Axis
160 mm
6.299 inch
Z-Axis
1045 mm
41.142 inch
B Axis
225 °
225 °
Spindle bore
82 mm
3.228 inch
Speedrange
5000 Rpm
5000 Rpm
Spindle power
18.5 kW
18.5 kW
Subspindle speeds
6000 Rpm
6000 Rpm
Subspindle bore
82 mm
3.228 inch
Subspindle power
18.5 kW
18.5 kW
ATC / revolver
80
80
Speed live tools
12.000 Rpm
12.000 Rpm
Dimensions (Estimate)
Length
4500 mm
177.165 inch
Width
2400 mm
94.488 inch
Height
2900 mm
114.173 inch
Weight
9200 kg
20291.7 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
