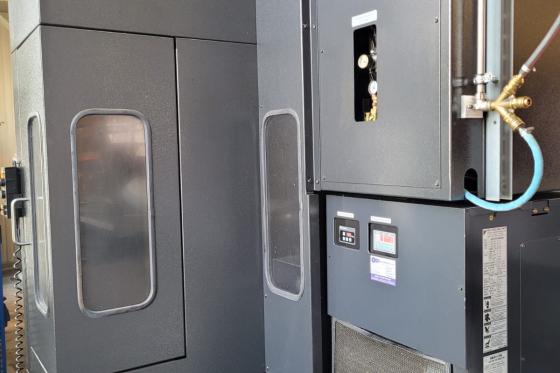

Le tour multibroche MAZAK - INTEGREX 200-4 S
MACH-ID 9810| Marque: | MAZAK |
| Type: | INTEGREX 200-4 S |

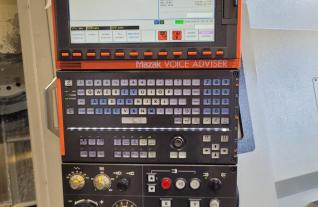

| Commande: | MAZATROL MATRIX |
| YOP: | 2010 |
The Mazak INTEGREX 200-IV S is a multi-tasking CNC turning and milling center with a second/sub-spindle. The “S” indicates the sub-spindle, allowing complete machining of both sides of a workpiece in a single setup.

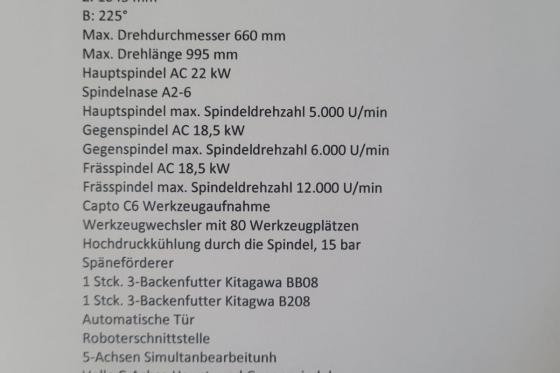

Typical specifications include a maximum machining diameter of approximately 660 mm, a machining length of around 995 mm, and X/Y/Z travels of approximately 580 / 160 / 1,045 mm. The machine features a B-axis milling head, a main spindle and sub-spindle up to approximately 5,000 rpm, and a milling spindle typically capable of 12,000 rpm. It normally uses Capto C6 tooling and is often equipped with a 40-position automatic tool changer.
Machines manufactured around 2006–2010 are commonly equipped with the Mazatrol Matrix CNC control.
The INTEGREX 200-IV S is designed for complete machining of complex components, combining turning, milling, drilling, tapping and 5-axis positioning in one machine. This significantly reduces the number of setups and eliminates the need to move components between separate turning and milling machines.
Caractéristiques
Dimensions (Estimation)
Important : les informations sur cette page ont été obtenues au meilleur de nos connaissances auprès des fabricants. L'exactitude n'est pas garantie mais les informations sont données de bonne foi. En conséquence, cela ne constitue pas une représentation ou des conditions contractuelles. Nous vous recommandons de vérifier tous les détails essentiels !
