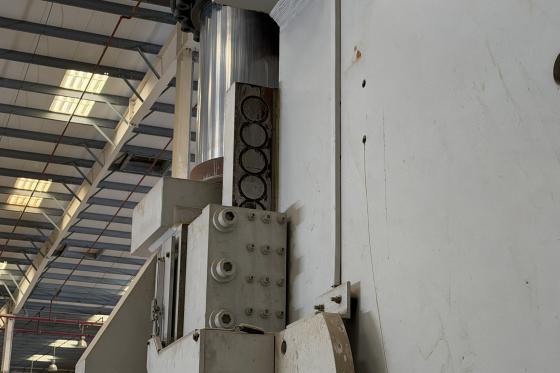

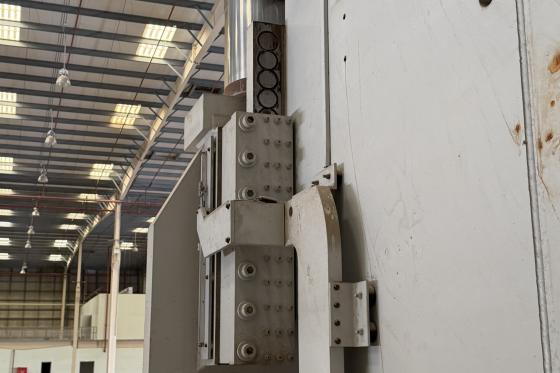

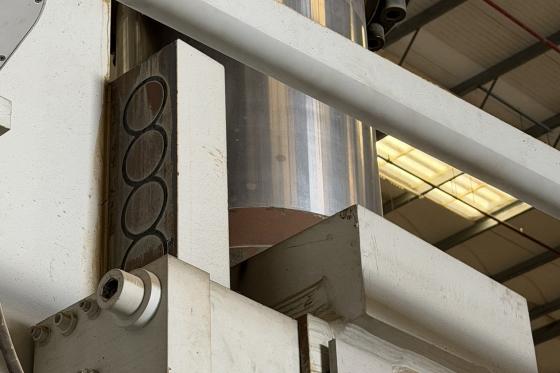

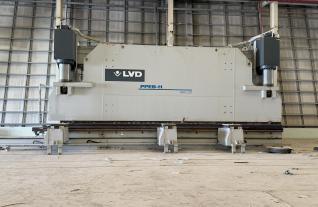

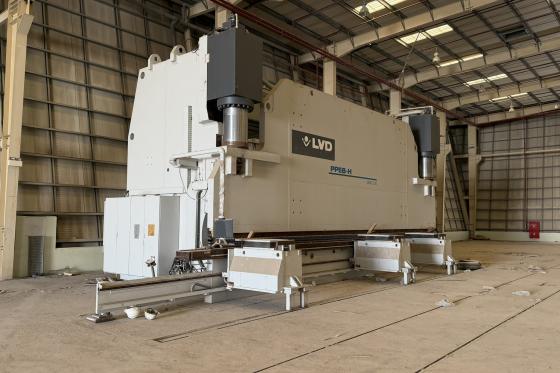

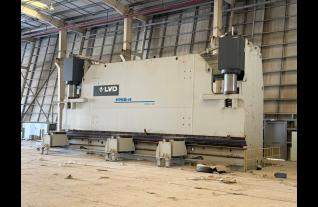

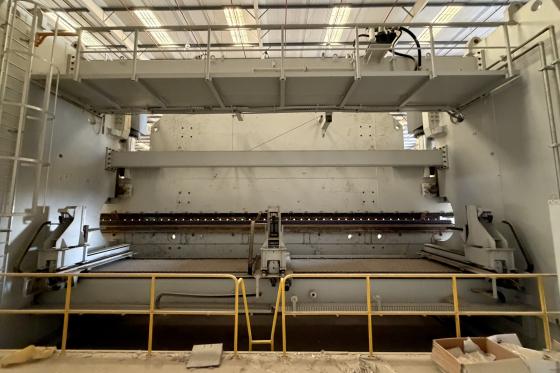

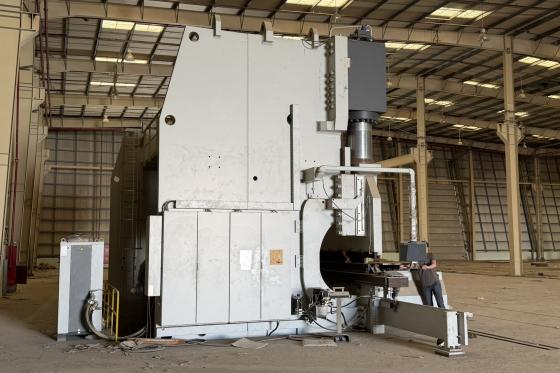

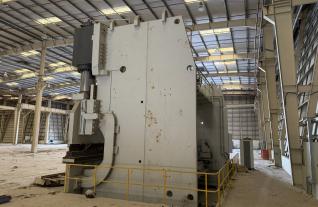

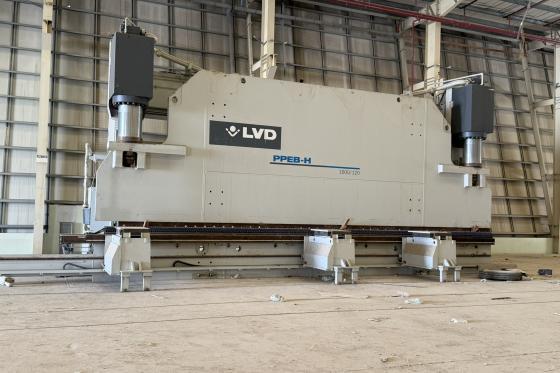

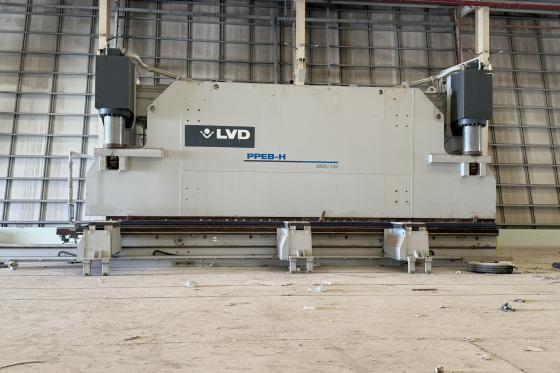

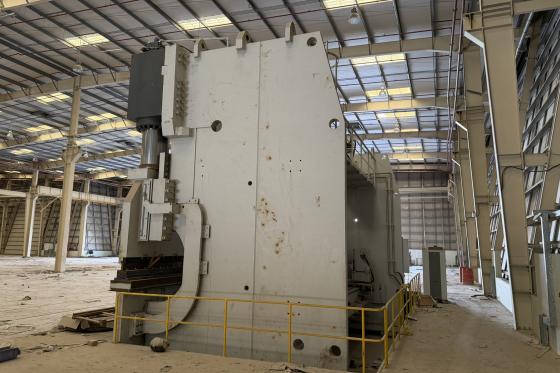

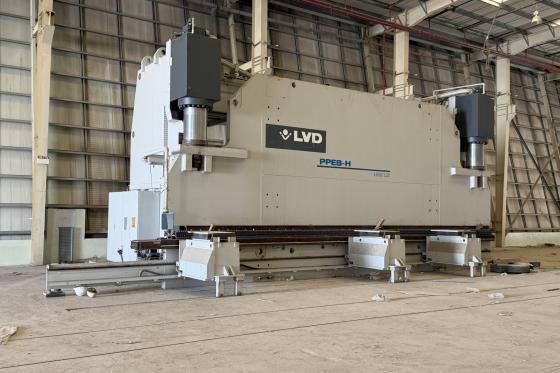

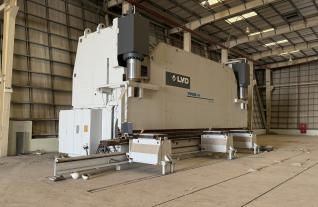

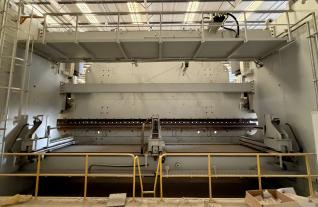

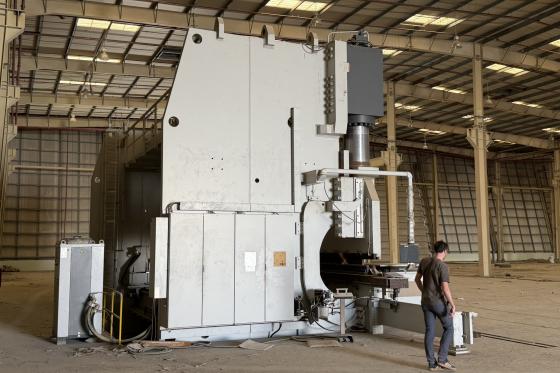

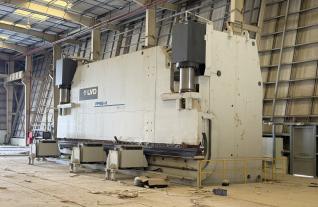

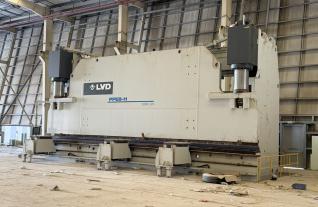

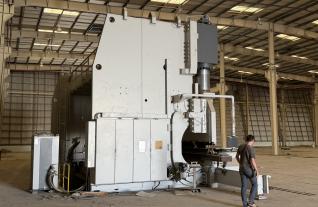

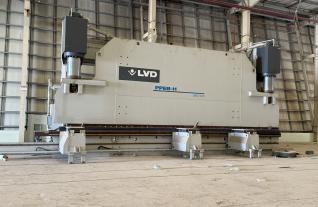

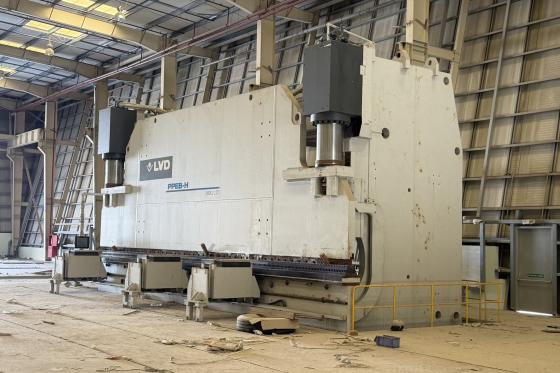

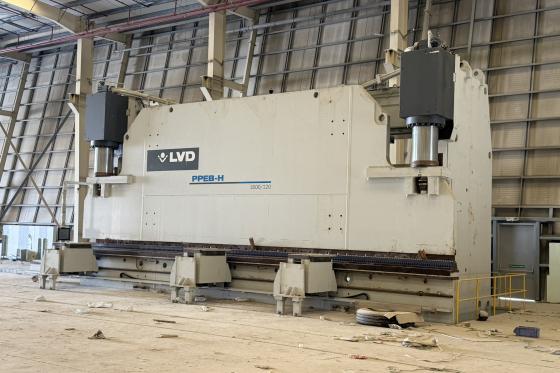

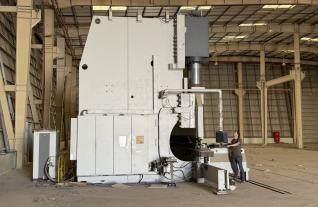

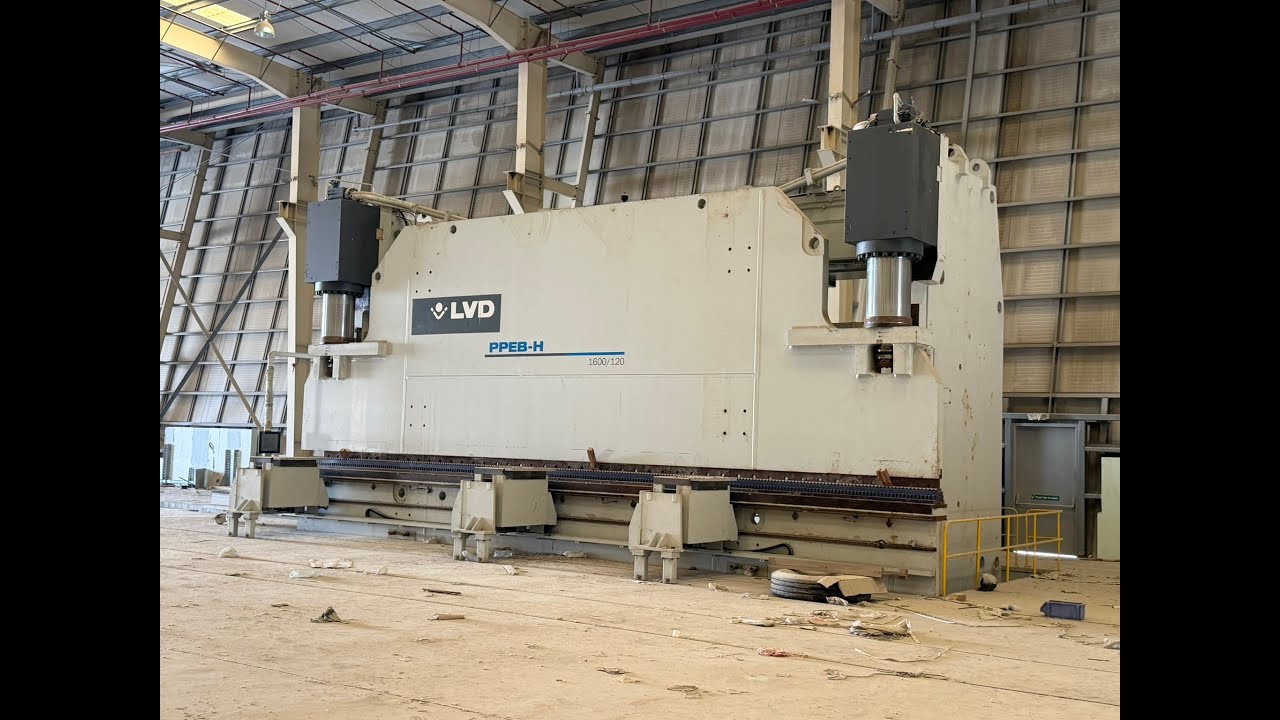

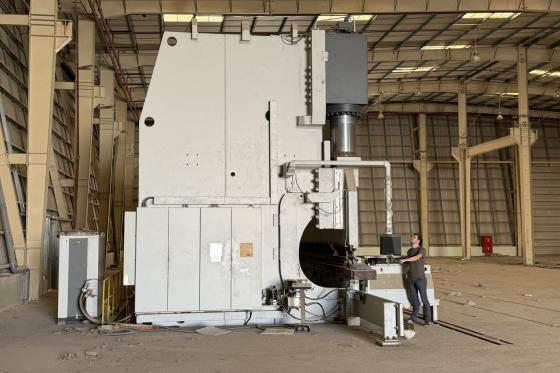

Press brake LVD - PPEB-H
MACH-ID 9400| Make: | LVD |
| Type: | PPEB-H |

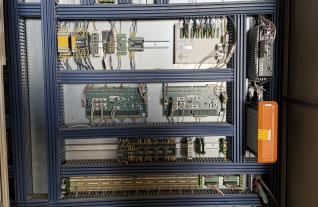

| Control: | CADMAN TOUCH |
| Year: | 2016 |
- Only 100 Working (table/guiders/tooling still in prohibitor)
- Installed never used in production only testing

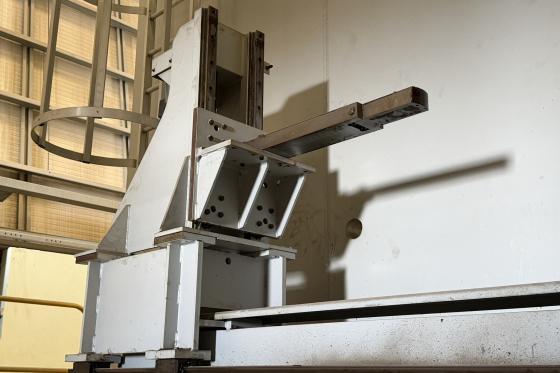

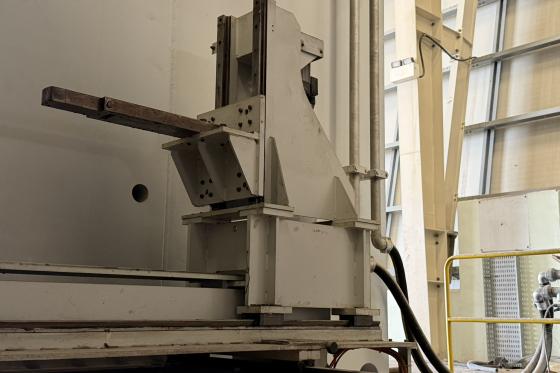

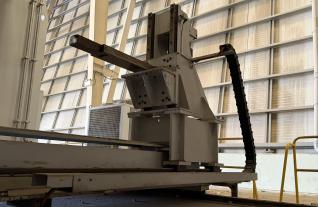

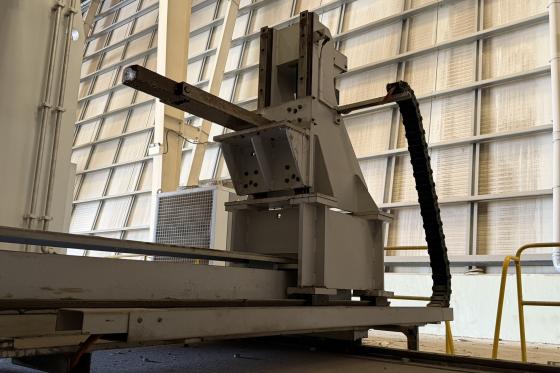

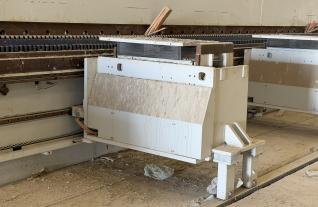

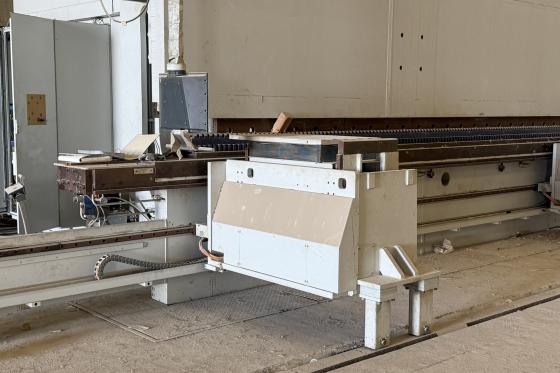

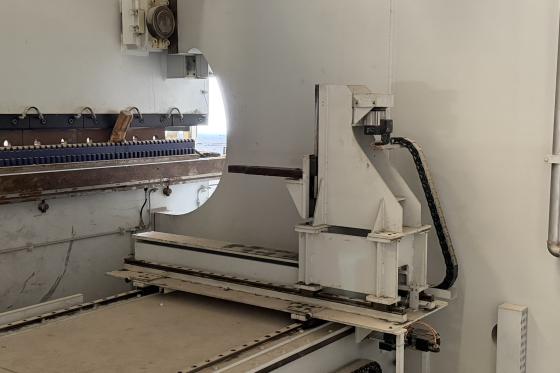

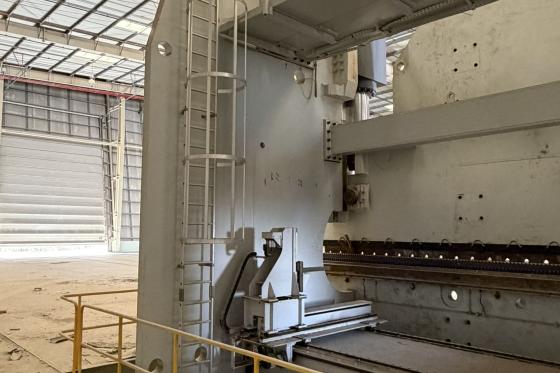

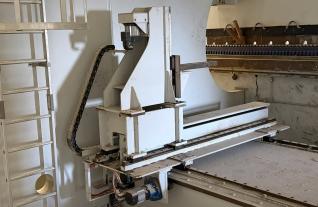

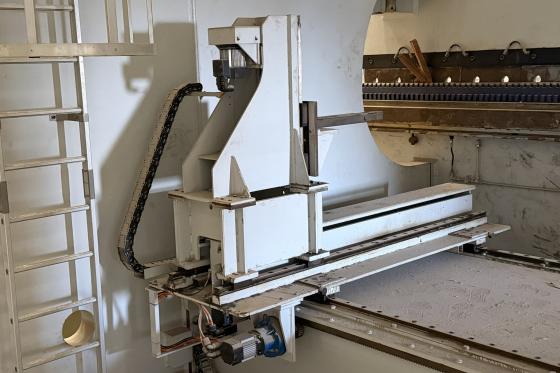

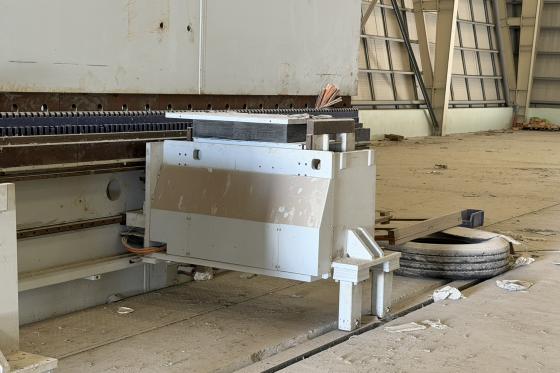

- CNC T1 + T2 + T3 Bending help support arm in front

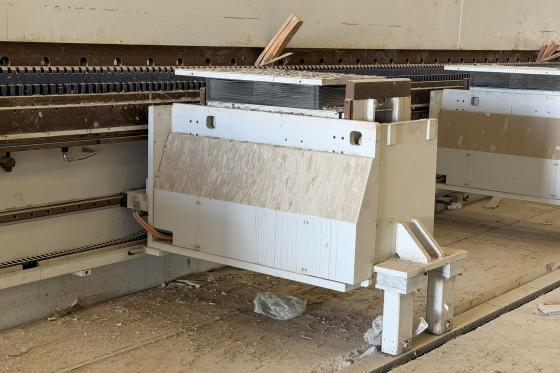

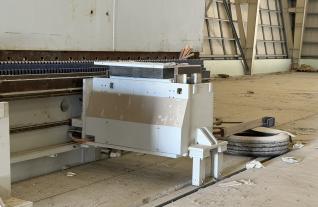

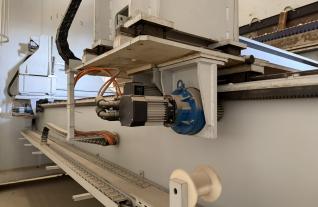

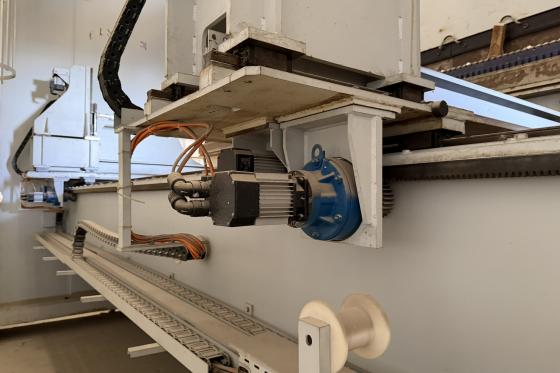

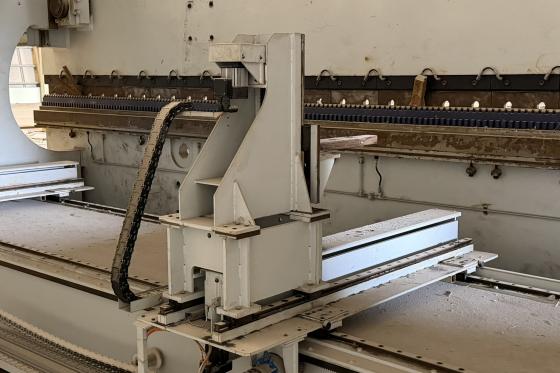

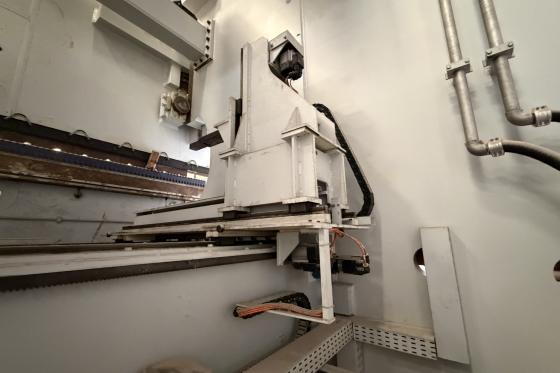

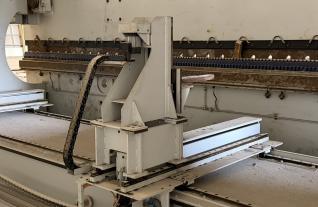

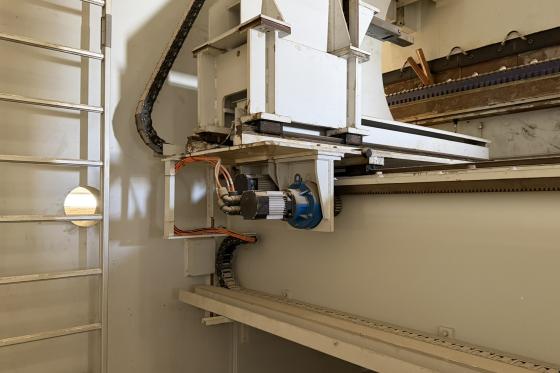

- 3 x HH 2600 Module backgauge 3 x Z1+R1+Delta1

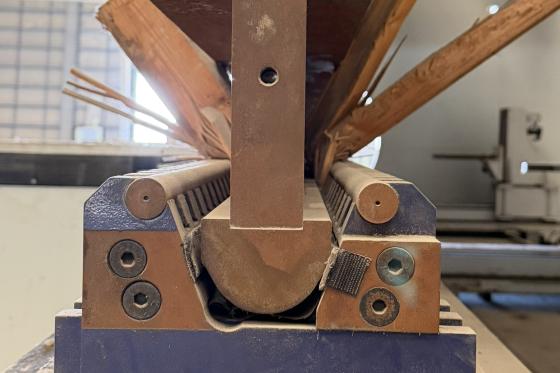

- Lower Tooling set Variable VLA 50-150 mm
- Upper Tooling set LVD 505

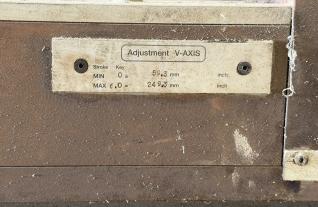

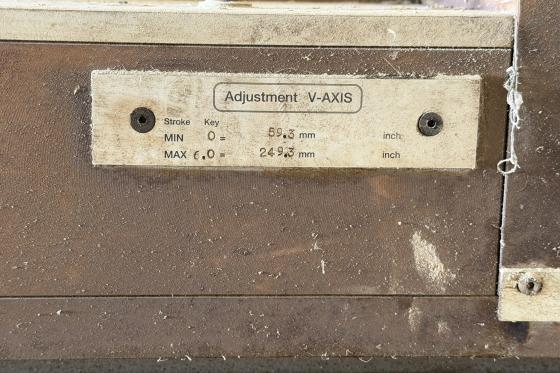

- Adjustment V-Axis 59,3 to 249,3 mm

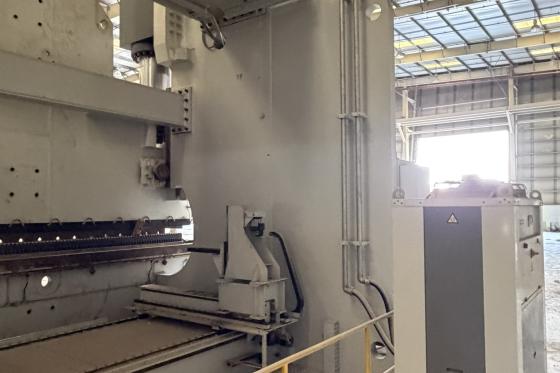

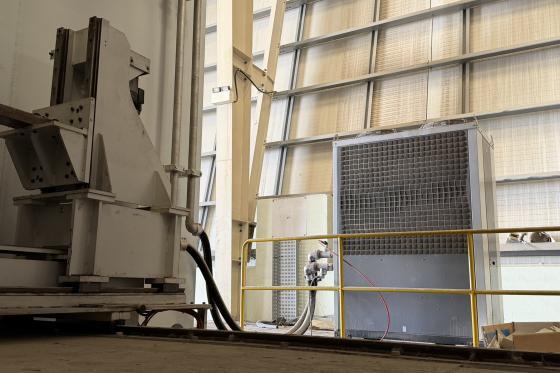

- Thermotec Oil chiller GC25T-35 max. 2200 kPa

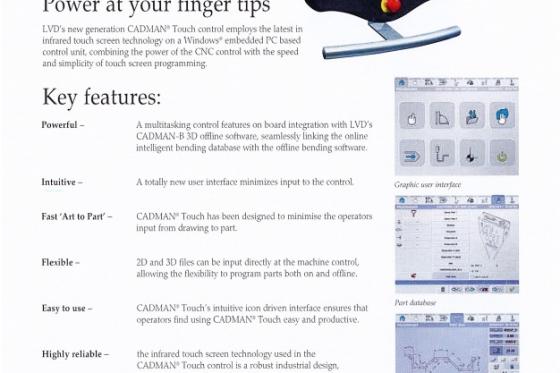

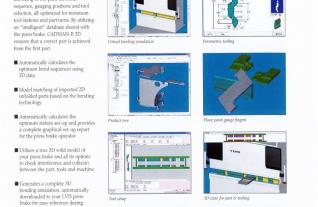

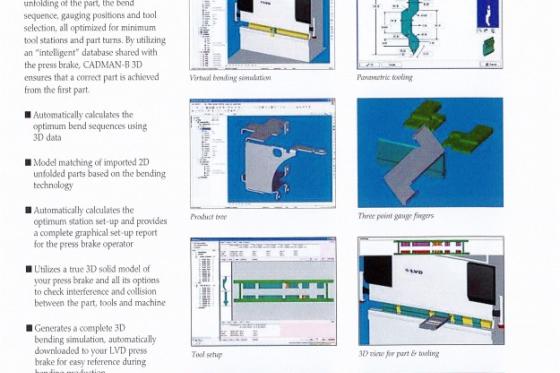

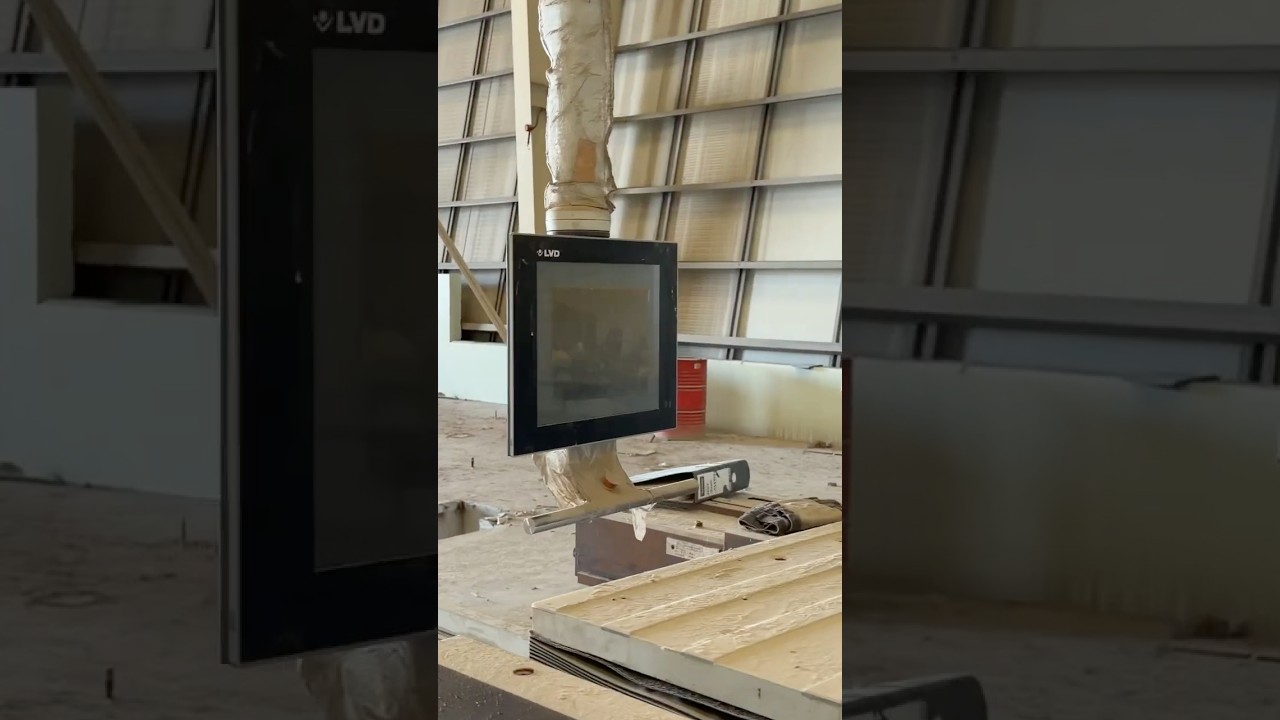

- CADMAN TOUCH with the best software for pressbrakes

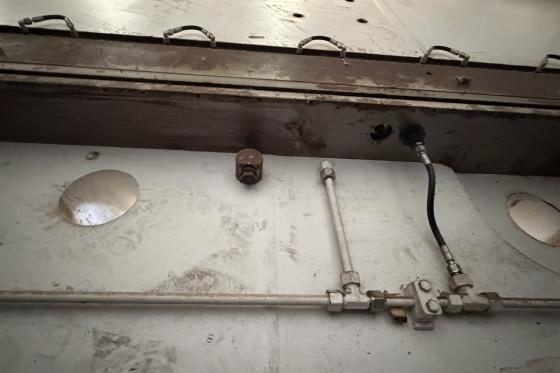

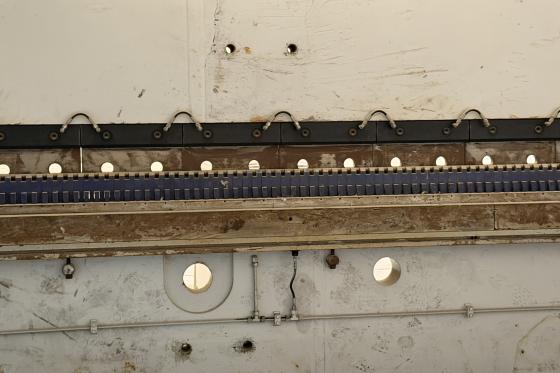

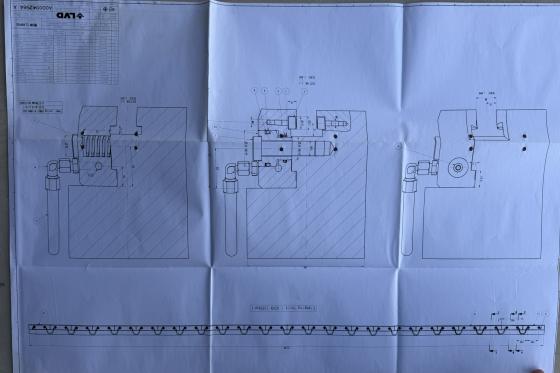

- Hydraulic top tool clamping
- Table width 500 mm

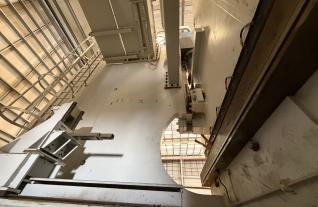

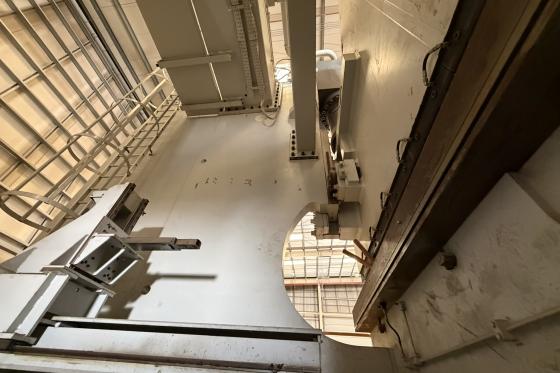

- Troath in column 1000 mm

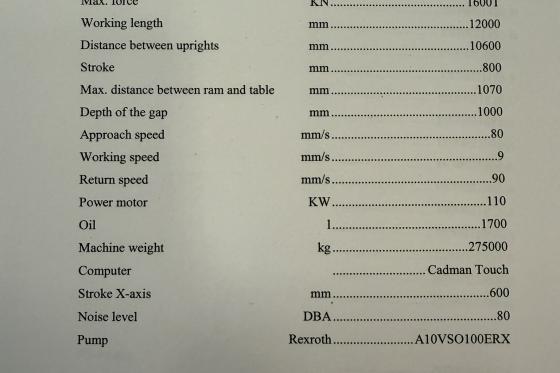

Specifications
Dimensions (Estimate)
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
Why you need 1600 Ton Pressbrake, Bending force depends on:
-
Material thickness
-
Material strength
-
Bend length
-
Die opening
When any of those go big, tonnage skyrockets.
A 1600-ton press brake is used when:
-
Plate is thick (20–60+ mm / ¾"–2½"+)
-
Material is high-strength
-
Parts are long (6–10+ meters / 20–30+ ft)
-
Tight radii or deep bends are required
- Forming Heavy Welded structures like:
-
Bridge girders
-
Box columns
-
Large beams and stiffeners
-
Base frames for industrial machinery
- Shipbuilding Defence & Naval like:
-
Hull sections
-
Deck plates
-
Bulkheads
-
Reinforcement ribs
-
Enegery & Infrastructure like:
-
Wind tower sections
-
Power plant components
-
Pressure vessel shells (pre-forming)
-
Transformer tanks
-
Heavy Machining & Ground & Mining jobs like:
-
Excavator frames
-
Crusher housings
-
Dump truck bodies
-
Mining chute liners
-
Furnace housings
-
Kilns
-
Massive welded assemblies
- Material to bend on 1600 t machine:
-
Carbon steel:
-
S235 / S275 / S355
-
A36, A572
-
Plate thickness: ~20–50 mm+
-
High strength steel
-
S690 / S700
-
Hardox, Strenx
-
Much higher tonnage needed even at thinner gauges
-
Stainles steel:
-
304 / 316
-
Needs ~1.5–2× the force of mild steel
-
Wear-resistant plate
-
Heat-resistant steels
- JOB Example:
Bending 40 mm S355 steel over 8 meters can easily require 1,200–1,600 tons, depending on tooling.
Bending instead of welding:
-
Increases strength
-
Reduces distortion
-
Cuts weld time and cost
-
Improves fatigue life
-
Looks cleaner and more accurate
A 1600-ton press brake is used when:
-
The part is too thick
-
Too strong
-
Too long
It’s not for sheet metal shops — it’s for heavy industry, shipyards, steel fabricators, and energy projects.
