This machine is sold

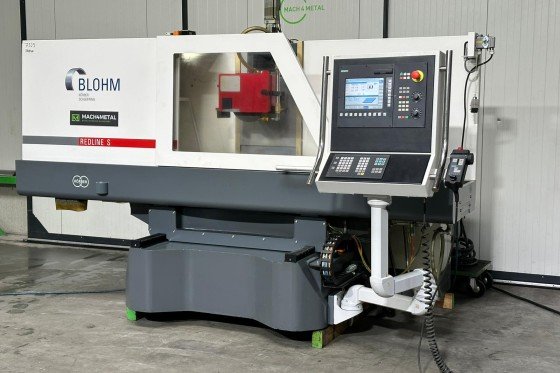

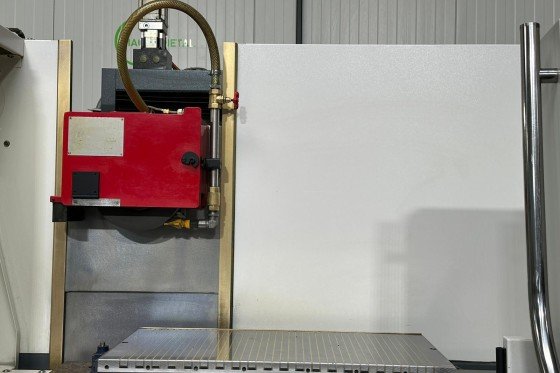

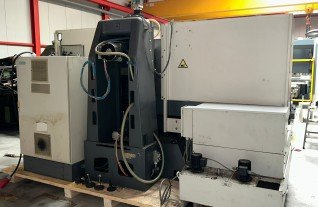

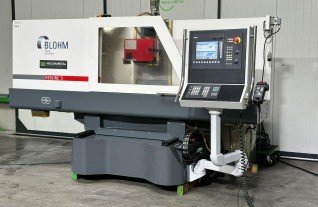

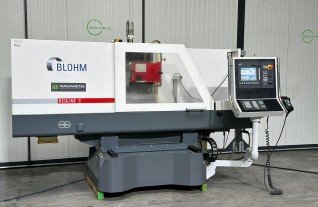

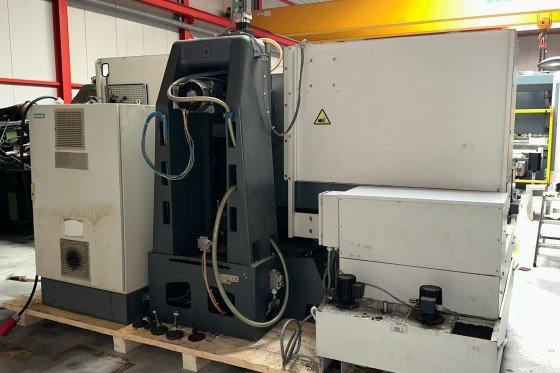

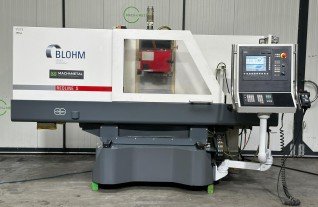

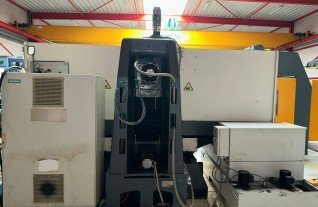

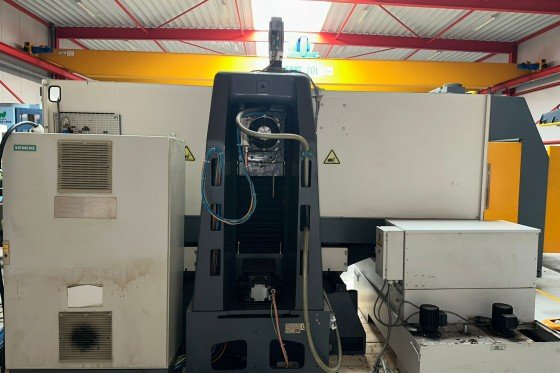

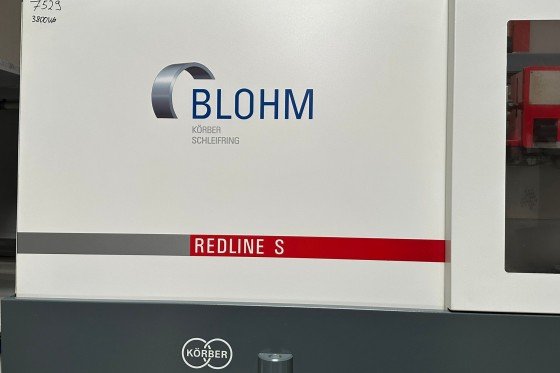

Surface grinder BLOHM - RED line S48
MACH-ID 7529| Make: | BLOHM |
| Type: | RED line S48 |
| Year: | 2009 |

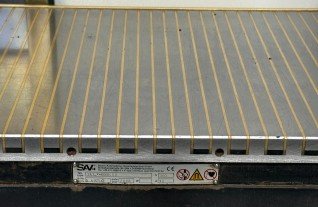

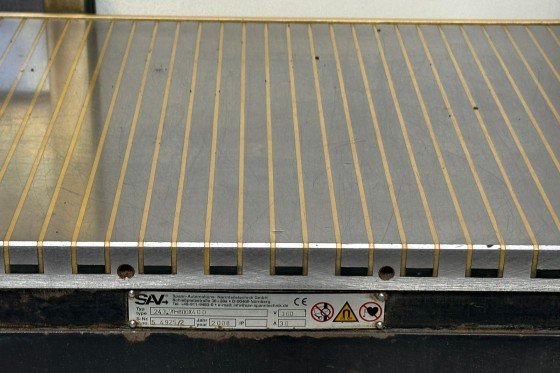

- Magnet table 800 x 400 mm
- Min. distance table to spindle center 125 mm
- Max. distance table to spindle center 575 mm
- Feed rate override all axis
- Vario speed grionding spindel drive
- Plunge cut grinding
- Parametic grinding and dressing
- Grinding intermittent & continious cross feed
- Coolant tank & filtration system

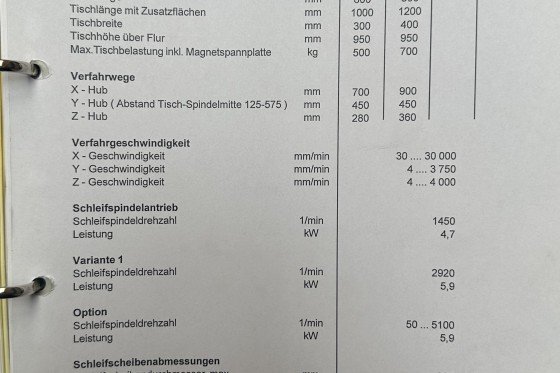

Specifications
Dimensions (Estimate)
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

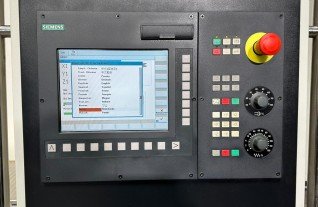

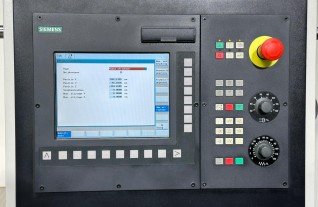

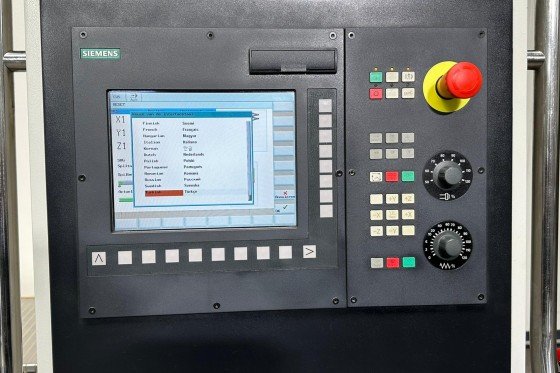

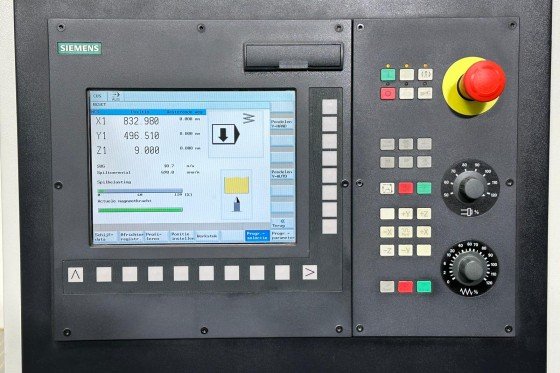

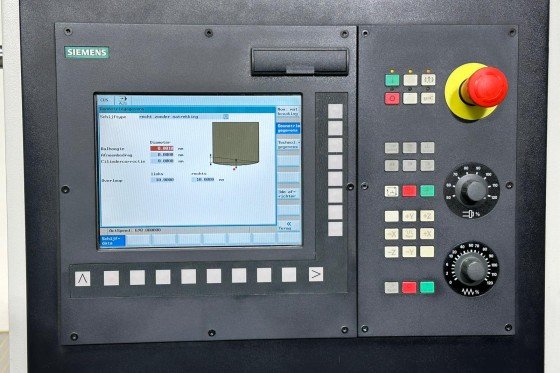

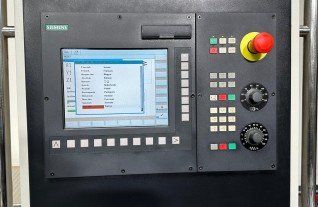

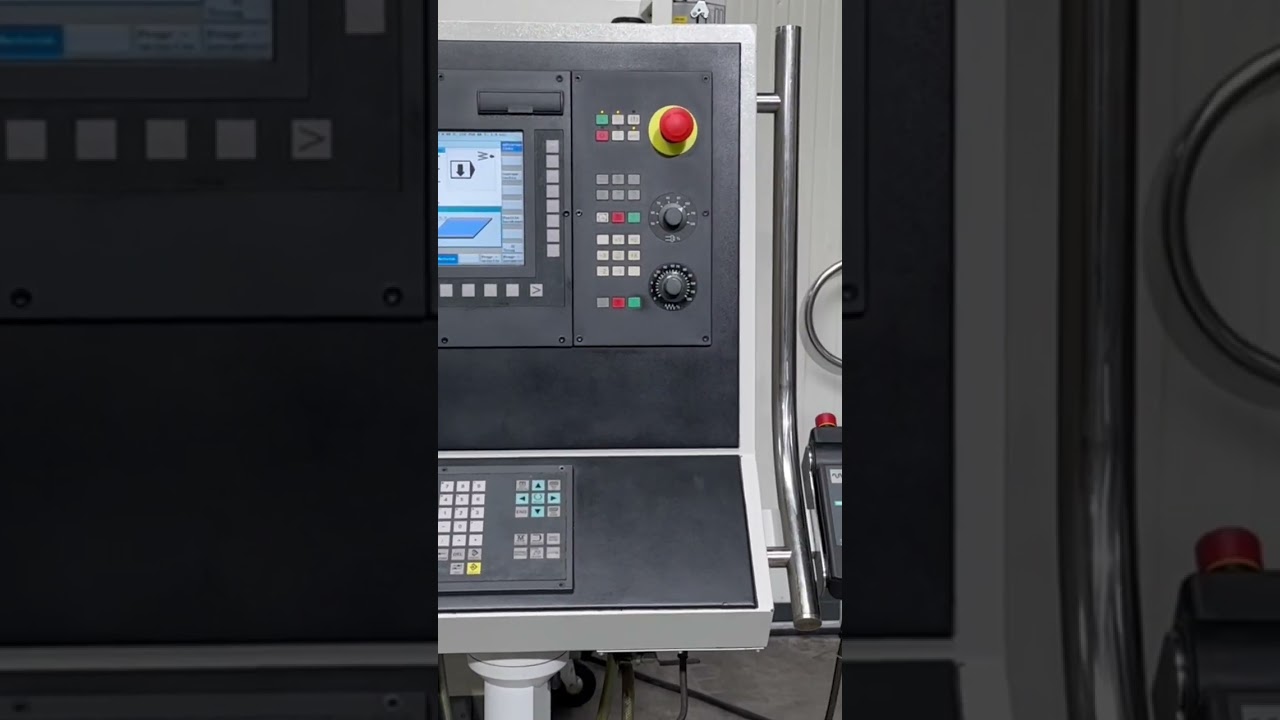

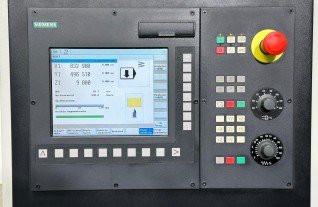

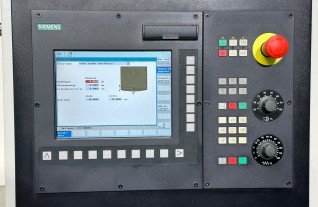

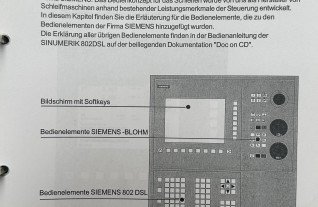

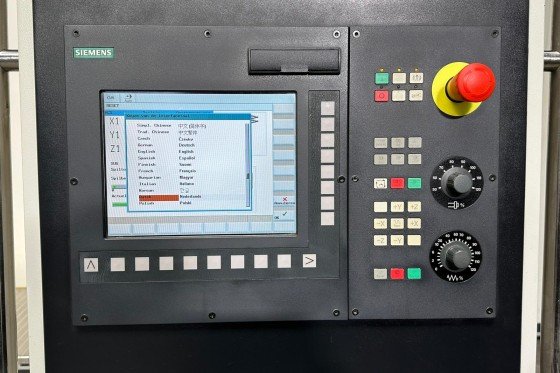

The universal model for your surface and profile grinding applications The BLOHM REDLINE S easy Touch is a veryaffordable yet extremely precise surface andprofile grinding machine. It excels due to theinnovative operator concept within the BLOHMeasy TOUCH control.This future orientated concept is completed bythe use of high precision re-circulating ballscrews with digital drives and a grinding spindle drive with a capacity of 5,9 kW at 1.500 1/min.The electrical cabinet is attached to the machine for transportation which guarantees a fast installation.Surface and profile grinding has been newly defined by the BLOHM easy TOUCH control.The clear menu guided operation is via a TFT colourtouch screen and joystick, which permits the simple operation of the machine.The scope of supply includes standard surface and creep feed grinding programs. Additional program options extend the range of applications.Grinding cycles, e.g. multi-step grinding, rotary table surface grinding and automatic gap control, as well as profile dressing cycles are available options. The software permits the simple generation of contour dressing programs.Standard accessories:Glass scales for Y and Z axis ՕGrinding wheel flange with grinding wheelBalancing arborՕDiamond holder with dressing diamondPreparation for-Coolant cleaning unit -Electropermmagnetic chuck-Table
