This machine is sold

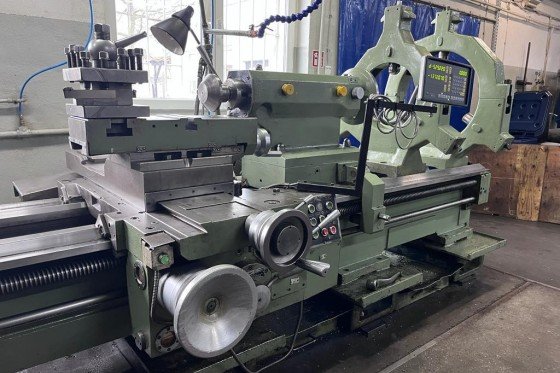

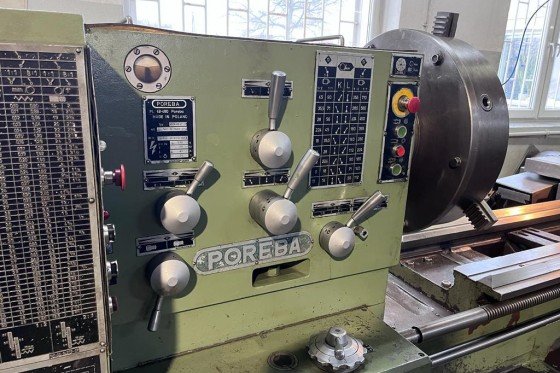

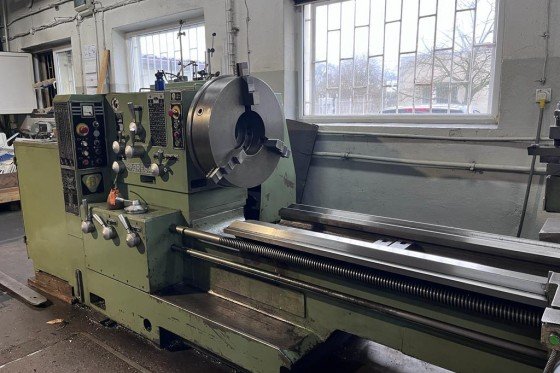

Centre lathe POREBA - TPK 90 A1 / 3
MACH-ID 8617| Make: | POREBA |
| Type: | TPK 90 A1 / 3 |
| Year: | 1994 |
- 2 axis digital readout
- 3 chuck 630 mm
- 4 chuck 800 mm
- Rapid feed all directions

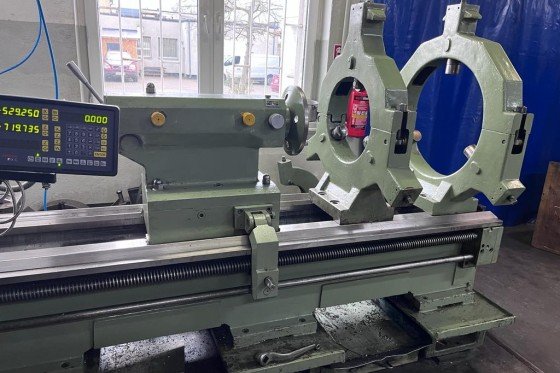

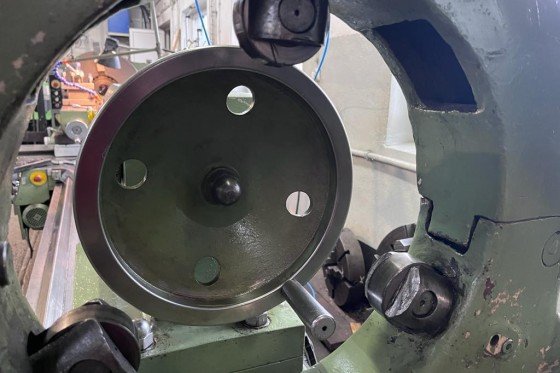

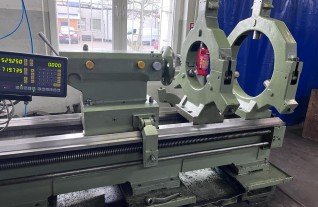

- 3 x Steady rest
Specifications
DBC Turning Length
3000 mm
118.11 inch
Swing over bed Ø
930 mm
36.614 inch
Swing over cross slide Ø
620 mm
24.409 inch
Spindle bore
95 mm
3.74 inch
Spindle power
22 kW
22 kW
Bed width
585 mm
23.031 inch
Tailstock spindle Ø
6 Ø
6 Ø
Stroke pinole
200 mm
7.874 inch
Spindle taper
6 Mk
6 Mk
Speeds / ranges
800 Rpm
800 Rpm
Feed rate X-Axis
2000 mm/min.
2000 mm/min.
Feed rate Z-Axis
2000 mm/min.
2000 mm/min.
Workpiece load
4500
4500
Dimensions (Estimate)
Length
5500 mm
216.535 inch
Width
2100 mm
82.677 inch
Height
1800 mm
70.866 inch
Weight
7200 kg
15880.5 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
