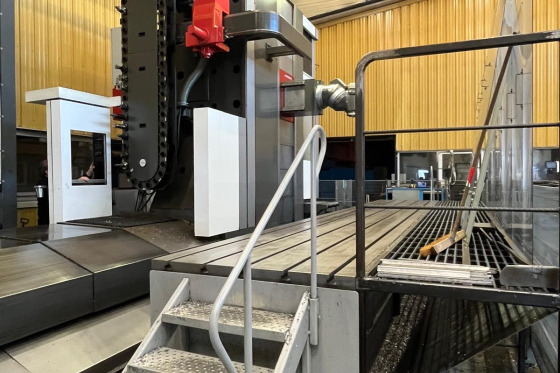

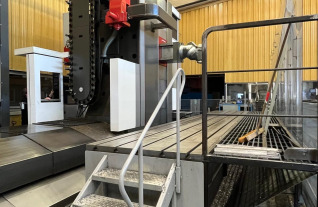

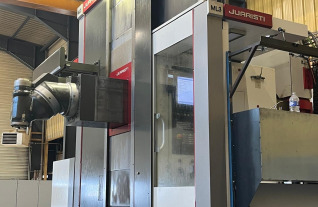

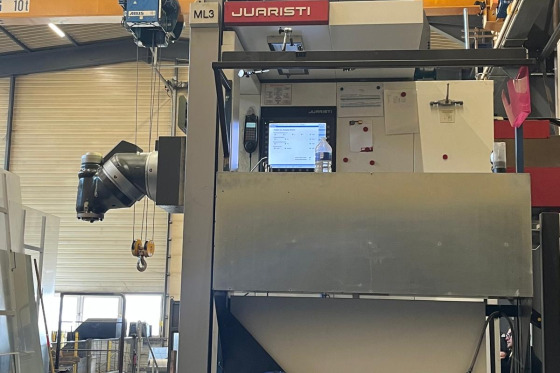

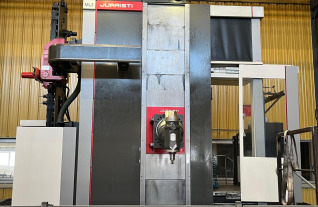

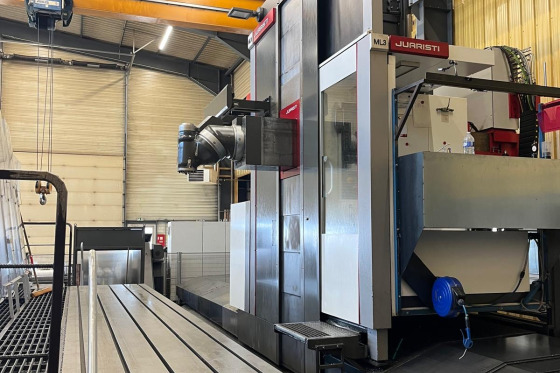

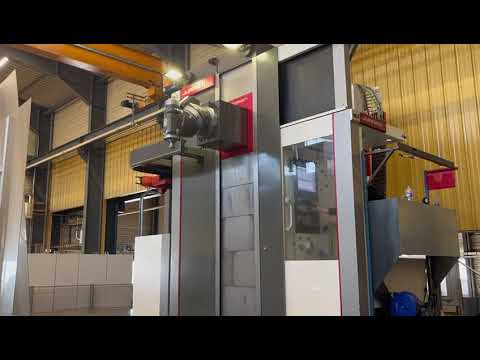

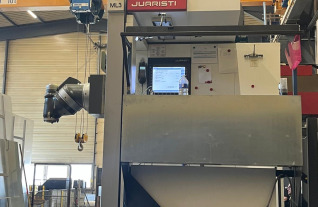

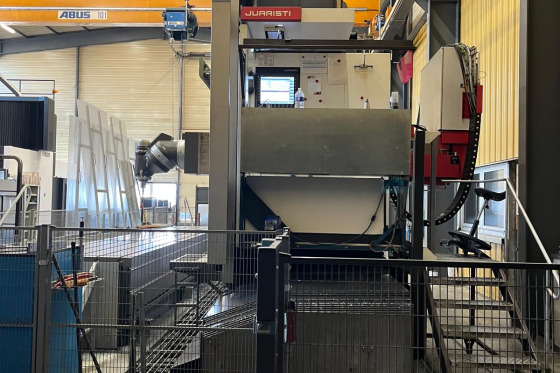

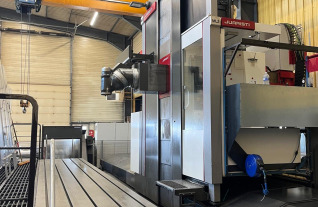

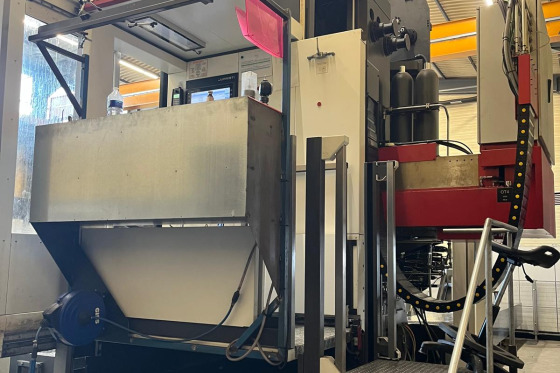

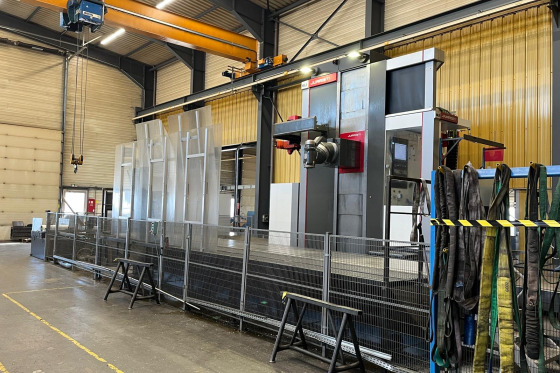

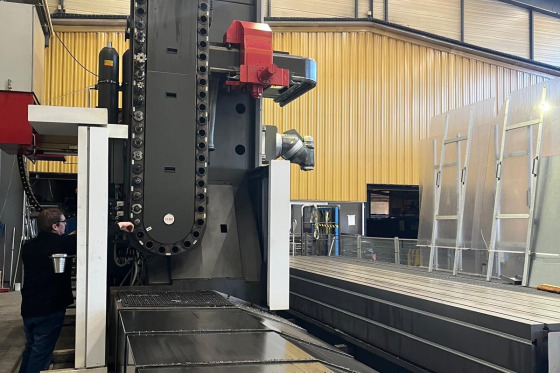

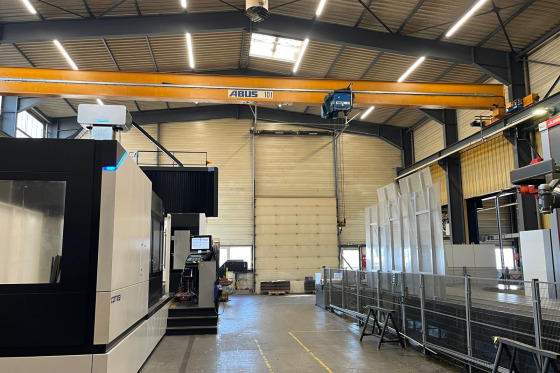

CNC Bed-Type Milling Machine Juaristi - ML-3

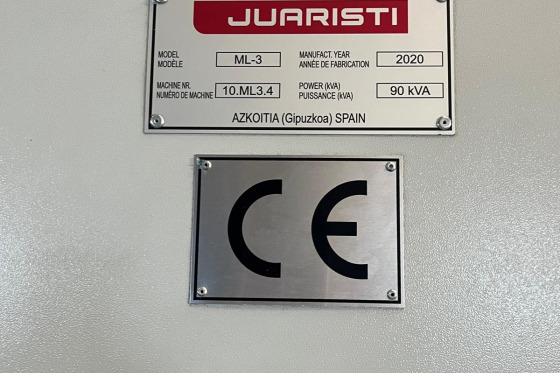

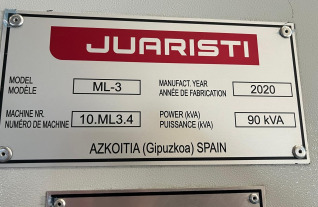

MACH-ID 9452| Make: | Juaristi |
| Type: | ML-3 |

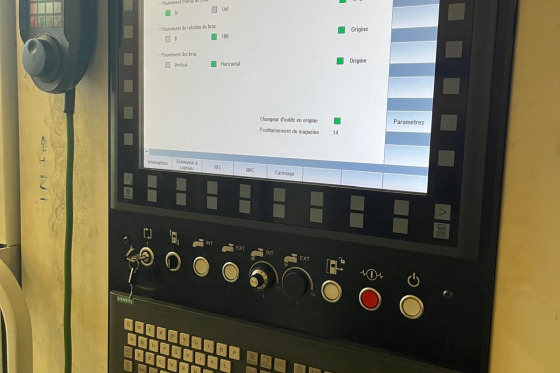

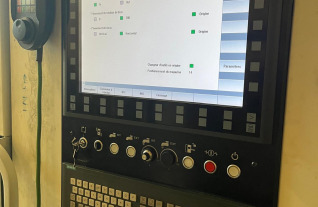

| Control: | Siemens 840D-SL |
| Year: | 2020 |

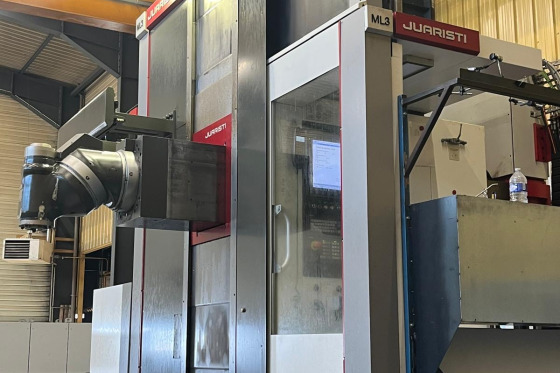

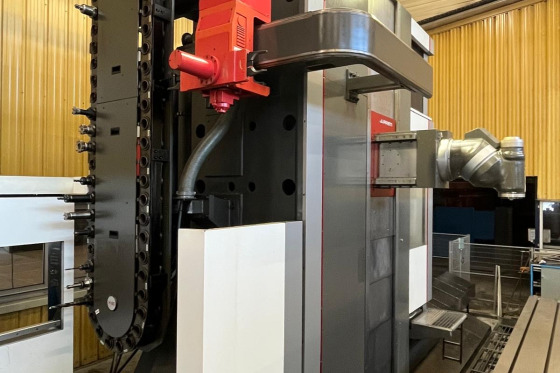

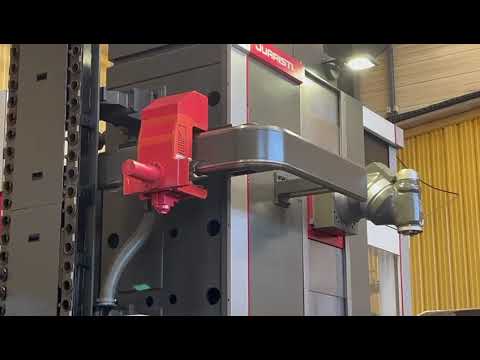

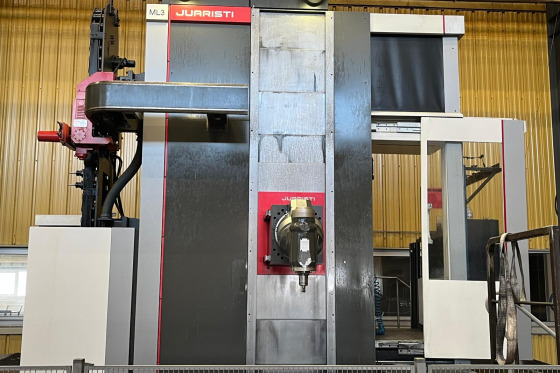

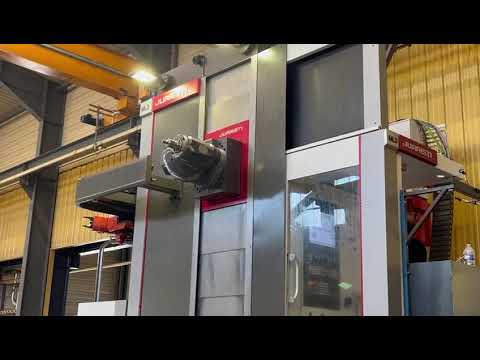

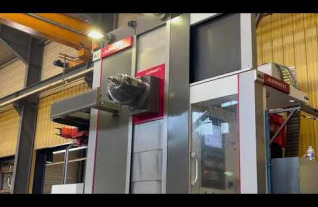

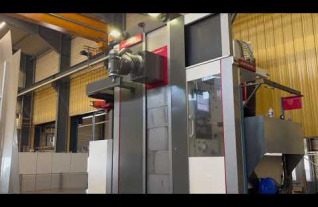

- Travelling Column High performance, precision and machining power

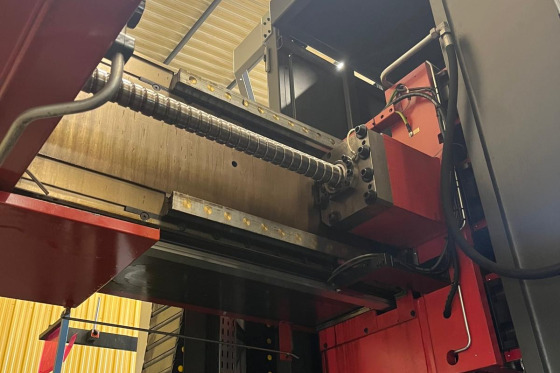

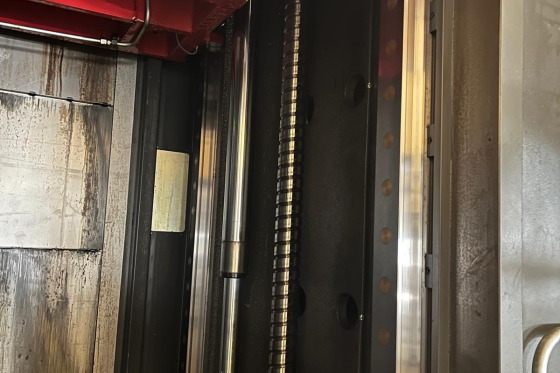

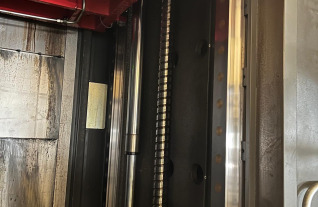

- Linear guiding of RAM combined with Hydrostatic Guiding HDS

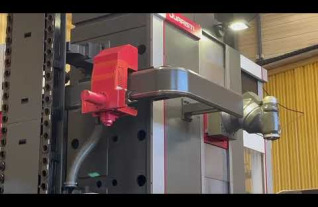

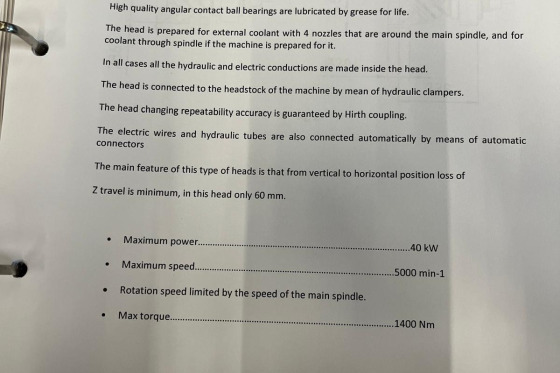

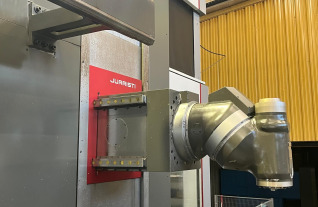

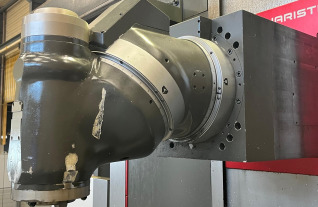

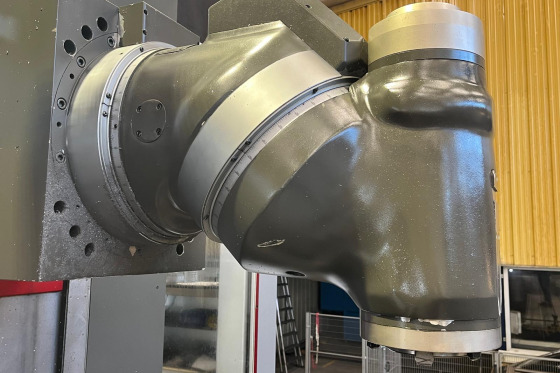

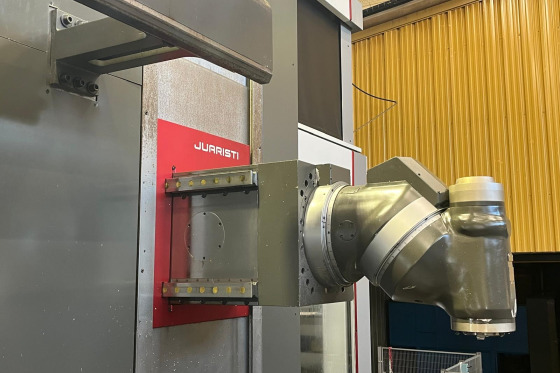

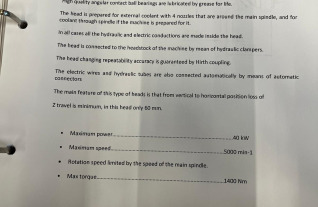

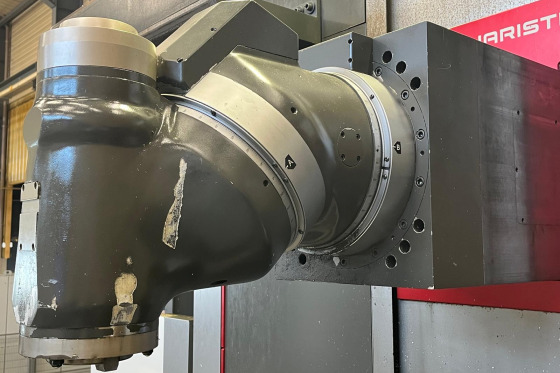

- ACD2 Milling head with 5000 Rpm and 1400 Nm torq

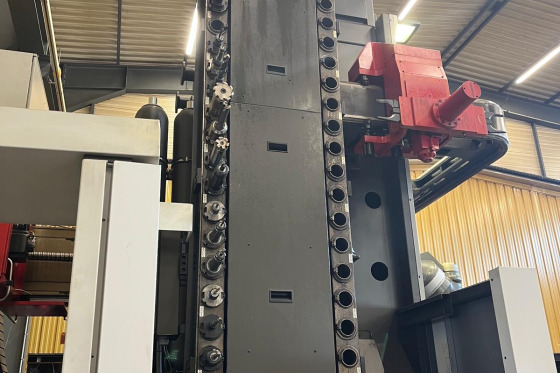

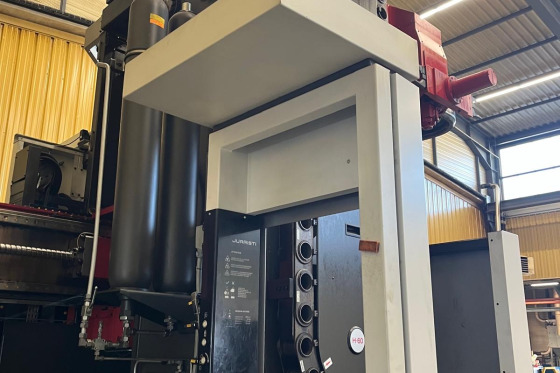

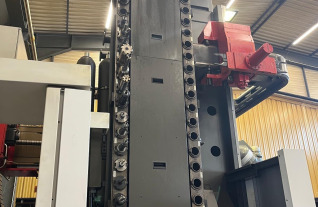

- Aitek ATC chain 60 position with L=400 and 250 diameter x 35 Kg

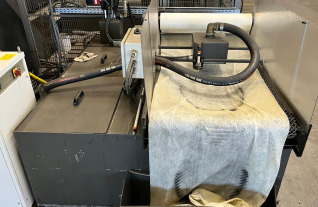

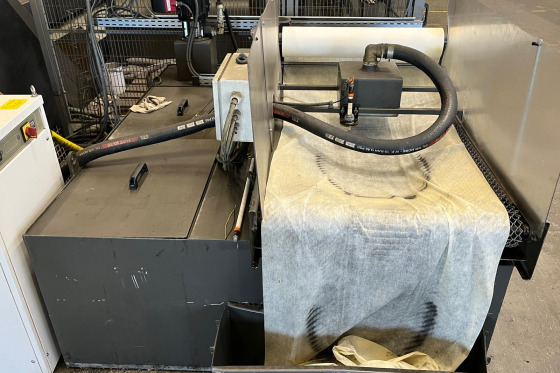

- Filtration with IKZ 15 Bar

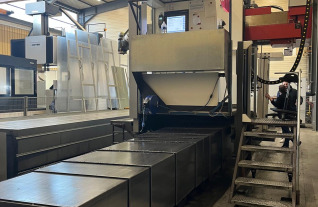

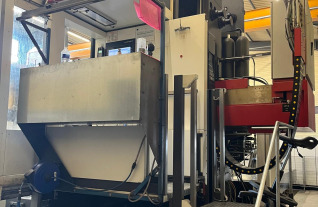

- Chip conveyor

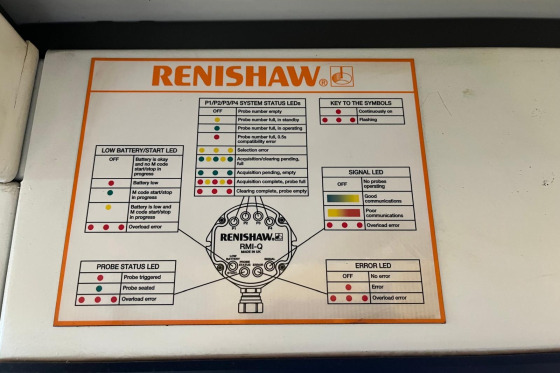

- BLUM 3D Measuring probe

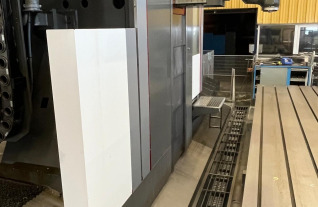

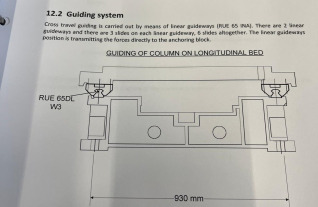

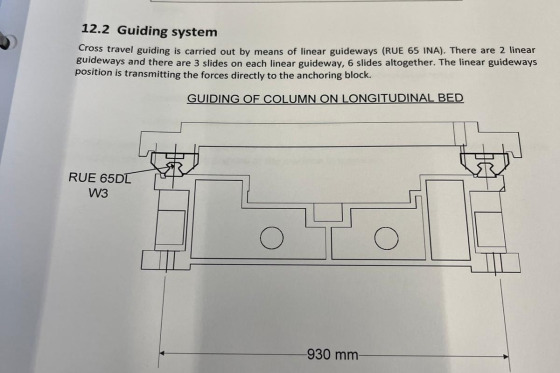

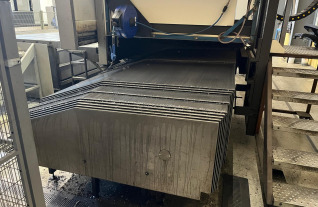

- Wide bed linear guided in X-Travel W=930 mm

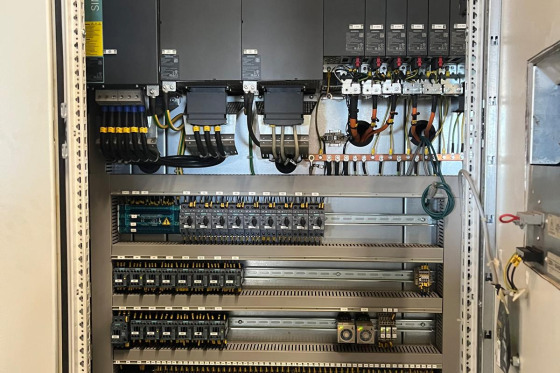

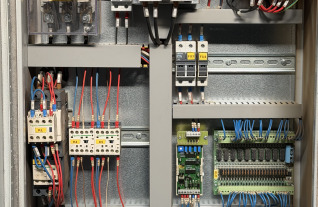

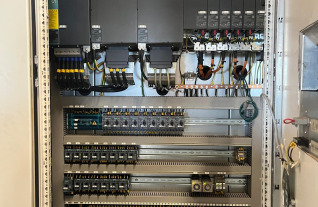

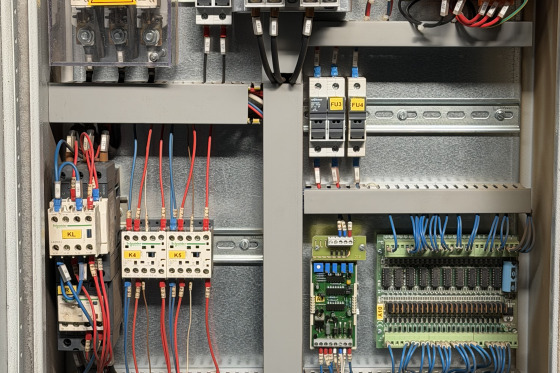

- Rotary table driver prepared in E-Cabinet

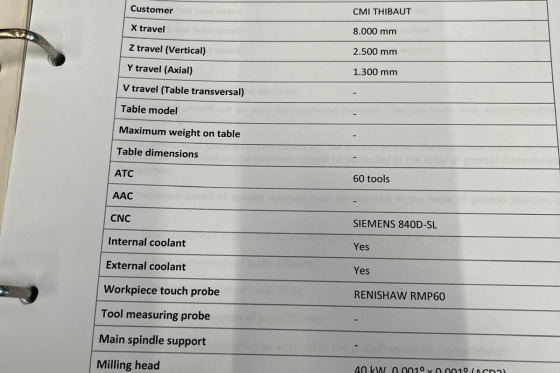

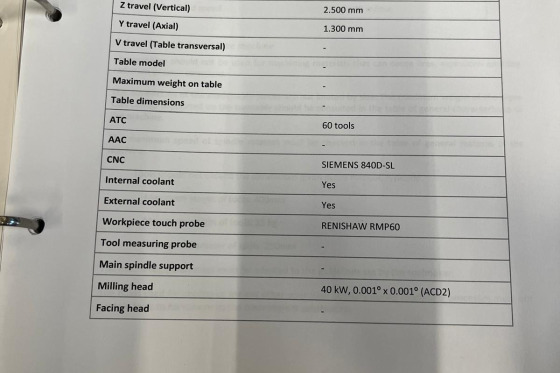

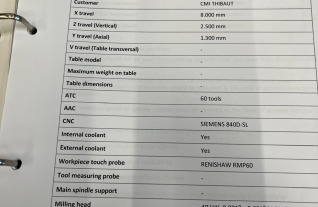

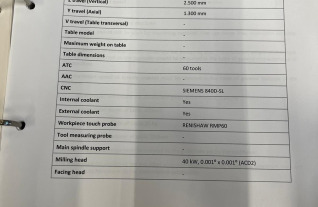

Specifications
X-Axis
8000 mm
314.96 inch
Y-Axis
1300 mm
51.181 inch
Z-Axis
2500 mm
98.425 inch
Table Length
10000 mm
393.7 inch
Table Width
1250 mm
49.213 inch
Power on spindle
40 kW
40 kW
Spindle speeds
5000 Rpm
5000 Rpm
Spindle Taper
50 ISO/Bt/Mk
50 ISO/Bt/Mk
Feed rate X-Axis
35000 mm/min.
35000 mm/min.
Feed rate Y-Axis
40000 mm/min.
40000 mm/min.
Feed rate Z-Axis
40000 mm/min.
40000 mm/min.
Millinghead auto-index
0.001 x 0.001 Gr °
0.001 x 0.001 Gr °

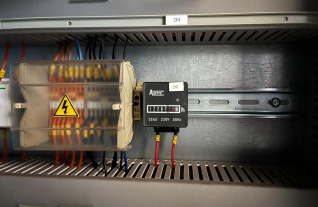

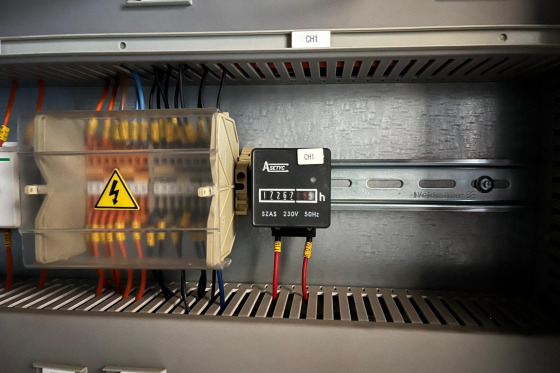

Working hours
3800 H
3800 H
Dimensions (Estimate)
Length
13500 mm
531.495 inch
Width
5800 mm
228.346 inch
Height
4500 mm
177.165 inch
Weight
45000 kg
99252.9 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
