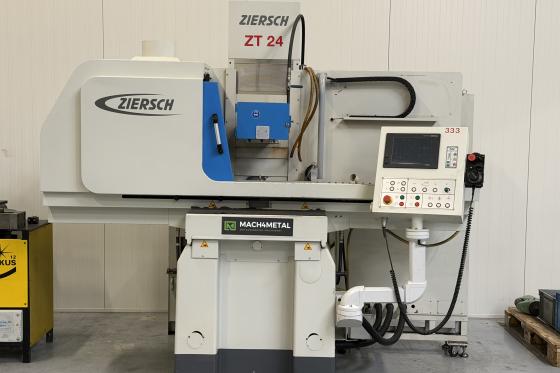

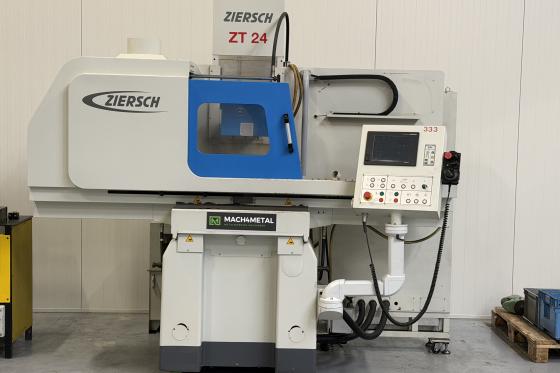

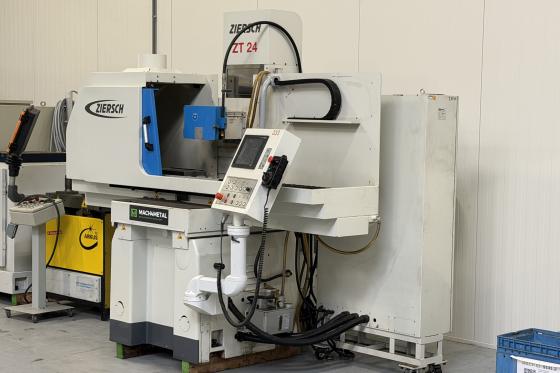

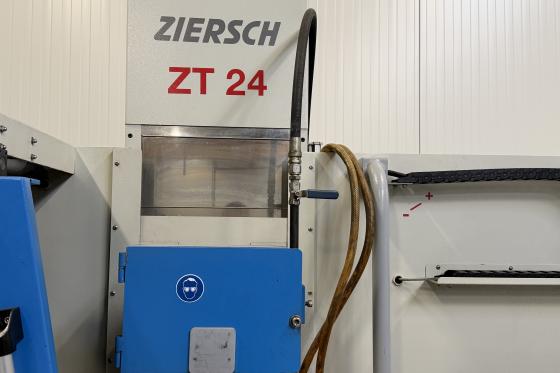

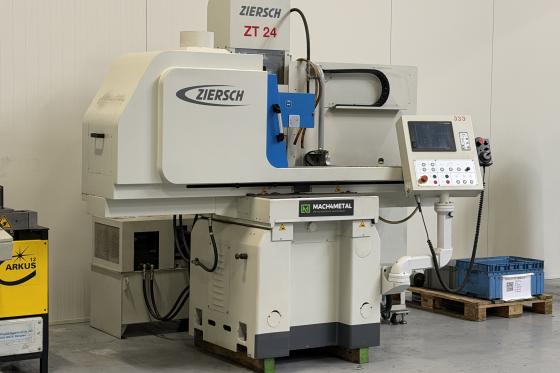

Rectifieuse plane Ziersch - ZT 24

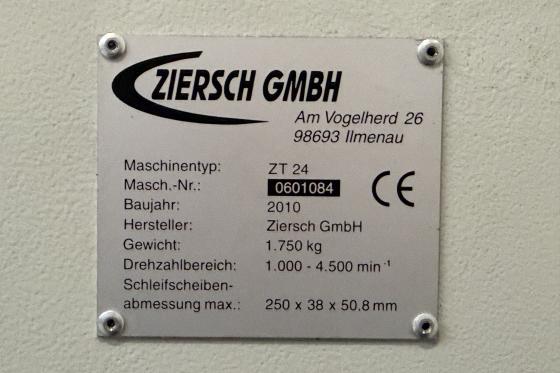

MACH-ID 9344| Marque: | Ziersch |
| Taper: | ZT 24 |

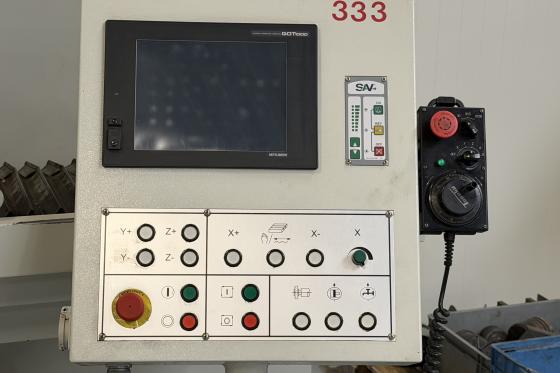

| Contrôle: | Mitsubishi TOUCH Panel |
| Année: | 2010 |
- Sturdy, cast iron execution of all machine components
- High machine weight for maximum rigidity
- Preloaded precision linear guideways in the vertical- and cross axis (Bosch Rexroth) for highest accuracy
- Scraped and turcite coated slideways in the longitudinal axis provide excellent vibration absorption and a high-quality grinding surface pattern.
- Hydraulic longitudinal motion with return cooling unit to achieve good surfaces
- Electro-mechanic cross- and vertical motion
- Measuring systems in vertical axis (Heidenhain) for precise positioning
- Maintenance-free paper band filtration unit with up to 500 l tank and 2-bar pressure pump for effective cooling and rinsing
- Integrated rinsing channel
- Magnetic separator for prefiltration of the paper band filtration unit
- Infinitely variable grinding spindle motor
- Machine lamp

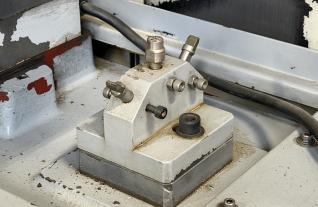

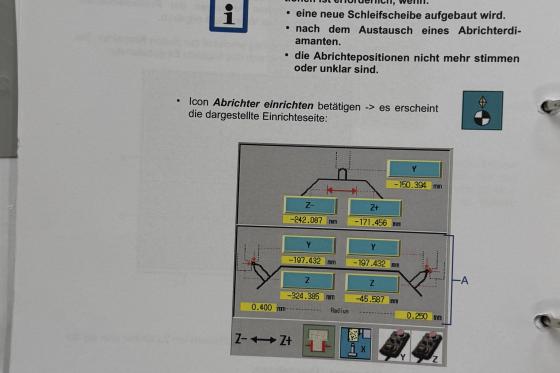

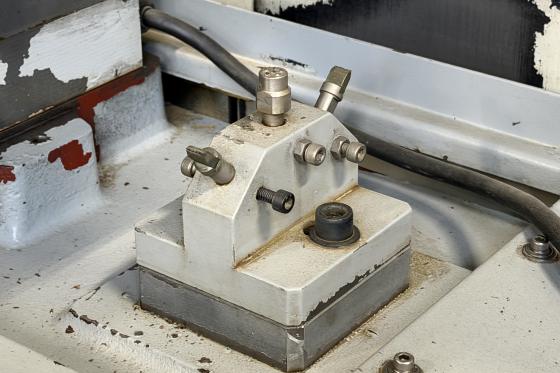

- Table-mounted dressing device for high precision and surface finish

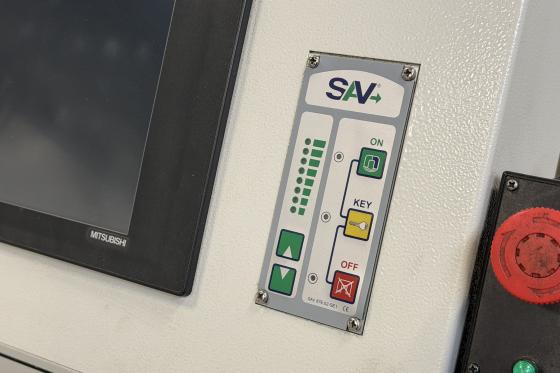

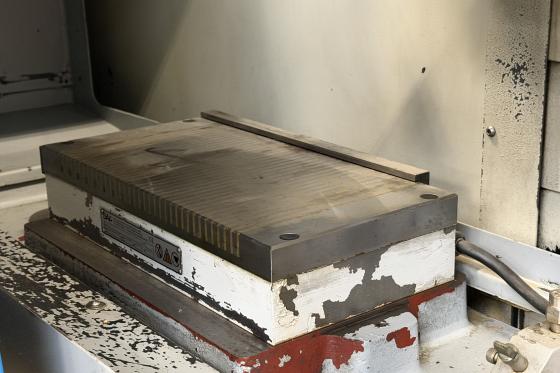

- Electro-permanent magnetic chuck (SAV) with integrated pole changing unit and traction regulation
- Partial encapsulation of the machine with sliding door and a service door
- Effective splash guard and an excellent accessibility
- Preparation of the machine for installation of a coolant mist exhaust unit

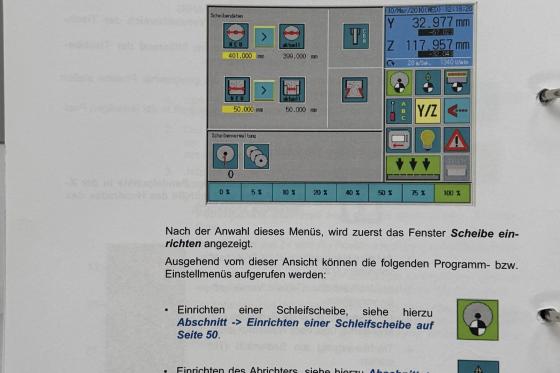

Control system features:

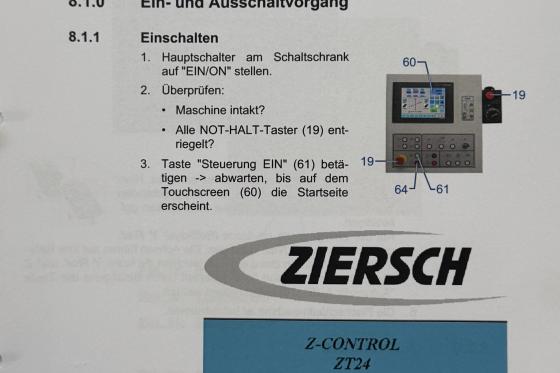

- Very comfortable and easy to operate Z-control
- Automatic vertical infeed with dressing amount compensation
- Fully automatic grinding cycle with dressing cycles
- Easy operation via touchscreen
- Large and clear colour screen (10.4")
- Electronic handwheel, usable in vertical- and cross axis

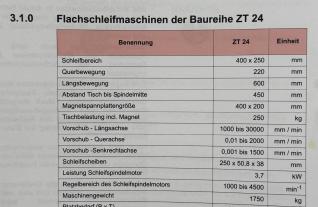

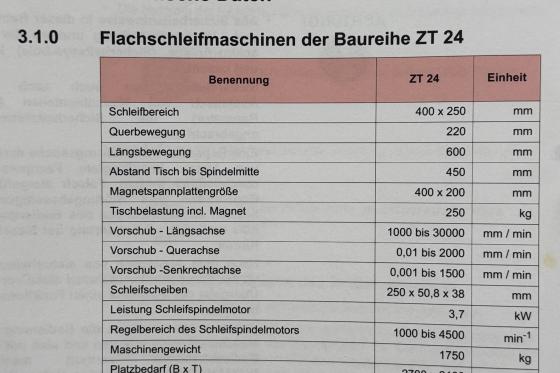

Caractéristiques
X - Courses
600 mm
23.622 inch
Y - Courses
220 mm
8.661 inch
Z - Courses
540 mm
21.26 inch
Table Length
400 mm
15.748 inch
Table Width
250 mm
9.843 inch
Charge sur table
250
250
Feed rate X-Axis
30000 mm/min.
30000 mm/min.
Feed rate Z-Axis
30000 mm/min.
30000 mm/min.

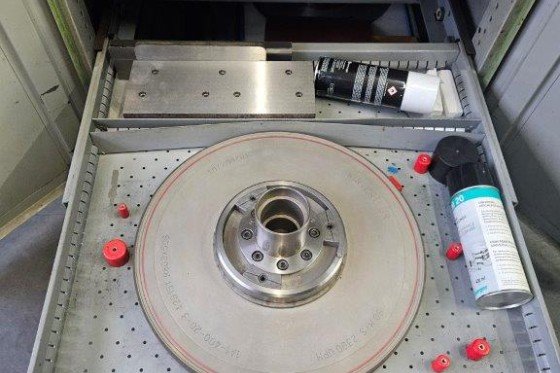

Meule dimensions
250 x 38 x 50,8 mm
250 x 38 x 50,8 inch
Puissance moteur
3,7 kW
3,7 kW
Speeds
4500 Rpm
4500 Rpm
Système de refroidissement
Yes
Yes
Feed rate Y-Axis
30000 mm/min.
30000 mm/min.
Dimensions (Estimation)
Longueur
3050 mm
120.079 inch
Largeur
2050 mm
80.709 inch
Hauteur
2510 mm
98.819 inch
