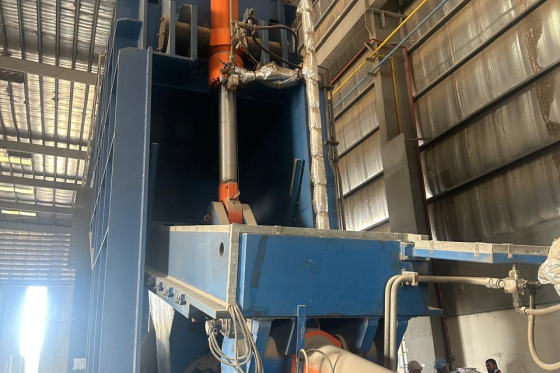

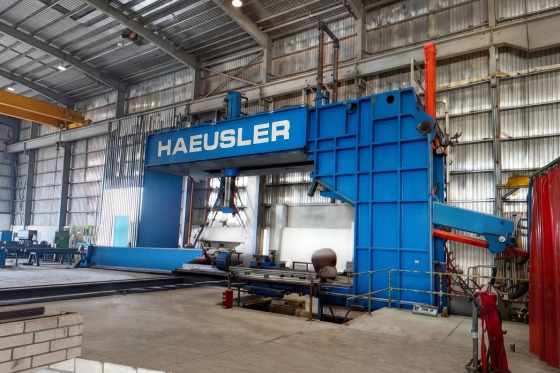

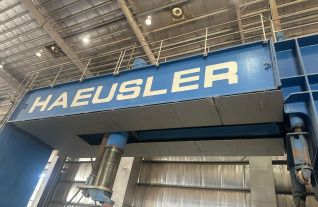

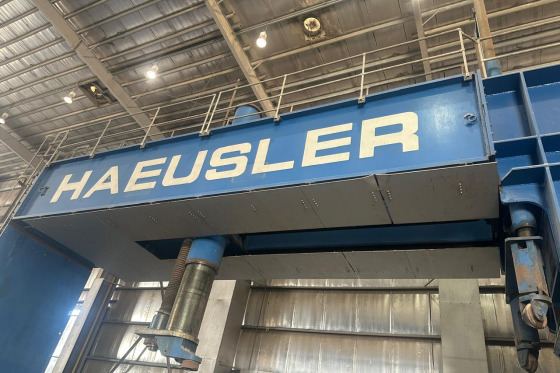

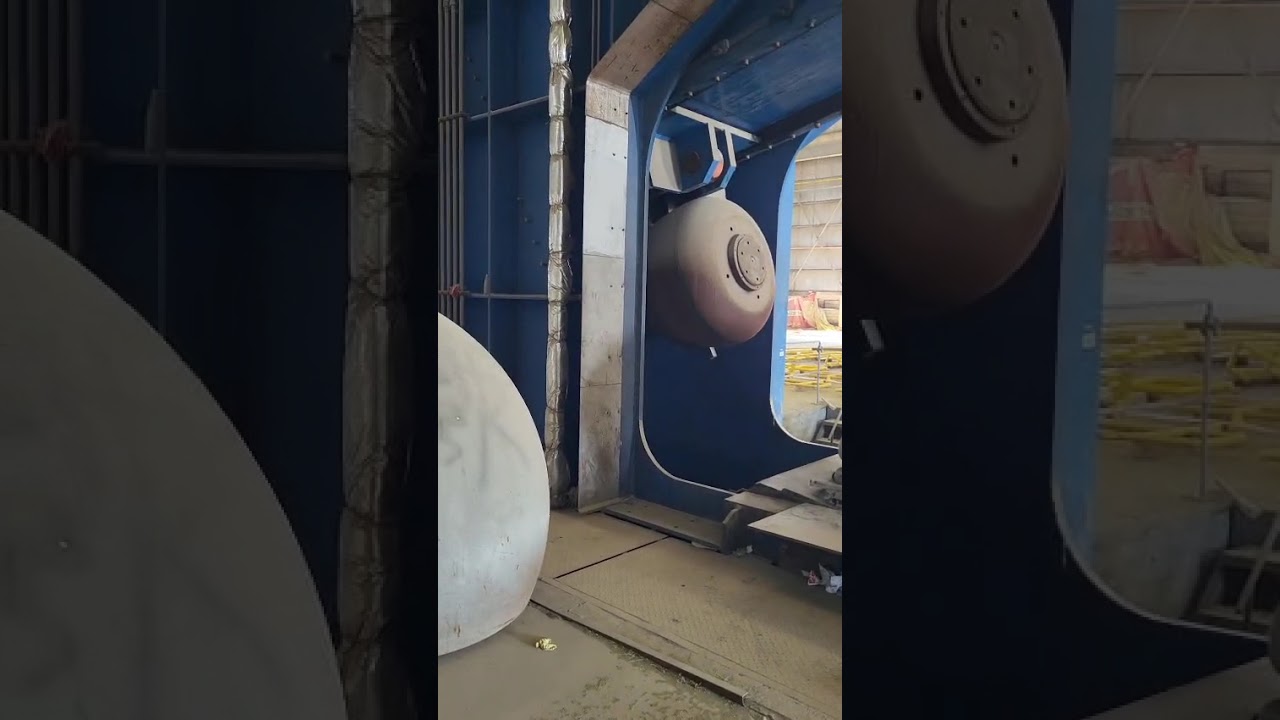

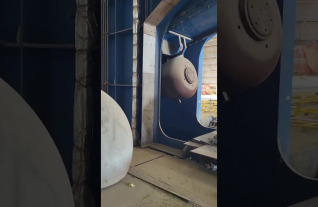

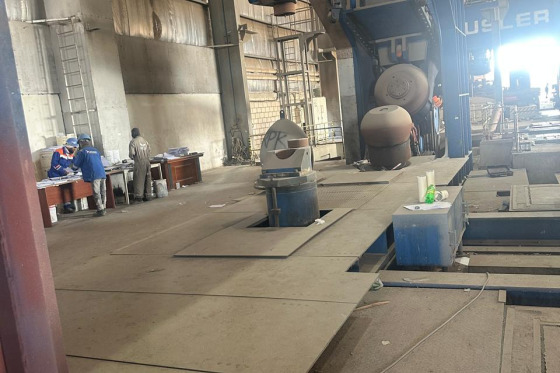

Bordelmachine HAEUSLER - HBM-HY 7000 x 90
MACH-ID 9830| Merk: | HAEUSLER |
| Type: | HBM-HY 7000 x 90 |
| Besturing: | Bend Tronic |
| YOP: | 2009 |
HAEUSLER FLANGING MACHINE HBM-HY 8700 x 90 mm

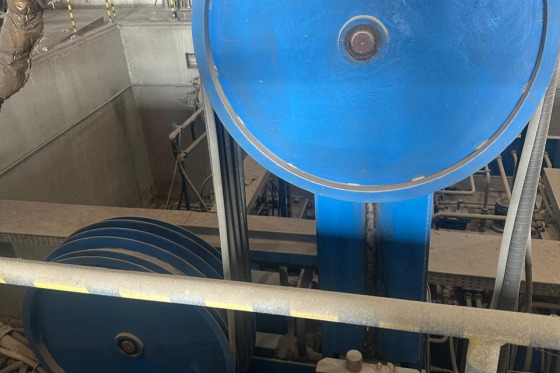

- Forming and Flanging rollers:
- inclines positon 0 - 25 Degrees
- Rotation sopeed 0 - 200 M/Min
- Rapid adjustment speed 2500 mm/Min
- Crawling speed 0 - 1200 mm/Min
- Sleeve hydro mechanical rapid speed 6000 mm/Min
- Infeed carriage:
- Work piece weight 42.000 Kg
- Max. dished head 8300 mm
- Min. dished head 1900 mm
- Speed 20 M/Sec
- Centering Automatic

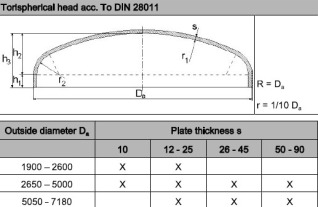

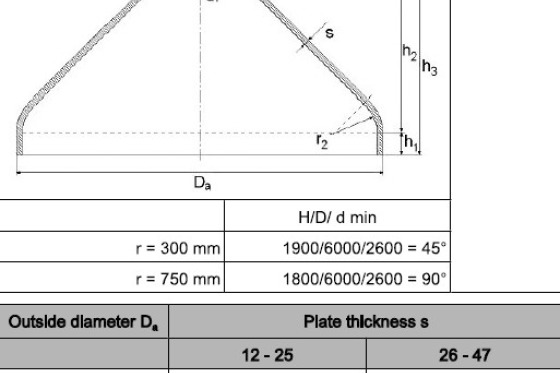

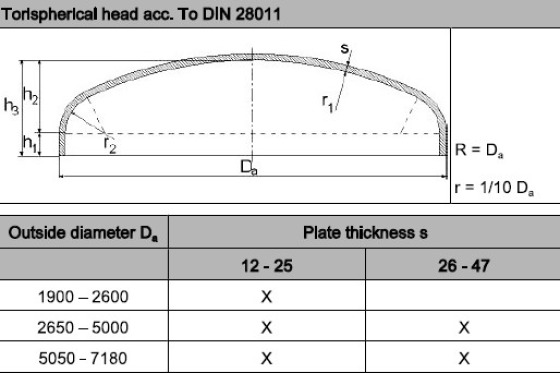

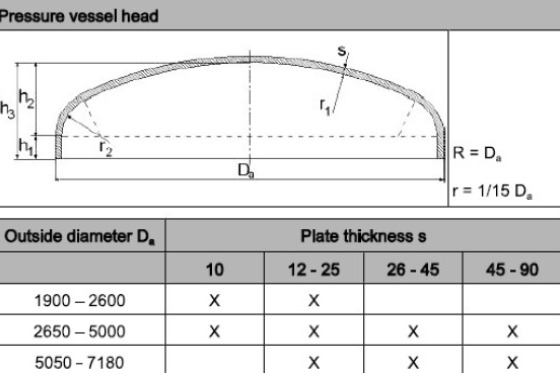

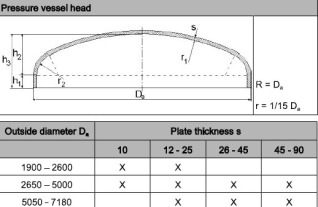

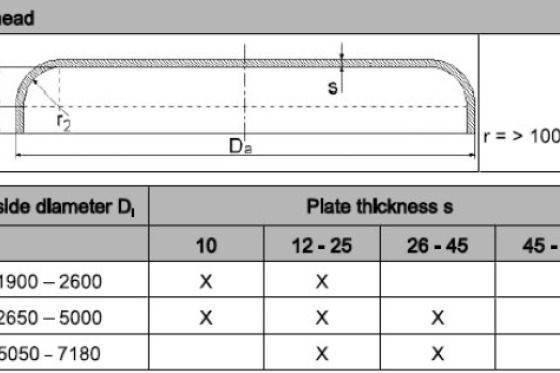

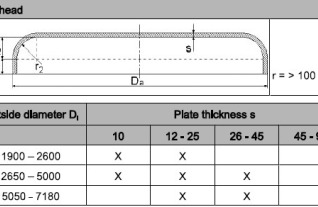

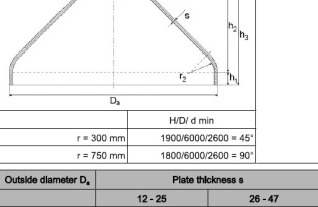

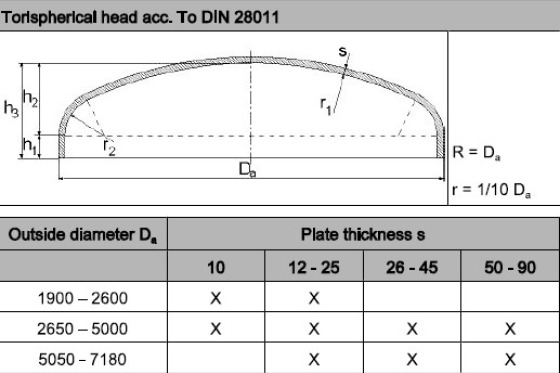

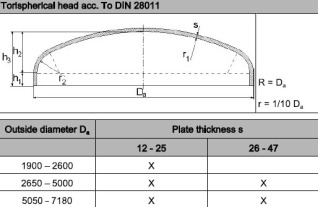

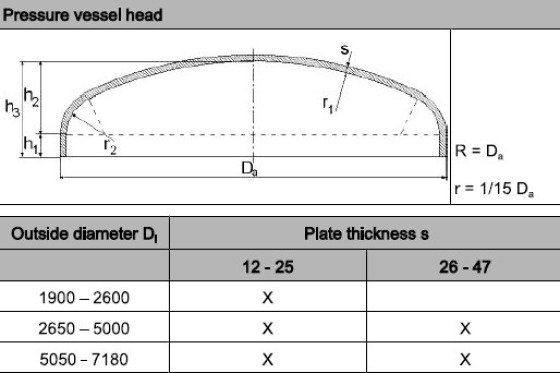

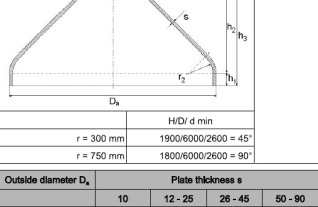

- Data of Workpiece:
- Cold 360 N/mm2 45 mm
- Hot 360 N/mm2 90 mm

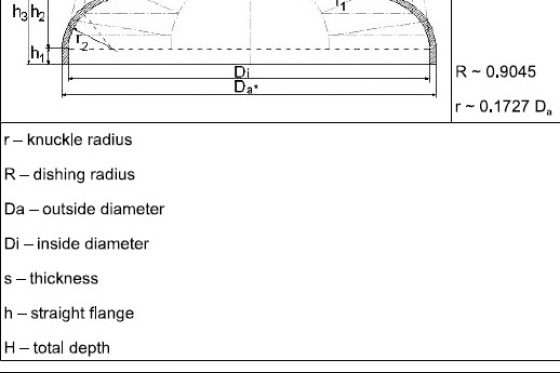

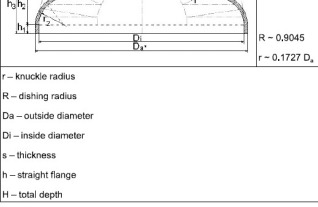

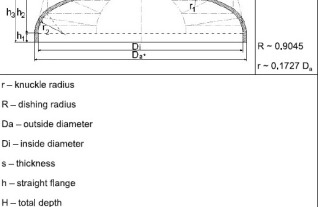

- Min Knuckel Radius 100 mm
- Max. Knuckel Radius 1200 mm
- Min thickness dished 10 mm
- Head diameter without device 2600 mm
- Head diameter with device 1900 mm
- Length off straight flange at flanged head 3,5 x thicness = 140 mm
- Hydraulic tank 2000 Liter
- 10 sets knuckel head up to R-7300 mm
- Power 350 kW
- Form roller changing device in combi with lifgting sleeve
- Auxiliary device for flanging heads from 1900 - 2600 x 25 mm thickness
- Measuring device outer diameter and knuckle radius of flanged head
-
Optional Dishing Dies (Gray GG-25)
- RUW 925 with 1500 diameter x R 950 – 1300 mm
- RUW 1205 with 1500 diameter x R 1305 – 1700 mm
- RUW 1520 with 1500 diameter x R 1705 – 2200 mm
- RUW 1905 with 1500 diameter x R 2205 – 2800 mm
- RUW 2395 with diameter 1500 x R 2805 – 3500 mm
- RUW 2885 with diameter 1500 x R 3505 – 4300 mm
- RUW 3515 with diameter 1500 x R 4305 – 5200 mm
- RUW 4215 with diameter 1500 x R 5205 – 6200 mm
- RUW 4985 with diameter 1500 x R 6205 – 7300 mm
Specificaties
Max. product
8700 Ø
8700 Ø
Max. plaatdikte
90 mm
3.543 inch
Max. bordel radius
1250 mm
49.213 inch
Min. product Ø
1900
1900
Min.plaatdikte
6 mm
0.236 inch
Min. bordel radius
2600 mm
102.362 inch

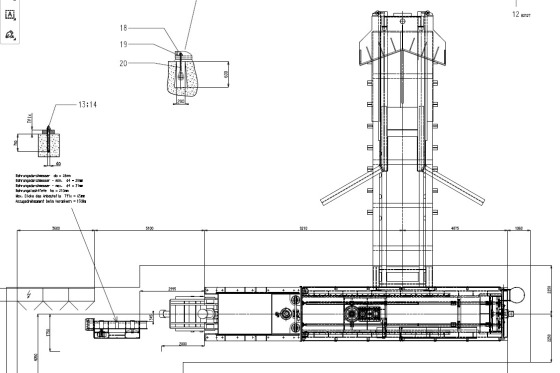

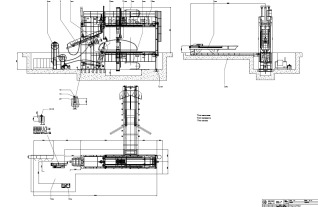

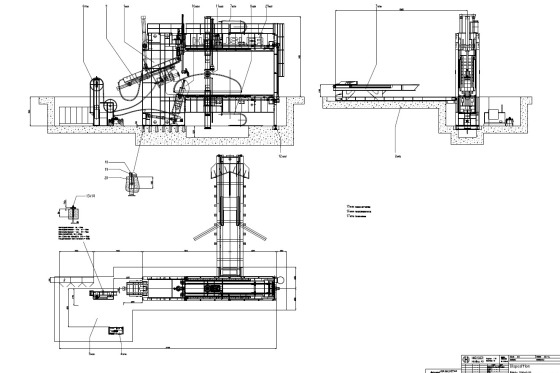

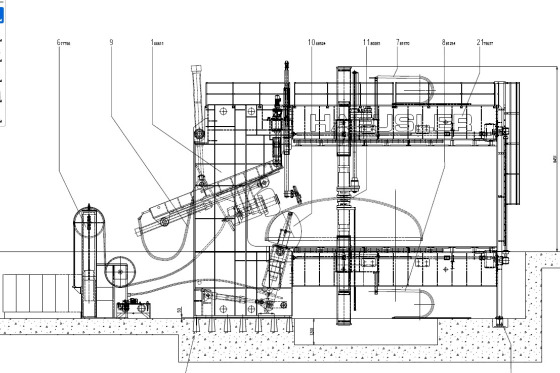

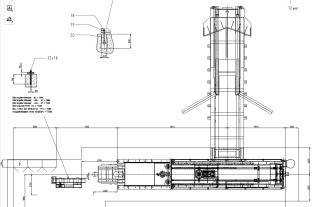

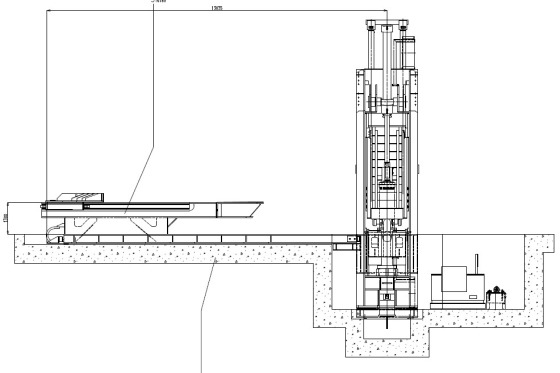

Afmetingen (Schatting)
Lengte
14075 mm
554.133 inch
Breedte
2500 mm
98.425 inch
Hoogte
9725 mm
382.873 inch
Gewicht
212000 kg
467591.4 lbs
Belangrijk: De informatie op deze pagina is naar beste vermogen en overtuiging verkregen en waar nodig verkregen van de fabrikanten.De nauwkeurigheid kan niet worden gegarandeerd maar de informatie wordt te goeder trouw gegeven. Dienovereenkomstig vormt het geen vertegenwoordiging of contractuele voorwaarden.We raden u aan om alle essentiële details te controleren!
