This machine is sold

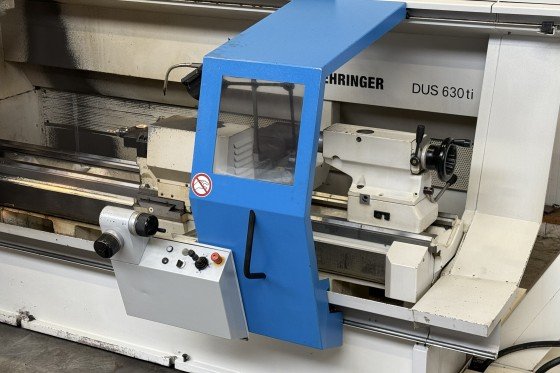

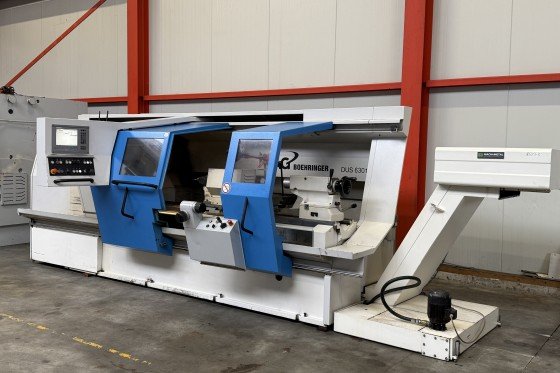

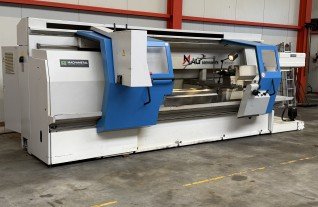

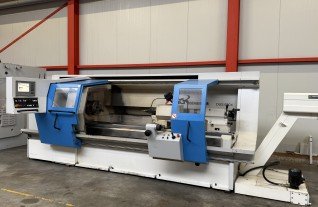

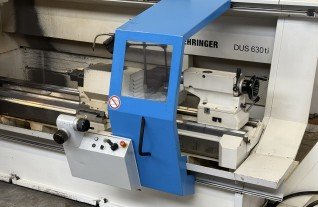

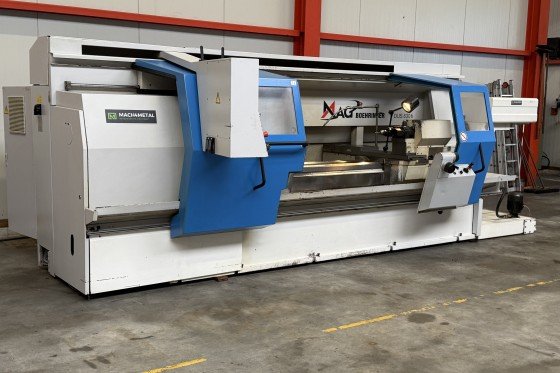

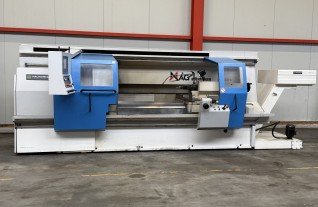

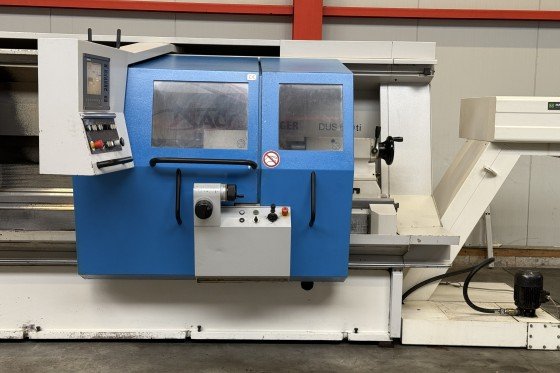

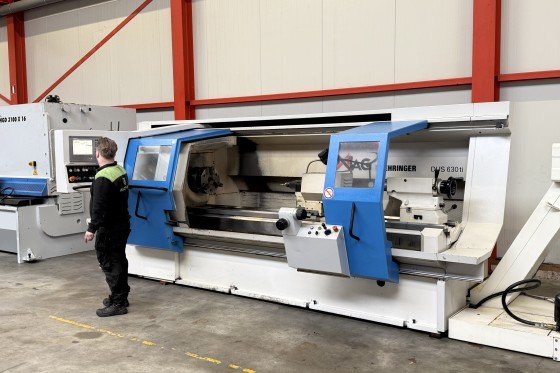

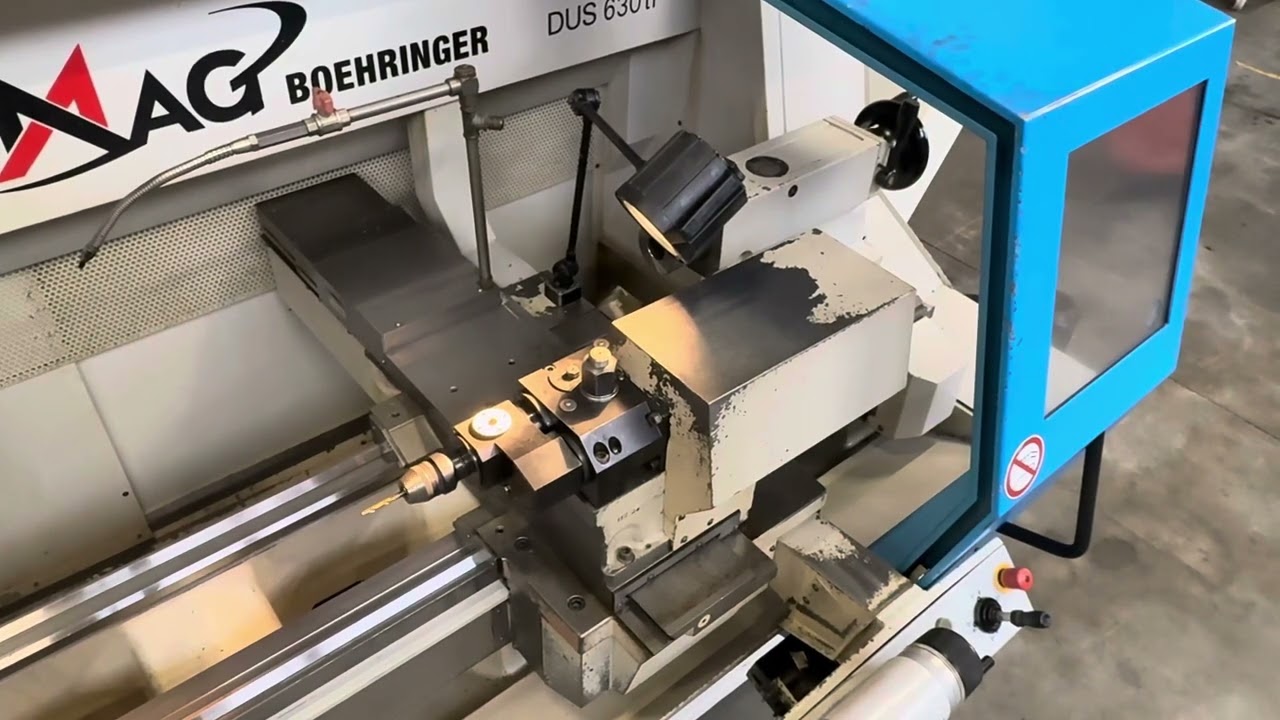

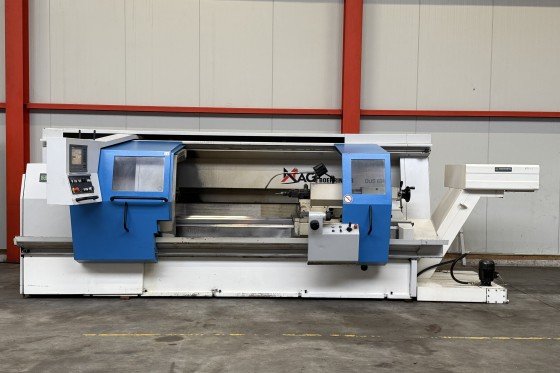

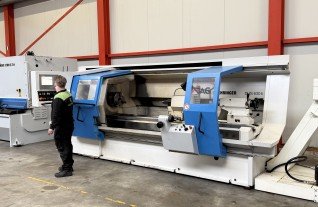

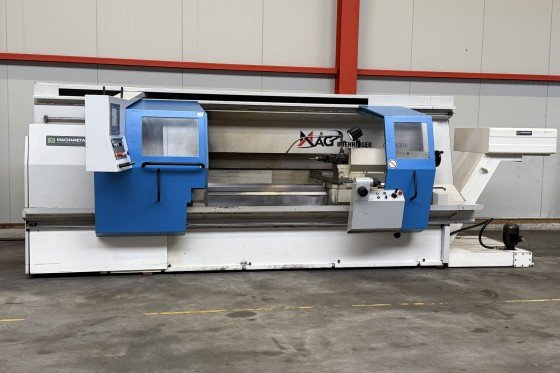

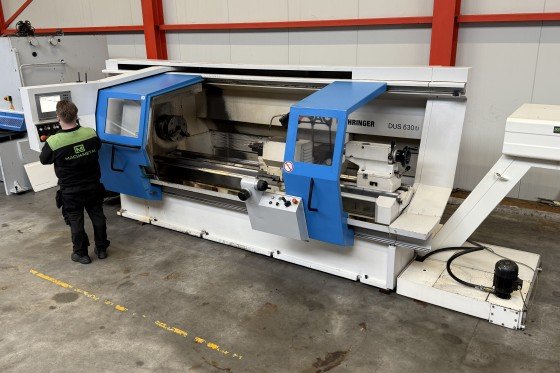

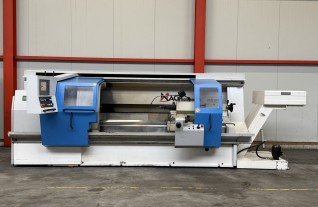

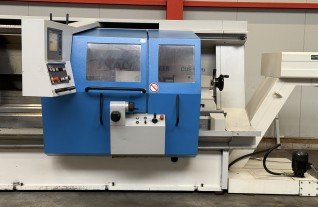

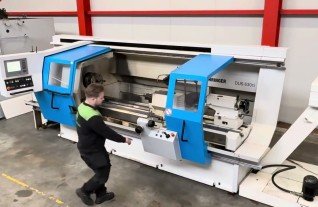

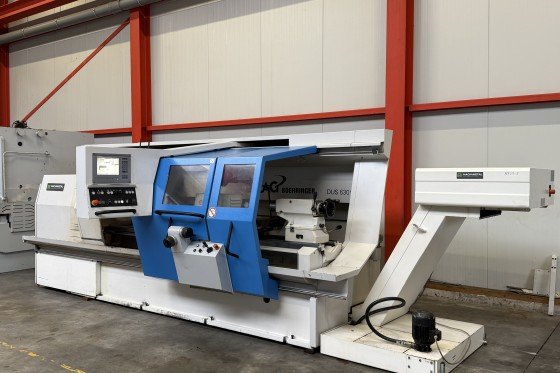

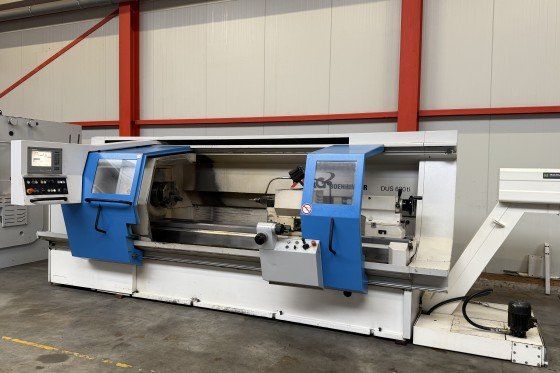

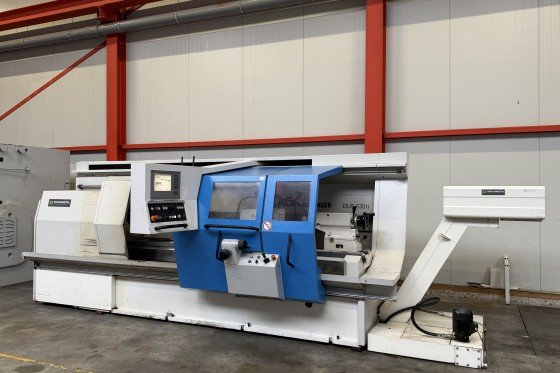

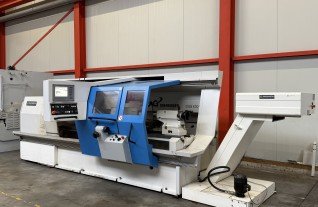

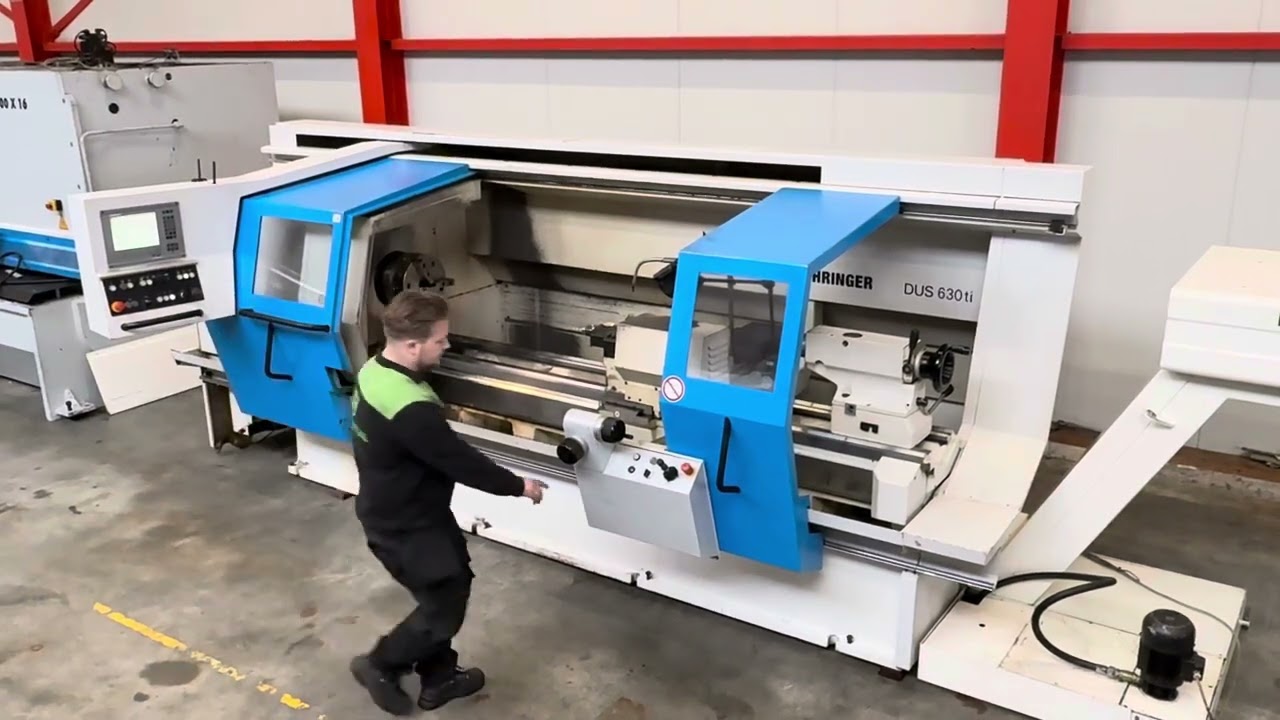

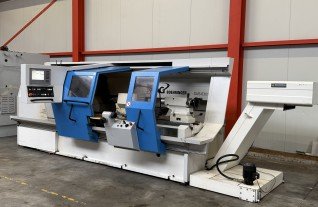

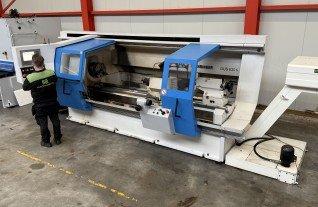

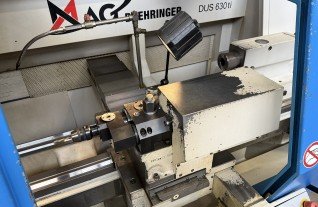

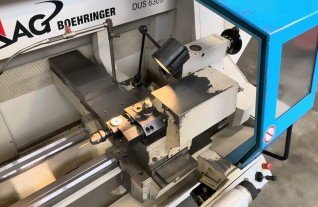

CNC Lathe with c-axis VDF BOEHRINGER - DUS 630 Ti

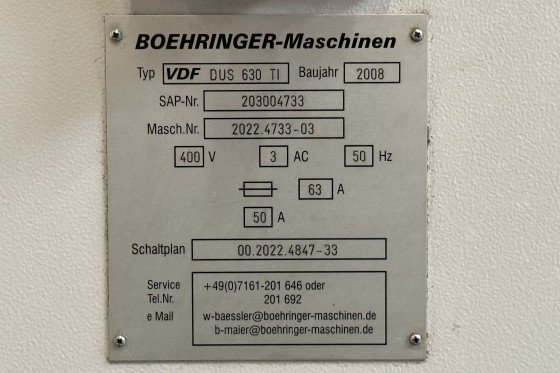

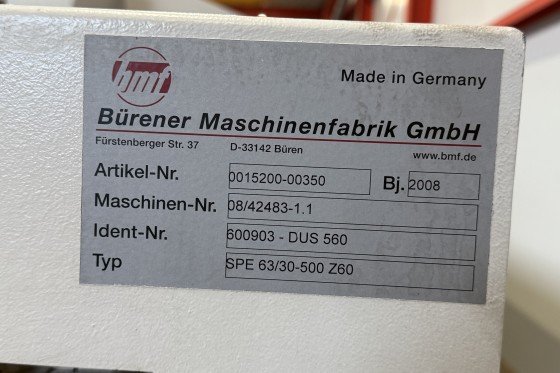

MACH-ID 9016| Make: | VDF BOEHRINGER |
| Type: | DUS 630 Ti |

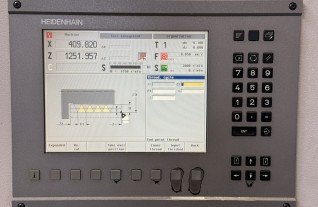

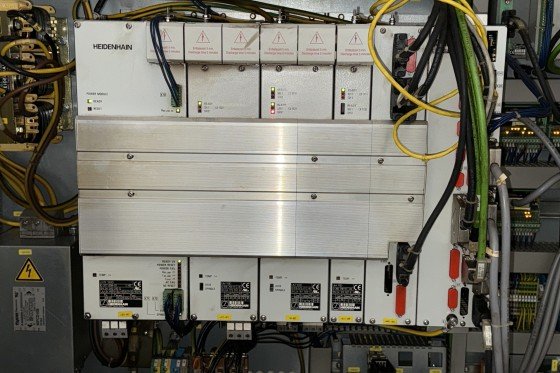

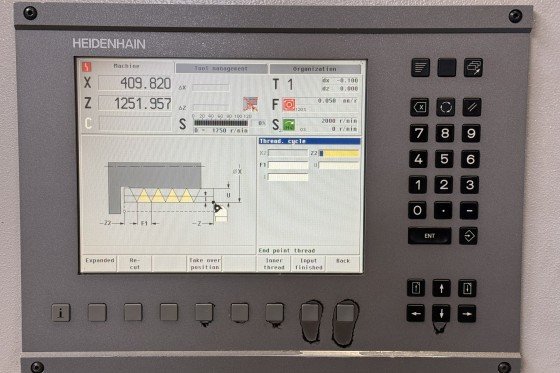

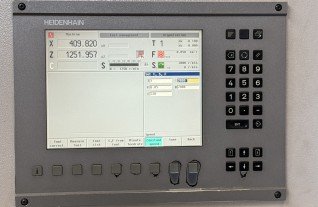

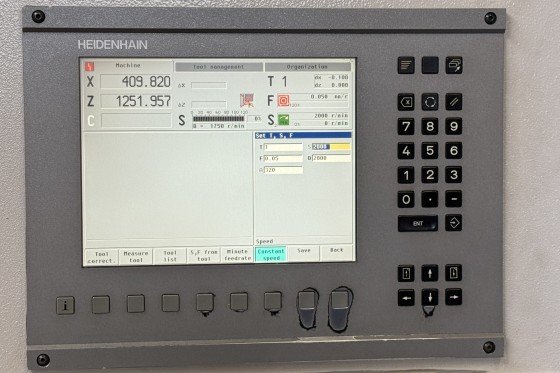

| Control: | HeidenHain Manual Plus |
| Year: | 2008 |

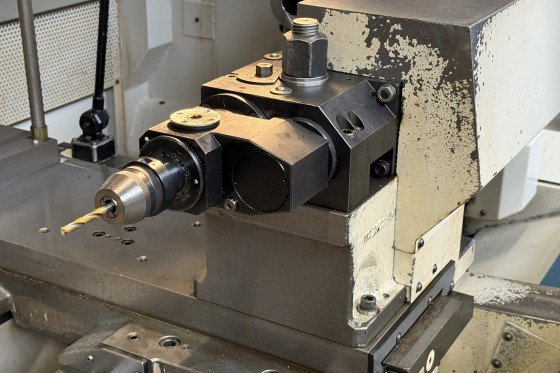

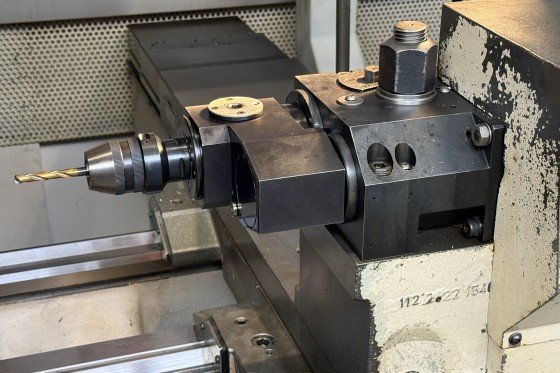

- Milling & Drilling support with live tools
- Full C-Axis
- CAPTO Tooling system
- Max. speed 2500 Rpm

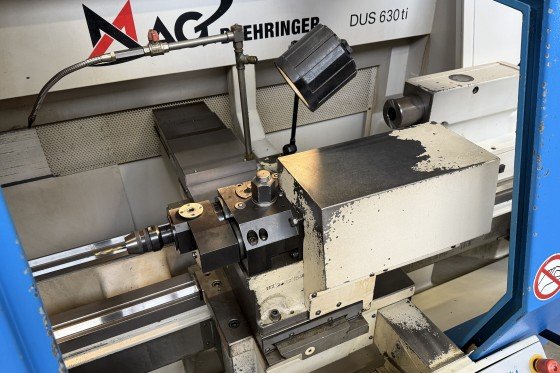

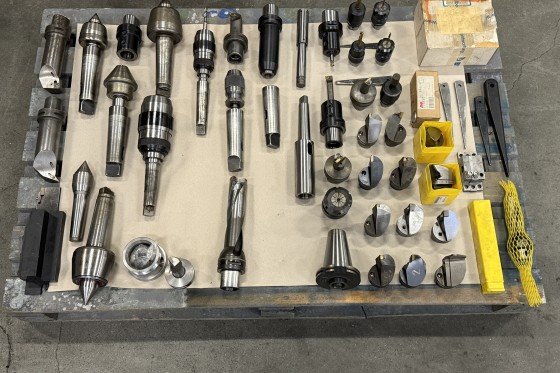

- Radial & Axial Tool holders

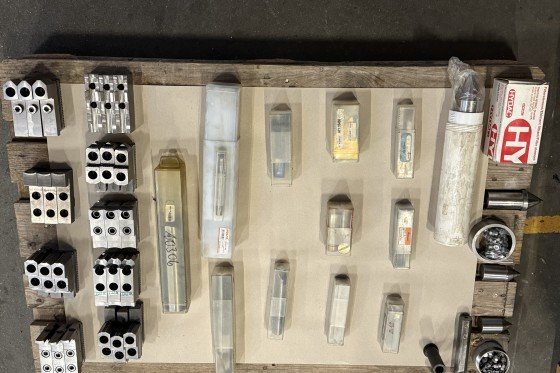

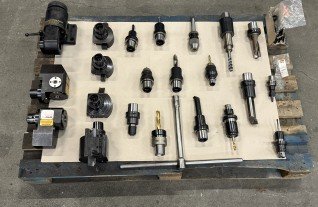

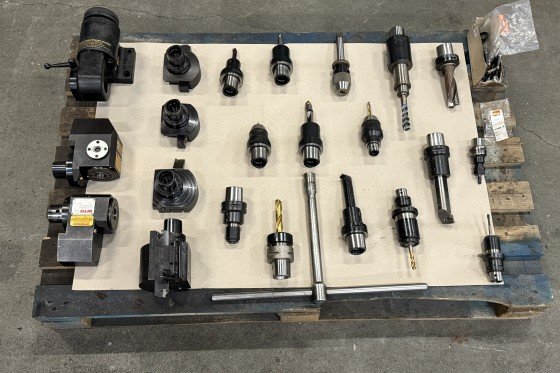

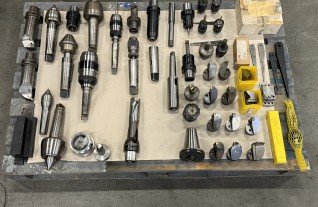

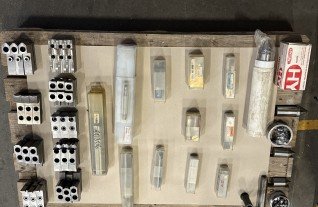

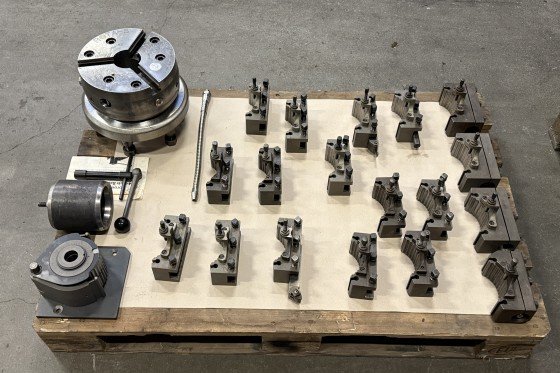

- CAPTO Tool holders paxckage over 20 units

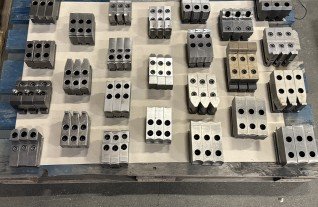

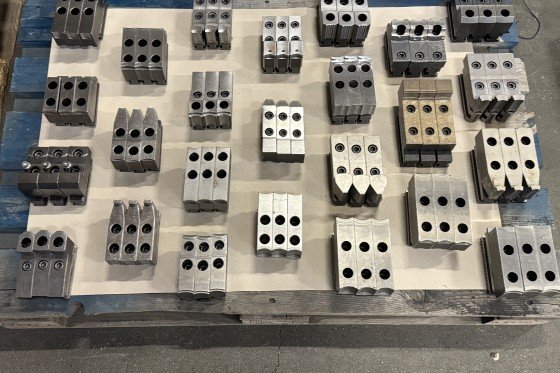

- Schunk ROTO-JET jaw set package over 20 units

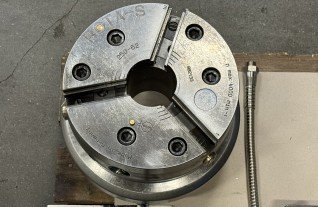

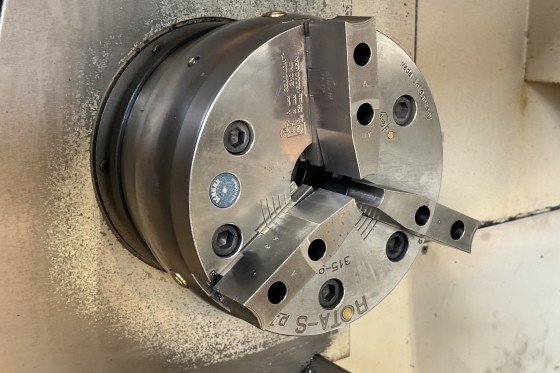

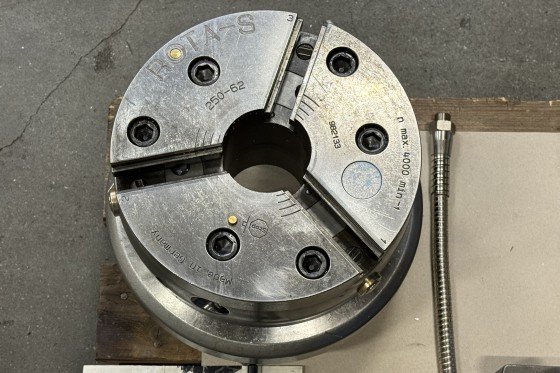

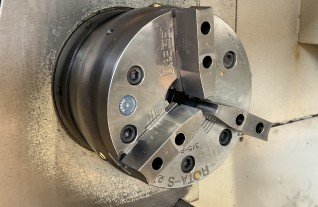

- Schunk ROTO-JET check 500/315

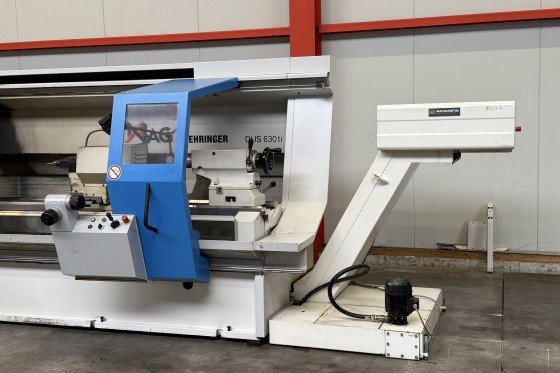

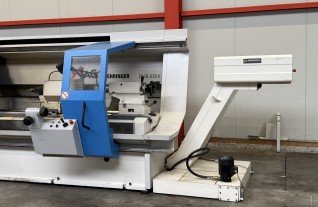

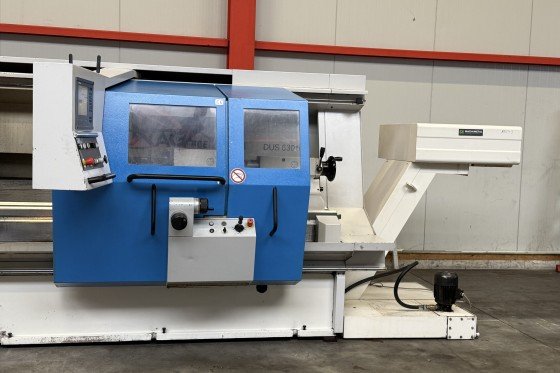

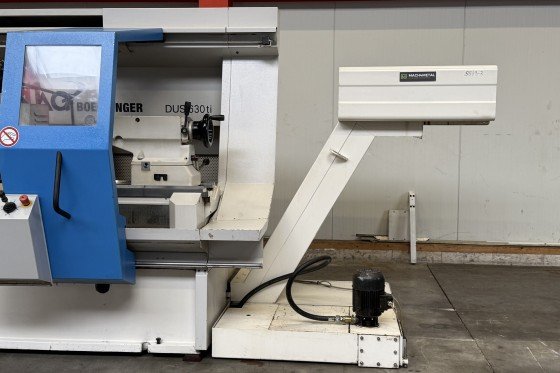

- Chip conveyor with coolant system
- Multi fix tool system with 10 inserts
Specifications
Swing over bed Ø
640 mm
25.197 inch
Swing over cross slide Ø
435 mm
17.126 inch
DBC Turning Length
2000 mm
78.74 inch
Spindle bore
62 mm
2.441 inch
Spindle power
25 kW
25 kW

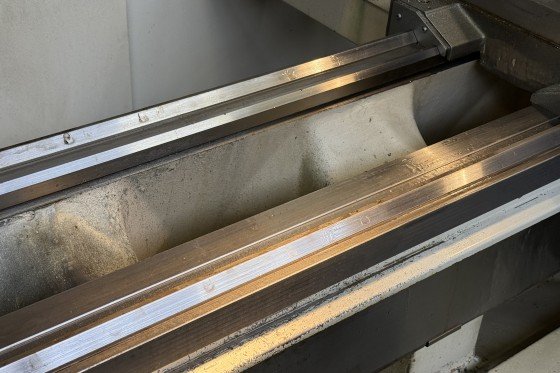

Bed width
360 mm
14.173 inch

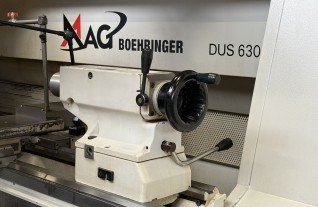

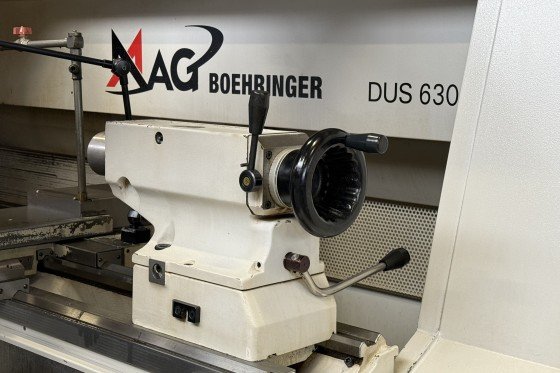

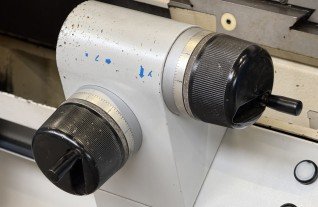

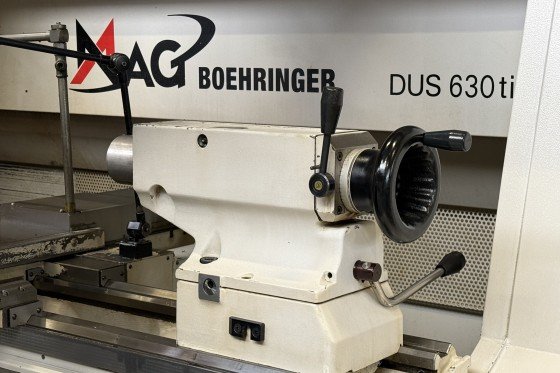

Tailstock spindle Ø
100 Ø
100 Ø
Stroke pinole
190 mm
7.48 inch
Spindle taper
5 Mk
5 Mk
Workpiece weight
1600
1600
Power
23 A
23 A
Speeds / ranges
2500 Rpm
2500 Rpm
Feed rate X-Axis
5000 mm/min.
5000 mm/min.
Feed rate Z-Axis
10000 mm/min.
10000 mm/min.
Dimensions (Estimate)
Length
4830 mm
190.157 inch
Width
2156 mm
84.882 inch
Height
2400 mm
94.488 inch
Weight
6800 kg
14998.2 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
